The Corrosion Failure Analysis of Plate Pipe for Plate Heat Exchanger

Wen Ming Song; Gui Rong Yang; Yuan Hao; Yu Fu Zhang

doi:10.4028/www.scientific.net/AMR.750-752.2252

Paper Titles

Phase Composition Analysis of Recycled MgO-C Ladle Lining Materials
p.2236

A Study on Suizhong 36-1 Oil Field Acid Sludge Formation Influence Factors
p.2240

Jet Blast Resistance Experiment of Engineered Material Arresting System
p.2244

QSPR Study on Gross Heat of Combustion of Nitro Aromatic Compounds Based on Genetic Algorithm
p.2248

The Corrosion Failure Analysis of Plate Pipe for Plate Heat Exchanger
p.2252

The Effect of Corrosion Inhibitor in Hydrofluoric Acid Medium
p.2258

The Study on the Dynamic Response Performance of PEMFC Stack with Electrodeposited Pt/C-RuO₂·xH₂O Electrode
p.2263

Calculation and Analysis of Multifractal Spectrum of Sinter Surface
p.2267

Two Temperature Model Numerical Simulation and Analysis of Thermal Transport Process in Copper Film
p.2271

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 750-752The Corrosion Failure Analysis of Plate Pipe for...

The Corrosion Failure Analysis of Plate Pipe for Plate Heat Exchanger

Abstract:

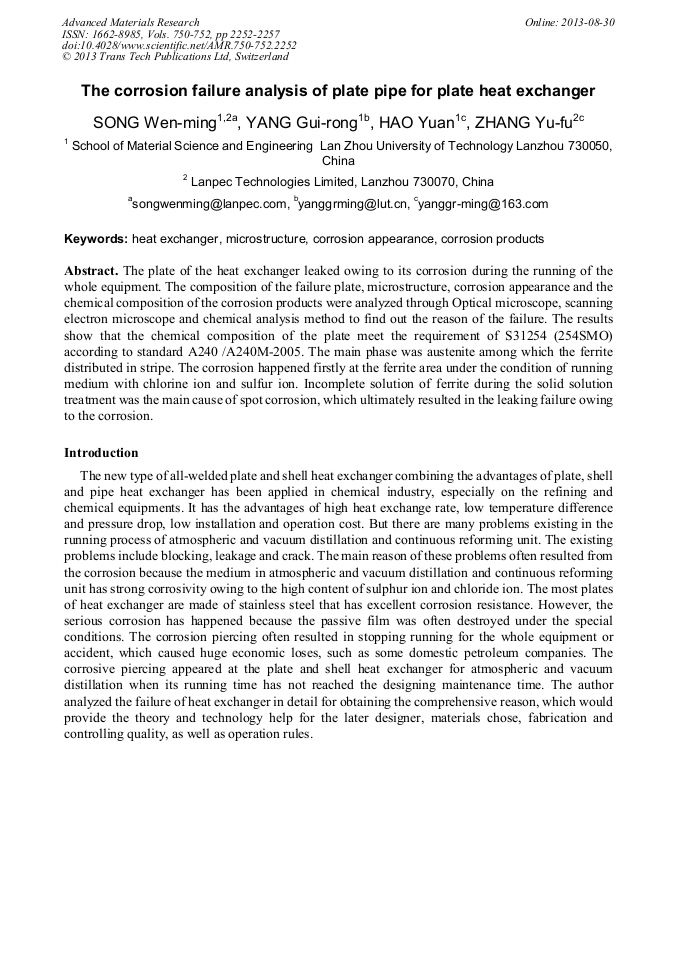

The plate of the heat exchanger leaked owing to its corrosion during the running of the whole equipment. The composition of the failure plate, microstructure, corrosion appearance and the chemical composition of the corrosion products were analyzed through Optical microscope, scanning electron microscope and chemical analysis method to find out the reason of the failure. The results show that the chemical composition of the plate meet the requirement of S31254 (254SMO) according to standard A240 /A240M-2005. The main phase was austenite among which the ferrite distributed in stripe. The corrosion happened firstly at the ferrite area under the condition of running medium with chlorine ion and sulfur ion. Incomplete solution of ferrite during the solid solution treatment was the main cause of spot corrosion, which ultimately resulted in the leaking failure owing to the corrosion.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 750-752)

Pages:

2252-2257

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.750-752.2252

Citation:

Cite this paper

Online since:

August 2013

Authors:

Wen Ming Song*, Gui Rong Yang, Yuan Hao, Yu Fu Zhang

Keywords:

Corrosion Appearance, Corrosion Products, Heat Exchanger, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] ZHANG Bao-hong, CONG Wen-bo, YANG Ping. Metal electrochemical corrosion and protection, Chemical Industry Press, Beijing, 2005. 134-138.

Google Scholar

[2] WANG Ke, ZHENG Zhen-tai, DONG Tian-shun. Welding technology, 2012, 41（4）: 4-9.

Google Scholar

[3] QIAN Song-wen. Handbook for designer of heat exchanger, Chemical Industry Press, Beijing, 2002, 187-190.

Google Scholar

[4] John C Lippold, Damian J Kotecki, welding metallurgy and welding of stainless steel, China Machine Press, Beijing, 2008, 56-59.

Google Scholar

[5] Seiji Katayama, Takuhiro Fujimoto, Akira Mataunawa, Correlation among solidification process, microsegregation and solidification cracking susceptibility in stainless steel weld metal, Transaction of JWRI, 1985, 14(1): 123-138.

Google Scholar

[6] Gusmano G. Montesperelli G., Forte G., On-line corrosion resistance tests in sea water for MED plants, Desalination, 2010, 183: 187-194.

DOI: 10.1016/j.desal.2005.02.048

Google Scholar

[7] Liu C T, Wu J K, Influence of pH on the passivation behavior of 254SMO stainless steel in 3. 5% NaCl solution, Corrosion Science, 2007, 49(2): 198-209.

DOI: 10.1016/j.corsci.2006.10.032

Google Scholar
