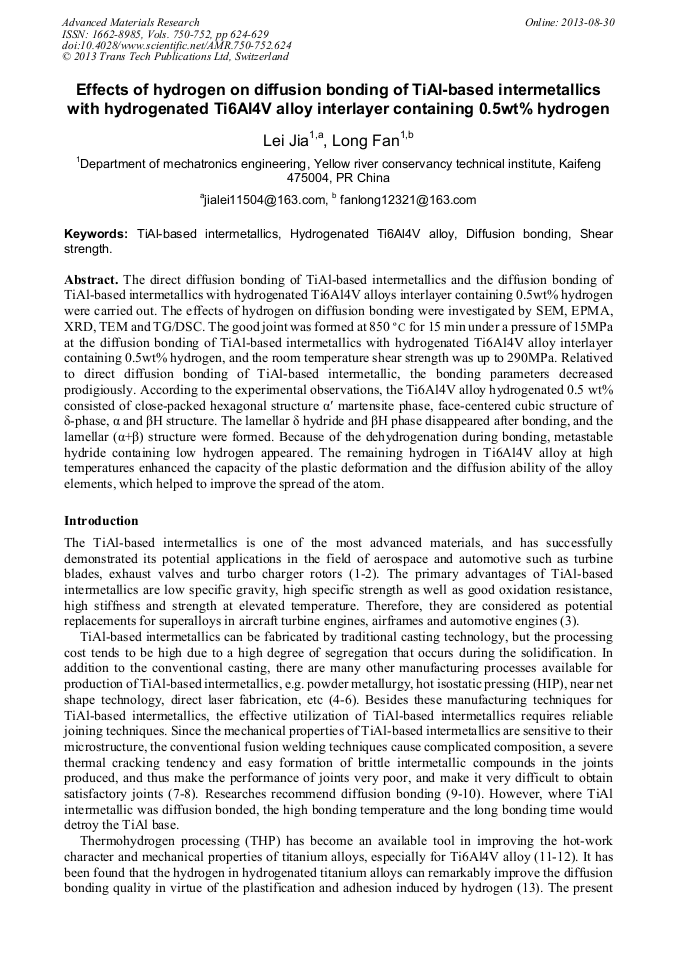

Effects of Hydrogen on Diffusion Bonding of TiAl-Based Intermetallics with Hydrogenated Ti6AI4V Alloy Interlayer Containing 0.5wt% Hydrogen

Abstract:

The direct diffusion bonding of TiAl-based intermetallics and the diffusion bonding of TiAl-based intermetallics with hydrogenated Ti6Al4V alloys interlayer containing 0.5wt% hydrogen were carried out. The effects of hydrogen on diffusion bonding were investigated by SEM, EPMA, XRD, TEM and TG/DSC. The good joint was formed at 850°C for 15 min under a pressure of 15MPa at the diffusion bonding of TiAl-based intermetallics with hydrogenated Ti6Al4V alloy interlayer containing 0.5wt% hydrogen, and the room temperature shear strength was up to 290MPa. Relatived to direct diffusion bonding of TiAl-based intermetallic, the bonding parameters decreased prodigiously. According to the experimental observations, the Ti6Al4V alloy hydrogenated 0.5 wt% consisted of close-packed hexagonal structure α′ martensite phase, face-centered cubic structure of δ-phase, α and βH structure. The lamellar δ hydride and βH phase disappeared after bonding, and the lamellar (α+β) structure were formed. Because of the dehydrogenation during bonding, metastable hydride containing low hydrogen appeared. The remaining hydrogen in Ti6Al4V alloy at high temperatures enhanced the capacity of the plastic deformation and the diffusion ability of the alloy elements, which helped to improve the spread of the atom.

• Periodical: Advanced Materials Research (Volumes 750-752)
• Pages: 624-629
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.750-752.624
• Online since: August 2013
• Authors: Lei Jia*, Long Fan
• Keywords: Diffusion Bonding, Hydrogenated Ti6Al4V Alloy, Shear Strength, TiAl-Based Intermetallics

References

[1] Chesnult J. C，Williams J.C. The Development of Intermetallic Compound. Metals and Materials. 1990, (6): p.509~511.

[2] Westbrook J.H., Fleischer R.L. Ti3Al and Its Alloys, Intermetallics compounds, Principles and Practice. Vol. 2. Chichester, John Wiley&Sons. 1995: p.91~131.

[3] Noda, T. Application of cast gamma TiAl for automobiles. Intermetallics. 1998(6), 12: pp.709-713.

DOI: 10.1016/s0966-9795(98)00060-0

[4] Narita Toshio, Izumi Takeshi, Yatagai Mamoru, Yoshioka Takayuki. Sulfidation processing and Cr addition to improve oxidation resistance of TiAl intermetallics in air at 1173 K. Intermetallics. 2000(8), 4: pp.371-379.

DOI: 10.1016/s0966-9795(99)00117-x

[5] Yang, J.B. Hot pressing of titanium aluminide from elemental powders. Metal Powder Report 1997(52), 12: p.42.

DOI: 10.1016/s0026-0657(97)88765-6

[6] Medda, E.; Delogu, F.; Cao, G. Combination of mechanochemical activation and self-propagating behaviour for the synthesis of Ti aluminides. Materials Science and Engineering: A. 2003(361), 11: pp.23-28.

DOI: 10.1016/s0921-5093(03)00566-5

[7] David S. A, Horton J. A, Goodwin G. M, Phillips D. H and Reed R.W. Weldability and Microstructure of a Titanium Aluminide. Welding Journal Research Supplement. 1990, (4): p133s~140s.

[8] Threadgill P. L. and Baeslack Ⅲ W. A. Metallurgical Aspects of Joining Titanium Aluminide Alloys. Proceedings International Symposium on Intermetallic Compounds, Sendai, Japan, June 17-20 1991: p.1021~1025.

[9] Peng He, Jicai Feng, Yiyu Qian. Interface microstructure and formation mechanism of diffusion-bonded joints of TiAl to steel 40Cr. Transactions of Nonferrous Metals Society of China. 2002, 12(6): pp.1069-1071.

[10] Ridley N, Livesey D.W., and Salehi M.T. Superplastic Behavior and Diffusion Bonding of a Titanium Aluminide Alloy. Proceedings International Conference on High Temperature Intermetallics, London, 30th April-1st May 1991: p.198~200.

[11] F. H. Froes, O. N. Senkov, J. I. Qazi. Hydrogen as a Temporary Alloying Element in Titanium Alloys: Thermohydrogen Processing. International Materials Reviews. 2004, 49(3-4): 227~245.

DOI: 10.1179/095066004225010550

[12] F. H. Froes, O. N. Senkov, J. I. Qazi. Hydrogen as a Temporary Alloying Element in Titanium Alloys: Thermohydrogen Processing. International Materials Reviews. 2004, 49(3-4): 227~245.

DOI: 10.1179/095066004225010550

[13] J. I. Qazi, J. Rahim, O. N. Senkov, F. H. Froes. Phase Transformations in the Ti-6Al-4V-H System. Journal of the Minerals Metals and Materials Society. 2002, 54(2): 68~71.

DOI: 10.1007/bf02701081

[14] H. Liu, J. Cao, P. He, J.C. Feng. Effect of hydrogen on diffusion bonding of commercially pure titanium and hydrogenated Ti6Al4V alloys. International journal of hydrogen energy 2009, 34: 1108–1113.

DOI: 10.1016/j.ijhydene.2008.10.071
