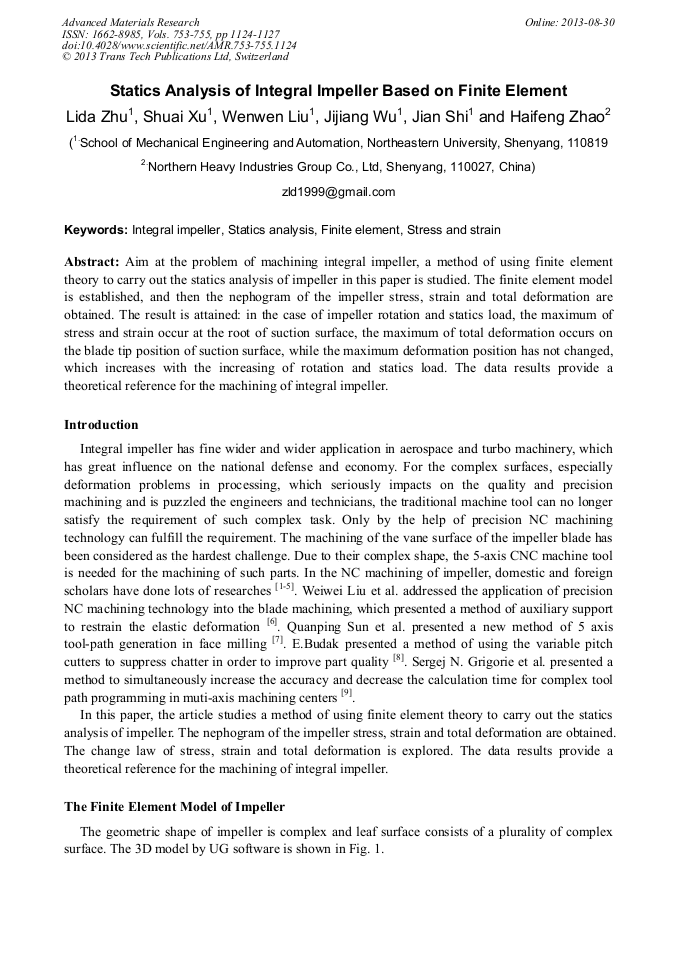

Statics Analysis of Integral Impeller Based on Finite Element

Abstract:

Aim at the problem of machining integral impeller, a method of using finite element theory to carry out the statics analysis of impeller in this paper is studied. The finite element model is established, and then the nephogram of the impeller stress, strain and total deformation are obtained. The result is attained: in the case of impeller rotation and statics load, the maximum of stress and strain occur at the root of suction surface, the maximum of total deformation occurs on the blade tip position of suction surface, while the maximum deformation position has not changed, which increases with the increasing of rotation and statics load. The data results provide a theoretical reference for the machining of integral impeller.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 1124-1127
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.1124
• Online since: August 2013
• Authors: Li Da Zhu, Shuai Xu, Wen Wen Liu, Ji Jiang Wu, Jian Shi, Hai Feng Zhao
• Keywords: Finite Element, Integral Impeller, Static Analysis, Stress and Strain

References

[1] Guimu Zhang, Chao Yu, Shirong Chen, et al. Experimental study on the milling of thin part of titanium alloy(TC4)[J]. Journal of Materials Processing Technology, 2003, 138(1): 489-493.

DOI: 10.1016/s0924-0136(03)00126-2

[2] S. Ratchew, S. Nikov, I. Moualek. Material removal simulation of peripheral milling of thin wall low-rigidity structures using FEA [J]. Advances in Engineering Software, 2004, 35(8-9): 481-491.

DOI: 10.1016/j.advengsoft.2004.06.011

[3] Lianyu Zheng, Shuchun Wang. Approaches to Improve the Process Quality of Thin-walled Workpiece in NC Machining [J]. Acta Aeronautica Et Astronautica Sinica, 2001, 22(5): 424-428.

[4] Hsin-Pao Chen, Hsin-Hung Kuo, Der-Min Tsay, Removing Tool Marks of Blade Surfaces by Smoothing Five-axis Point Milling Cutter Paths [J], Journal of Materials Processing Technology, 2009(209): 5810-5817.

DOI: 10.1016/j.jmatprotec.2009.06.016

[5] Liu Huran, Computer aided simulation machining programming in 5-axis NC milling of Impeller Leaf [J]. Physics procedia, 2012(25)1457-1462.

DOI: 10.1016/j.phpro.2012.03.262

[6] Weiwei Liu, Dinghua Zhang, Yaoyao Shi et al. Study on Net-Shape NC Machining Technology of Thin-Blade of Aeroengine[J]. Mechinical Science and Technology. 2004, 23（3）: 329-331.

[7] Quanping Sun, Wenhe Liao, Ning He. Five-Axis High Speed Milling Toolpath Calculation for Impeller Channel [J]. Journal of Nanjing University of Aeronautics & Astronautics, 2006，38（5）：639-343.

[8] E. Budak. Improving Productivity and Part Quality in Milling of Titanium Based Impellers by Chatter Suppression and Force Control [J]. Annals of the CIRP, 2000, 49(1): 31-36.

DOI: 10.1016/s0007-8506(07)62890-x

[9] Se´bastien Seguy_, Gilles Dessein, Lionel Arnaud. Surface Roughness Variation of Thin Wall Milling, Related to Modal Interactions [J]. Machine Tools & Manufacture 48 (2008) 261–274.

DOI: 10.1016/j.ijmachtools.2007.09.005

[10] C. H Li, Z R Liu. Analytical and Experimental Investigation into Material Removal Mechanism of Abrasive Jet Precision Finishing with Grinding Wheel as Restraint[J]. Int.J. Machining and Machinability of Materials, Vol. 12, No. 3, 2012, 266-279.

DOI: 10.1504/ijmmm.2012.049259
