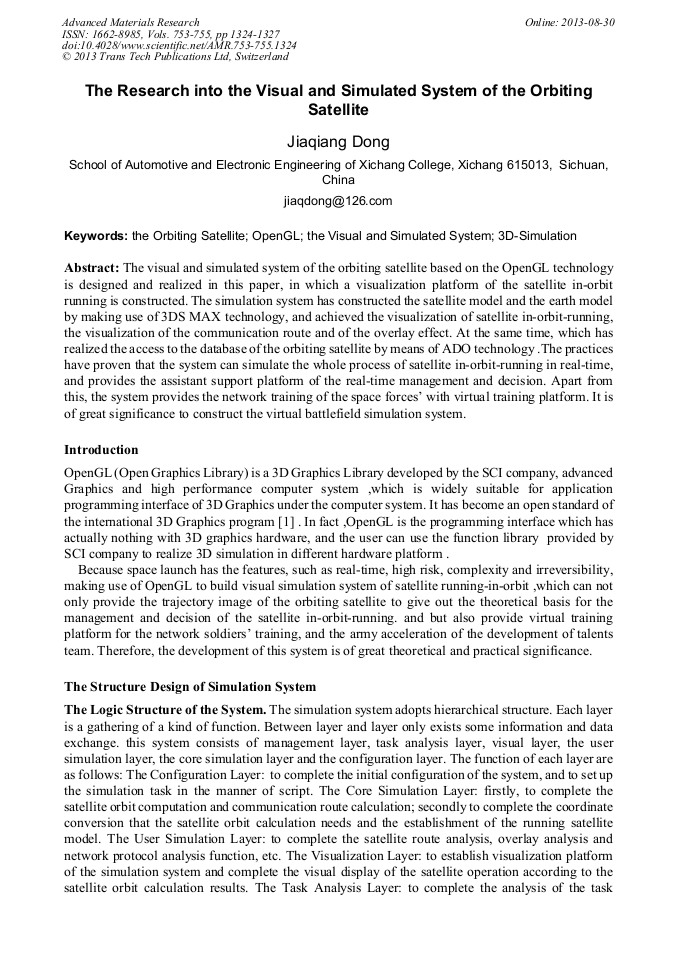

The Research into the Visual and Simulated System of the Orbiting Satellite

Abstract:

The visual and simulated system of the orbiting satellite based on the OpenGL technology is designed and realized in this paper, in which a visualization platform of the satellite in-orbit running is constructed. The simulation system has constructed the satellite model and the earth model by making use of 3DS MAX technology, and achieved the visualization of satellite in-orbit-running, the visualization of the communication route and of the overlay effect. At the same time, which has realized the access to the database of the orbiting satellite by means of ADO technology .The practices have proven that the system can simulate the whole process of satellite in-orbit-running in real-time, and provides the assistant support platform of the real-time management and decision. Apart from this, the system provides the network training of the space forces with virtual training platform. It is of great significance to construct the virtual battlefield simulation system.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 1324-1327
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.1324
• Online since: August 2013
• Authors: Jia Qiang Dong
• Keywords: 3D Simulation, OpenGL, Orbiting Satellite, Visual and Simulated System

References

[1] Bo Sun, OpenGL Programming Instance Learning Course [M](Beijing: Peking University Press, 2010) 60-61.

[2] Liping Zhai, The Research and Implementation of Virtual Reality Three-dimensional Modeling Technology based on MultiGen [D](Master Thesis of Chongqing University, 2005) 27-29.

[3] Ana Rodríguez-Hernández, Michael T Lawton, Anatomical triangles defining surgical routes to posterior inferior cerebellar artery aneurysms, [J], Journal of neurosurgery, (2011 (4)1088-94.

DOI: 10.3171/2010.8.jns10759

[4] Lei Shu, Hsiao-Hwa Chen, Takahiro Hara, Der-Jiunn Deng, Lei Wang, Guest Editorial, [J], Journal of Communications (2011(6)421-424.

[5] Y. Takayama, M. Toyoshima, N. Kura, Estimation of Accessible Probability in a Low Earth Orbit Satellite to Ground Laser Communications, [J], Radio Engineering(2010(2).
