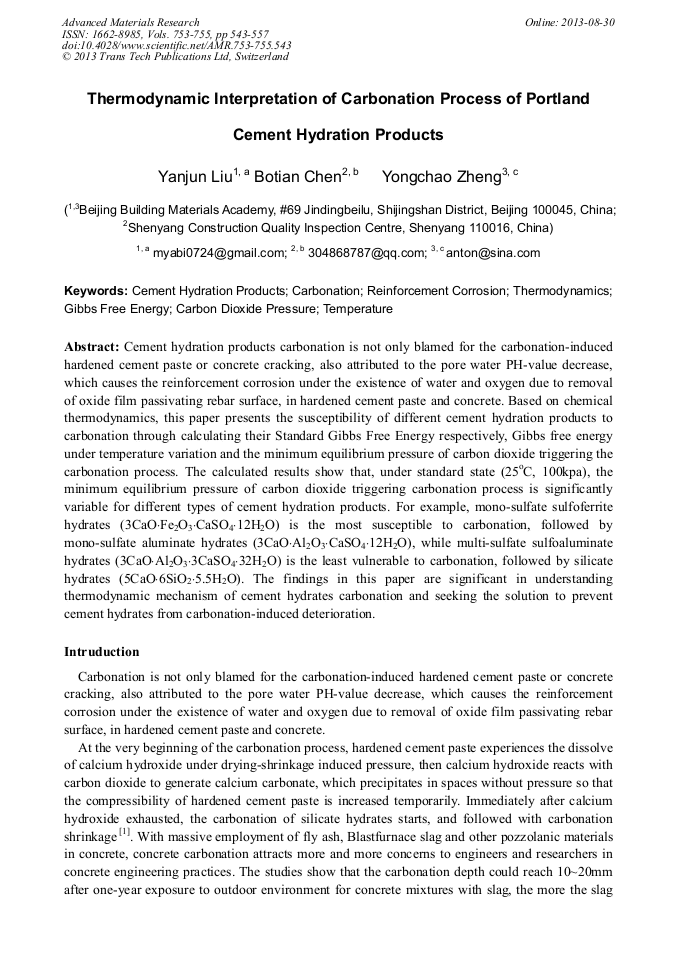

Thermodynamic Interpretation of Carbonation Process of Portland Cement Hydration Products

Abstract:

Cement hydration products carbonation is not only blamed for the carbonation-induced hardened cement paste or concrete cracking, also attributed to the pore water PH-value decrease, which causes the reinforcement corrosion under the existence of water and oxygen due to removal of oxide film passivating rebar surface, in hardened cement paste and concrete. Based on chemical thermodynamics, this paper presents the susceptibility of different cement hydration products to carbonation through calculating their Standard Gibbs Free Energy respectively, Gibbs free energy under temperature variation and the minimum equilibrium pressure of carbon dioxide triggering the carbonation process. The calculated results show that, under standard state (25°C, 100kpa), the minimum equilibrium pressure of carbon dioxide triggering carbonation process is significantly variable for different types of cement hydration products. For example, mono-sulfate sulfoferrite hydrates (3CaOFe₂O₃CaSO₄12H₂O) is the most susceptible to carbonation, followed by mono-sulfate aluminate hydrates (3CaOAl₂O₃CaSO₄12H₂O), while multi-sulfate sulfoaluminate hydrates (3CaOAl₂O₃3CaSO₄32H₂O) is the least vulnerable to carbonation, followed by silicate hydrates (5CaO6SiO₂5.5H₂O). The findings in this paper are significant in understanding thermodynamic mechanism of cement hydrates carbonation and seeking the solution to prevent cement hydrates from carbonation-induced deterioration.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 543-557
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.543
• Online since: August 2013
• Authors: Yan Jun Liu, Bo Tian Chen, Yong Chao Zheng
• Keywords: Carbon Dioxide Pressure, Carbonation, Cement Hydration Products, Gibbs Free Energy, Reinforcement Corrosion, Temperature, Thermodynamic

References

[1] Y.F. Houst, Influence of Shrinkage on Carbonation Shrinkage Kinetics of Hydrated Cement Paste, in Creep and Shrinkage of Concrete, Eds. Z. P. Bažant and I. Carol, Proc. 5th Int. RILEM Symp, Barcelona, pp.121-6, E&FN Spon, London, (1993).

DOI: 10.1007/bf02473431

[2] G. J Osborne, Carbonation of Blastfurnace Slag Cement Concretes, Durability of Building Materials, 4, pp.81-96, Elsevier Science, Amsterdam, (1986).

[3] K. Horiguchi et al. , The Rate of Carbonation in Concrete Made with Blended Cement, in Durability of Concrete, ACI SP-145, pp.917-31, Detroit Michigan, (1994).

DOI: 10.14359/4420

[4] A. Meyer, Investigations on the Carbonation of Concrete, Proceedings of 5th International Symposium on the Chemistry of Cement, Tokyo, Vol. 3, pp.394-401, (1968).

[5] H. -J. Wierig, Longtime Studies on the Carbonation of Concrete under Normal Outdoor Exposure, RILEM Symposium on Durability of Concrete under Normal Outdoor Exposure, Hanover, pp.182-96, March (1984).

DOI: 10.1007/bf02473367

[6] G. J. Verbeck, Carbonation of Hydrated Portland Cement, ASTM. Sp. Tech. Publ. No. 205, pp.17-36, (1958).

[7] J. J. Shideler, Investigation of the Moisture-volume Stability of Concrete Masonry Units, Portland Cement Association. Development Bulletin.D. 3, March (1955).

[8] V. G. Papadakis, M. N. Fardis and C. G. Vayenas, Effect of Composition, Environmental Factors and Cement-lime Mortar Coating on Concrete Carbonation, Materials and Structures, 25, No. 149, pp.293-304, (1992).

DOI: 10.1007/bf02472670

[9] P. Schubert and K. Wesche, Eihfluss Der Karbonatisierung auf Die Eigenshaften Von Zementmörteln, Research Report No. F16, 28pp, Institut für Bauforschung BWTH Aachen, Nov. (1974).

[10] Peter C. Hewlett, Lea's chemistry of cement and concrete, 4th edition, (2010).

[11] Th. A. Bier, Influence of Type of Cement and Curing on Carbonation Process and Pore Structure of Hydrated Cement Paste, Materials Research Society Symposium, 85, pp.123-34, (1987).

DOI: 10.1557/proc-85-123

[12] Mchedlow-Petrosyan OP, Babushkin VI. Doklady Akad Nauk SSSR 128/2, (1959).

[13] V. I. Babushkin, G. M. Matveyyev, O. P. Mchedlov-Petrossyan. Thermo-dynamics of Silicates. Springer-verlag, (1985).

[14] Khoutepen SD, Steyn GN. The Enthalpy of Formation and Dehydration of Calcium Hydroaluminates with Univalent Anions. The VIth International Congress on the Chemistry of Cement, Vol 2, book I. Moscow, Stroyizdat, pp.17-25, (1976).

[15] Babushkin VI, Kolomatskiy NS. Calcium Aluminate Hydration. Trudy Kubanskogo Politekhnicheskogo Instituta. Krasnodar, (1979).

[16] Naumov GB, Ryzhenko BN, Khodakovskiy IL. A handbook of Thermodynamic Values for Geologists. Moscow, Atomizdat, (1971).

[17] Rossini FD et al. Selected Values of Chemical Thermodynamic Properties. Circular of the National Bureau of Standards 500, Washington, (1952).

[18] Shibanov YV, Chukhlantsev VG. Forschungsber Wirtsch-und Verkehrsmin Nord-rhein-Westfalen 515/110, (1958).

[19] Vise S, Margave JR, Feder HM, Hubbard I. Journal of Physico-chemistry 66: 380, (1962).

[20] Wagman DD et al. Selected Values of Chemical Thermodynamic Properties, NBS, Technical Note 270-273; 270-274; 270-275; 270-277; 270-277, 1968, 1969, 1971, 1971, (1973).

DOI: 10.1016/b978-0-12-437250-4.50032-4

[21] Mel'nik YP. Thermodynamic Constants for Analyzing the Conditions of the Formation of Iron Ores, A Handbook. Kiev, Naukova Dumka, (1972).
