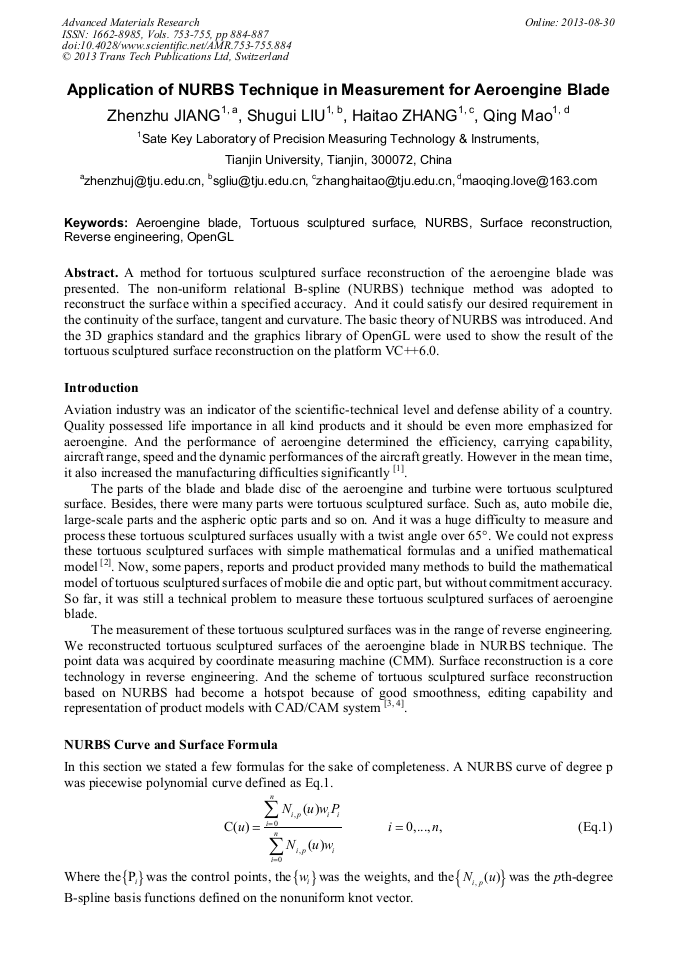

Application of NURBS Technique in Measurement for Aeroengine Blade

Abstract:

A method for tortuous sculptured surface reconstruction of the aeroengine blade was presented. The non-uniform relational B-spline (NURBS) technique method was adopted to reconstruct the surface within a specified accuracy. And it could satisfy our desired requirement in the continuity of the surface, tangent and curvature. The basic theory of NURBS was introduced. And the 3D graphics standard and the graphics library of OpenGL were used to show the result of the tortuous sculptured surface reconstruction on the platform VC++6.0.

• Periodical: Advanced Materials Research (Volumes 753-755)
• Pages: 884-887
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.753-755.884
• Online since: August 2013
• Authors: Zhen Zhu Jiang, Shu Gui Liu, Hai Tao Zhang, Qing Mao
• Keywords: Aeroengine Blade, NURBS, OpenGL, Reverse Engineering (RE), Surface Reconstruction, Tortuous Sculptured Surface

References

[1] Xiaojun Lin, Chenwei Shan, Zengqiang Wang. Computer Integrated Manufacturing System. 2012, 1(18): 125-131. (in Chinese).

[2] Gang Wang, Wansheng Zhao, Shichun Di. Journal of Harbin Institute of Technology. 1999, 5(31): 94-97. (in Chinese).

[3] Les Piegl. Wayne Tiller. Visual Computer. 2000, 16: 386-395.

[4] Fazhong Shi. CASD & NURBS. Higher Education Press, 2001(in Chinese).

[5] Les Piegl. Wayne Tiller. The NURBS Book (Second Edition). Springer-Verlag Press, (1997).

[6] Liyan Zhang, Laishui Zhou, Weibin Cai, Rurong Zhou. Journal of Applied Sciences. 2002, 2(20): 173-177. (in Chinese).

[7] Dave Shreiner. OpenGL Programming Guide, (fifth edition). China Machine Press, (2006).
