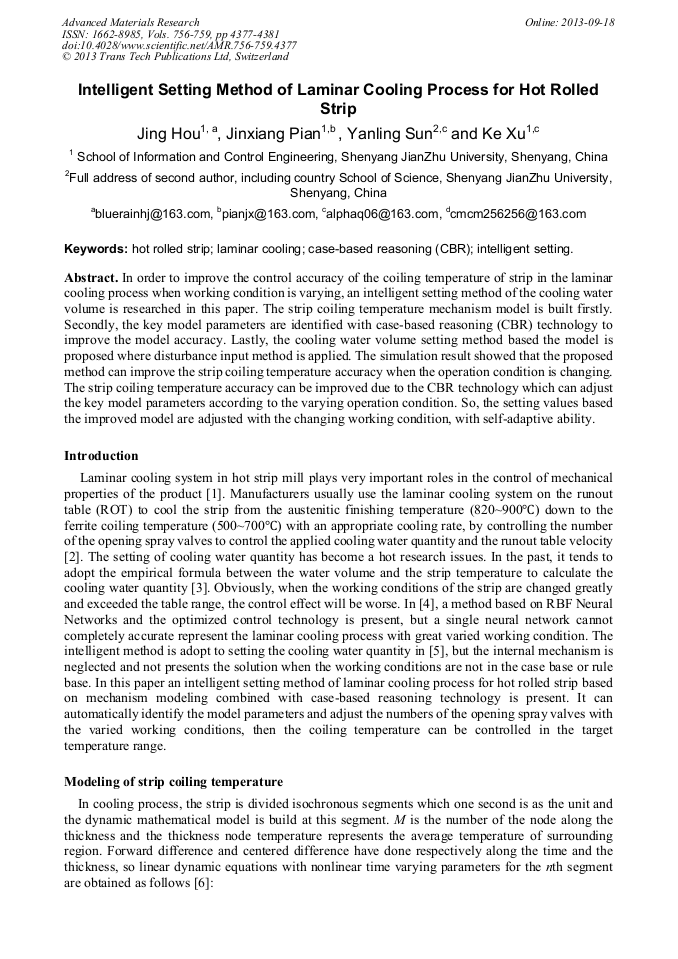

Intelligent Setting Method of Laminar Cooling Process for Hot Rolled Strip

Abstract:

In order to improve the control accuracy of the coiling temperature of strip in the laminar cooling process when working condition is varying, an intelligent setting method of the cooling water volume is researched in this paper. The strip coiling temperature mechanism model is built firstly. Secondly, the key model parameters are identified with case-based reasoning (CBR) technology to improve the model accuracy. Lastly, the cooling water volume setting method based the model is proposed where disturbance input method is applied. The simulation result showed that the proposed method can improve the strip coiling temperature accuracy when the operation condition is changing. The strip coiling temperature accuracy can be improved due to the CBR technology which can adjust the key model parameters according to the varying operation condition. So, the setting values based the improved model are adjusted with the changing working condition, with self-adaptive ability.

• Periodical: Advanced Materials Research (Volumes 756-759)
• Pages: 4377-4381
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.756-759.4377
• Online since: September 2013
• Authors: Jing Hou, Jin Xiang Pian, Yan Ling Sun, Ke Xu
• Keywords: Case-Based Reasoning (CBR), Hot Rolled Strip, Intelligent Setting, Laminar Cooling

References

[1] K. Yahiro, J. Yamasaki and M. Furukawa et al., Development of Coiling Temperature Control System on Hot Strip Mill, Lawasaki Steel Technical Report, 1991, 24, p.32–40.

[2] J. X. Pian, J. J. Li and J. Hou, Research on intelligent optimization control method and application,. EMEIT, 2011, pp.4149-4153.

[3] G. van Ditzhuijzen. The controlled cooling of hot rolled strip: A combination ofphysical modeling, control problems and practical adaption,. IEEE Transactions on Automatic Control, 1993, 38(7), pp.1060-1065.

DOI: 10.1109/9.231460

[4] T. Y. Chai and X. B. Wang. Application of rbf neural networks in control system of the slab accelerating cooling process,. Acta Automatica Sinica, 2000, 26(2), pp.219-225.

[5] S. P. Guan, H. X. Li and S. K. Tso. Multivariable fuzzy supervisory control for the laminar cooling process of hot rolled slab,. IEEE Trans. on control technology, 2001, 9(2), pp.348-356.

DOI: 10.1109/87.911386

[6] J.X. Pian, T. Y. Chai and Wang H., et al., Hybrid intelligent forecasting method of the laminar cooling process for hot strip,. American Control Conference, 2007, pp.4866-4871.

DOI: 10.1109/acc.2007.4282188

[7] R. M. Guo, S. T. Hwang. Investigation of strip cooling behavior in the run-out section of hot strip mill,. J. Mater. Processing Manufacturing Sci., 1996, 4(4), pp.339-351.
