Numerical Study on Aerodynamic Design of Hypersonic Vehicle Forebody

Abstract:

The lift forebody configuration of a small hypersonic vehicle is designed by using the wedge angle method in this paper. The lift forebody created has been optimized by the simplex method with a penalty function. The aerodynamic characteristics of the forebody optimized are investigated by numerical method. The research results show that the wedge angle method is a high efficient way to generate the lift forebody of the hypersonic vehicle; On the design mach number, there is pressure leaking between the upper and lower surface of lift forebody, which leads to lateral flow in the spanwise on the precompression plane, and which create the unhomogeneity of inlet flow field; Adding side skirts on the both sides, which can reduce the lateral flow on the forebody's precompression plane, it can raise the forebody lift.

You might also be interested in these eBooks

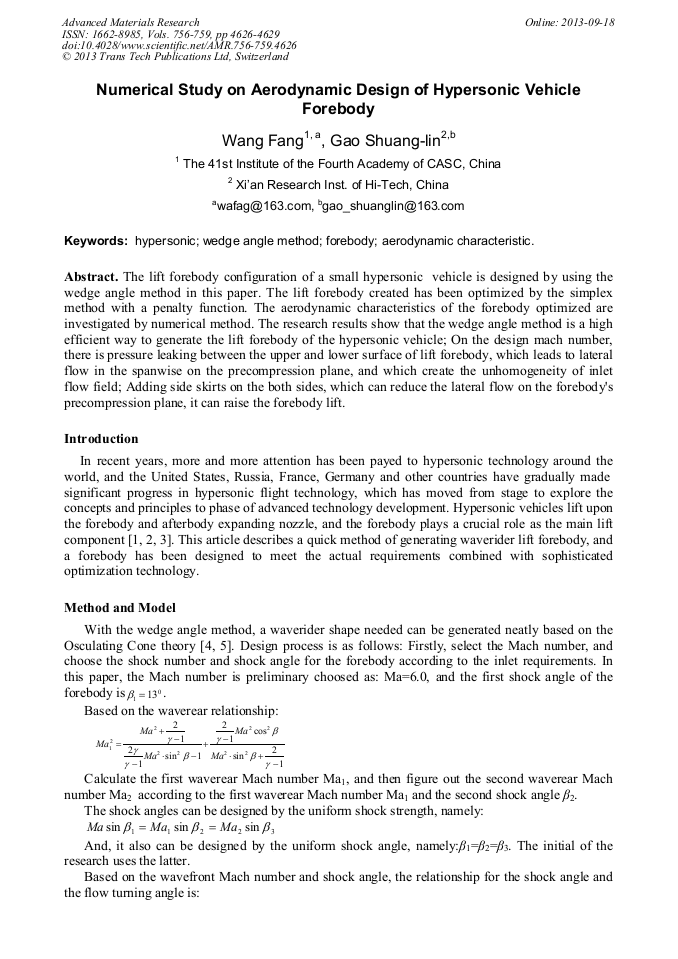

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 756-759)

Pages:

4626-4629

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.756-759.4626

Citation:

Cite this paper

Online since:

September 2013

Authors:

Fang Wang, Shuang Lin Gao

Keywords:

Aerodynamic Characteristic, Forebody, Hypersonic, Wedge Angle Method

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hampton, Research in Hypersonic Airbreathing Propulsion at the NASA Langley Research Center, NASA-TM-2002-0011. (2002).

Google Scholar

[2] Andrew Clark, Development of an Airframe-Propulsion Integrated Generic Hypersonic Vehicle Model, AIAA 2006-218.

Google Scholar

[3] Manuel D. Salas, A Review of Hypersonics Aerodynamics, Aerothermodynamics and Plasmadynamics Activities within NASA's Fundamental Aeronautics Program, AIAA 2007-4264.

DOI: 10.2514/6.2007-4264

Google Scholar

[4] Ryan P. Starkey, Mark J. Lewis, A Simple Analytical Model for Parameteric Studies of Hypersonic Waveriders, AIAA 98-1616.

Google Scholar

[5] Ryan P. Starkey, Mark J. Lewis, Analytical Off-Design L/D Analysis for Hypersonic Waveriders with Planar Shocks, AIAA 99-3205.

DOI: 10.2514/6.1999-3205

Google Scholar

[6] Xiao H, Configuration Design and Optimization of Waveriders[D]. Xi'an: Northwestern Polytechnical University, 2003. (in Chinese).

Google Scholar
