Analog Circuit Fault Diagnosis Method Based on Characteristic Layer Fusion and Improved Potential Energy Function Classification

Abstract:

To circuit system with a transition state from normal to fault, this paper presents "sub-health" concept to describe it, and the experiments add sub-health diagnosis type. To problem of diagnosis difficulty caused by data overlapping due to tolerance existing in analog circuits, characteristic layer fusion method is selected for feature extraction, and put forward the distance evaluation factor for feature selection. Then potential energy function classification is adopted to diagnose faults, and principle of binary tree is combined with potential energy function classification to solve multiple classification problems. The experiments adopt BP neural network to compare and verify that the method proposed is effective. The results fully illustrate that characteristic layer fusion method can extract fault features effectively, distance evaluation factor has achieved a good dimension reduction effect, and improved potential energy function classification realizes soft fault diagnosis accurately.

You might also be interested in these eBooks

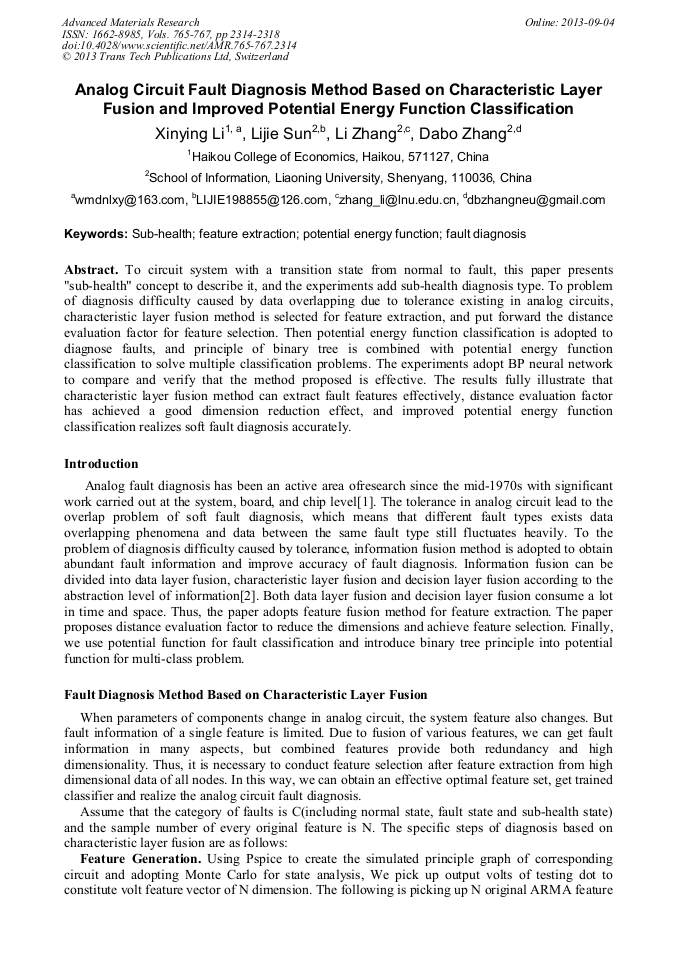

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 765-767)

Pages:

2314-2318

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.765-767.2314

Citation:

Cite this paper

Online since:

September 2013

Authors:

Xin Ying Li, Li Jie Sun, Li Zhang, Da Bo Zhang

Keywords:

Fault Diagnosis, Feature Extraction, Potential Energy Function, Sub-Health

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Farzan, M. Aminian. Analog Fault Diagnosis of Actual Circuits Using Neural Networks. IEEE TRANSACTIONS ON INSTRUMENTATION AND MEASUREMENT, 2002, vol. 51(3), pp.544-550.

DOI: 10.1109/tim.2002.1017726

Google Scholar

[2] D.H. Zhou, Y.Y. Hu. Fault diagnosis techniques for dynamic systems. Acta Automatica Sinica, 2009, vol. 35(6), pp.748-758.

DOI: 10.3724/sp.j.1004.2009.00748

Google Scholar

[3] B. Otman, X.H. Yuan. Engine fault diagnosis based on multi-sensor information fusion using Dempster-Shafer evidence theory[J]. Information Fusion, 2007, (8), pp.379-386.

DOI: 10.1016/j.inffus.2005.07.003

Google Scholar

[4] B.L. Zhong, R. Huang. Mechanical failure diagnosis, Beijing: Mechanical industry publishing press, (2006).

Google Scholar

[5] L. Zhang, L.J. Sun, L. CH. Wu, N. Li. A method for fault diagnosis of analog circuit based on rough set. Proceedings of 2011 3rd International Conference on Awareness Science and Technology, 2011, pp.540-543.

DOI: 10.1109/icawst.2011.6163188

Google Scholar
