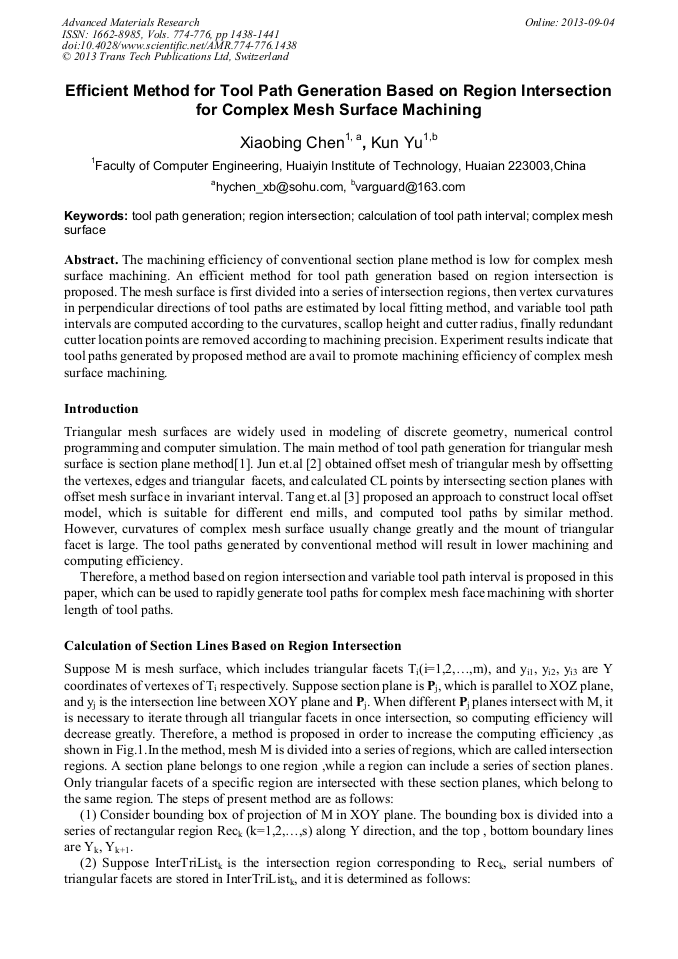

Efficient Method for Tool Path Generation Based on Region Intersection for Complex Mesh Surface Machining

Abstract:

The machining efficiency of conventional section plane method is low for complex mesh surface machining. An efficient method for tool path generation based on region intersection is proposed. The mesh surface is first divided into a series of intersection regions, then vertex curvatures in perpendicular directions of tool paths are estimated by local fitting method, and variable tool path intervals are computed according to the curvatures, scallop height and cutter radius, finally redundant cutter location points are removed according to machining precision. Experiment results indicate that tool paths generated by proposed method are avail to promote machining efficiency of complex mesh surface machining.

• Periodical: Advanced Materials Research (Volumes 774-776)
• Pages: 1438-1441
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.774-776.1438
• Online since: September 2013
• Authors: Xiao Bing Chen, Kun Yu
• Keywords: Calculation of Tool Path Interval, Complex Mesh Surface, Region Intersection, Tool Path Generation

References

[1] Ji Zhou, Yanhong Zhou: Technology of NC machining, National Defense Industry Press( 2002).

[2] C.S. Jun, D. S Kim, Park S: Computer- Aided Design Vol. 34(2002), pp.379-389.

[3] K. Tang, C.C. Cheng, Y. Dayan: Computer-Aided Design Vol. 27(1995), pp.915-927.

[4] Shenglan Liu, Rurong Zhou, Junhong Nie, et al : Chinese Journal of Computers Vol. 27(2004), pp.79-84. In Chinese.

[5] Fazhong Shi: CAGD & NURBS, Higher Education Press(2001).

[6] S.J. Kim, M.Y. Yang: International Journal of Advanced Manufacturing Technology Vol28(2006), pp.314-320.
