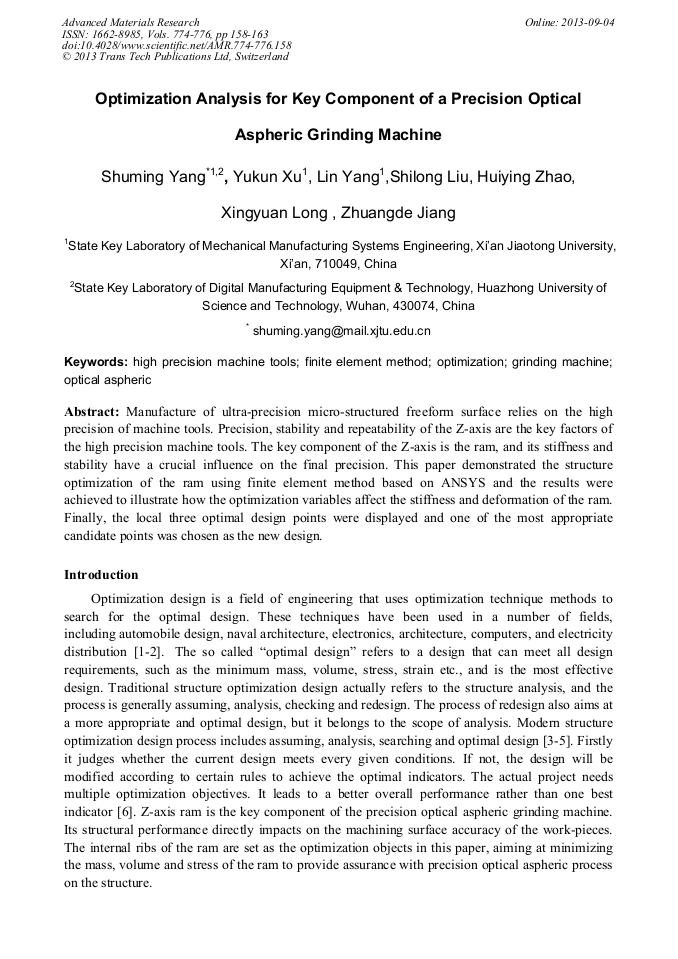

Optimization Analysis for Key Component of a Precision Optical Aspheric Grinding Machine

Abstract:

Manufacture of ultra-precision micro-structured freeform surface relies on the high precision of machine tools. Precision, stability and repeatability of the Z-axis are the key factors of the high precision machine tools. The key component of the Z-axis is the ram, and its stiffness and stability have a crucial influence on the final precision. This paper demonstrated the structure optimization of the ram using finite element method based on ANSYS and the results were achieved to illustrate how the optimization variables affect the stiffness and deformation of the ram. Finally, the local three optimal design points were displayed and one of the most appropriate candidate points was chosen as the new design.

• Periodical: Advanced Materials Research (Volumes 774-776)
• Pages: 158-163
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.774-776.158
• Online since: September 2013
• Authors: Shuming Yang, Yu Kun Xu, Lin Yang, Shi Long Liu, Hui Ying Zhao, Xing Yuan Long, Zhuang De Jiang
• Keywords: Finite Element Method (FEM), Grinding Machine, High Precision Machine Tools, Optical Aspheric, Optimization

References

[1] Leadbeater PB, et, al. A Unique Machine for Grinding Large Off-axis Optical Components: The OAGM 2500 [J]. Precision Engineering, 1989, 11(4).

DOI: 10.1016/0141-6359(89)90028-7

[2] Shan Dongri, Han Yuhua. Static & Dynamic Performances Analysis and Optimization Design for the Whole Casting Column of a Certain High-speed Horizontal Machining Centre Using ABAQUS[C]. IEEE ICIME, 2010: 367-371.

DOI: 10.1109/icime.2010.5477714

[3] Mao Cong, Guo Kexi, Li Heqing, etc. Thress dimensional finite element analysis for the end carriage of the overhead traveling crane[J]. Journal of Changsha University of Science and Technology, 2009, 6(3): 59-26.

[4] Wang Yanzhong, L V Xiaoyu, Sun Hongmei, etc. Optimal design for the Bed of High-speed Vertical Machining Center Based On ABAQUS[J]. Machine Tool & Hydraulics, 2011, 39(5): 64-66.

[5] Shore P, Morantz P, Luo X. Tonnellieretc, Big OptiX Ultra Precision Grinding/Measuring System [C]/ Proc. of 2005 SPIE, 2005, 5965; 241-248.

DOI: 10.1117/12.624166

[6] Shan Dongri, Li Yandong. The finite element analysis on static and dynamic performance for the welded-structure column of a certain horizontal machining centre[C]. 2010 2nd IEEE International Conference on Information Management and Engineering, Chengdu, China, 2010: 372-376.

DOI: 10.1109/icime.2010.5477715

[7] Guo Zhiquan, XuYanshen, Zhang Xueling, Lin Hanyuan. Research on Structure Static and Dynamic Design Based on FEA of Machining Center Columns[J]. Journal of Mechanical Strength, 2006, 28(2): 287-29.

[8] Yao Yuxi, Wen Chengxiu, Wang Huilin. Finite Element Analysis on the Column of the Heavy Duty Milling and Boring Machine[J]. Journal of Northeastern University, 1996, 17(4): 430-433.

[9] M. Zatarain, E. Lejardi, F. Egana. Modular Synthesis of Machine Tools. Annals of the CIRP, 1998, 47: 333-336.

DOI: 10.1016/s0007-8506(07)62845-5

[10] Jung Do Suh, Seung Hwan Chang, Dai Gil Lee, et al. Damping Characteristics of Composite Hybrid Spindle Covers for High Speed Machine Tools. Journal of Materials Processing Technology, 2001, 113: 178-183.

DOI: 10.1016/s0924-0136(01)00699-9
