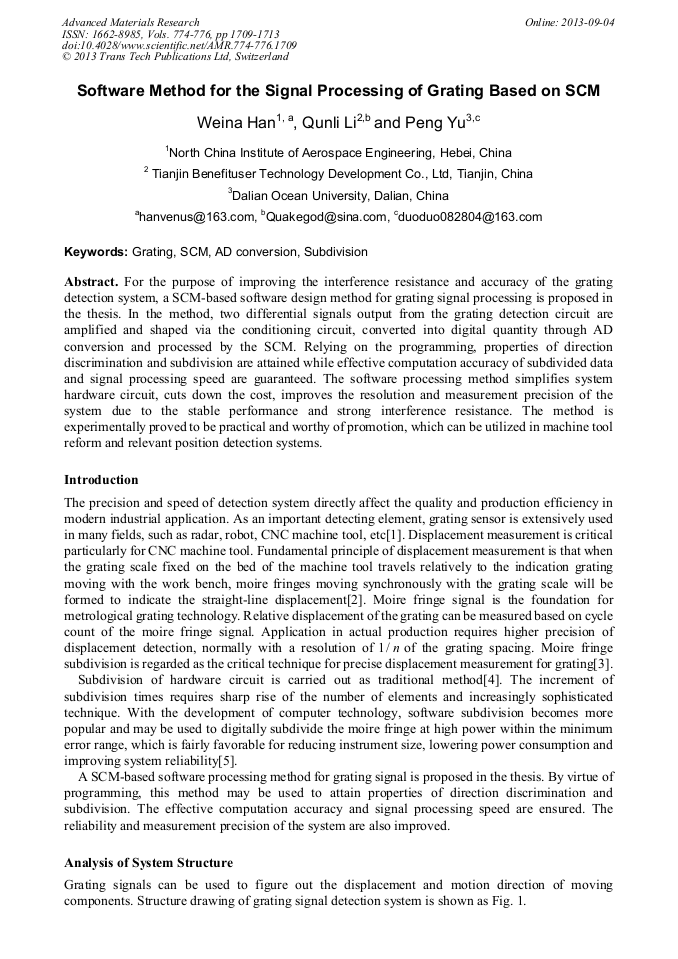

Software Method for the Signal Processing of Grating Based on SCM

Abstract:

For the purpose of improving the interference resistance and accuracy of the grating detection system, a SCM-based software design method for grating signal processing is proposed in the thesis. In the method, two differential signals output from the grating detection circuit are amplified and shaped via the conditioning circuit, converted into digital quantity through AD conversion and processed by the SCM. Relying on the programming, properties of direction discrimination and subdivision are attained while effective computation accuracy of subdivided data and signal processing speed are guaranteed. The software processing method simplifies system hardware circuit, cuts down the cost, improves the resolution and measurement precision of the system due to the stable performance and strong interference resistance. The method is experimentally proved to be practical and worthy of promotion, which can be utilized in machine tool reform and relevant position detection systems.

• Periodical: Advanced Materials Research (Volumes 774-776)
• Pages: 1709-1713
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.774-776.1709
• Online since: September 2013
• Authors: Wei Na Han, Qun Li Li, Peng Yu
• Keywords: AD Conversion, Grating, SCM, Subdivision

References

[1] L. Hu: Design of Grating Displacement Measure System Based on CPLD and Microchip, Electronic Measurement Technology, Vol. 33 (2010) No. 11, pp.81-83.

[2] J. Dai, F. Sun and X.J. Peng: Soft-disposal Method for Grating Signal, Electronic Mesurement Technology. Vol. 32 (2009) No. 11, pp.43-46.

[3] C.Y. Wang, G.X. Chang and J.K. Xia: Intelligent Interface Module of Grating Signal Processing Based on FPGA, Electric Drive, Vol. 37 (2007) No. 4, pp.59-61.

[4] S.Q. Li, W.B. Zheng and Y.J. Yang: The Theory and Implementation of Single-chip Microprocessor 160 Interpolation, Chinese Journal of Scientific Instrument, Vol. 26 (2005) No. 8, pp.566-567.

[5] S.W. Lu, X.Q. Tang and Z.L. Ma: Application of CORDIC Algorithm in Subdivision of Grating Moire Fringe, Process Automation Instrumentation. Vol. 31 (2010) No. 5, pp.23-25.

[6] Xiaodong Hu , Lang Peng and Ming Lei: Realization of a Subdividing Method for Grating Signal Based on FPGA: Actaphotonica Sinica. Vol. 40(2011) No. 11, pp.407-412.

DOI: 10.3788/gzxb20114003.0407

[7] X. Zhang, X.F. Hao and Y.W. Song: Design of General Grating Digital Display Device, Instrument Technique and Sensor, Vol. 1 (2009) No. 3, pp.121-123.

[8] Z.H. Cai: Introduction to the Displacement Measuring System of the Grating Digital Display, Electronic Test, Vol. 1(2009) No. 6, pp.60-63.

[9] W.F. Cao, M. Zhang and F. Wen: Discerning Direction and Subdivision Algorithm Design of High Speed and High Precision Grating Displacement Sensor, Modular Machine Tool & Automatic Manufacturing Technique, Vol. 1 (2010) No. 9, pp.27-29.

[10] F. Jin, Y. Lu and W.S. Wang: Analysis and Design of a Grating with Four Sub-Frequency Circuit Modules, Transactions of Beijing Institute of Technology, Vol. 26 (2006) No. 12, pp.1073-1076.
