The Penetration Test to Evaluate Wood Decay after 20 Years Timber Structure Assessment Experience

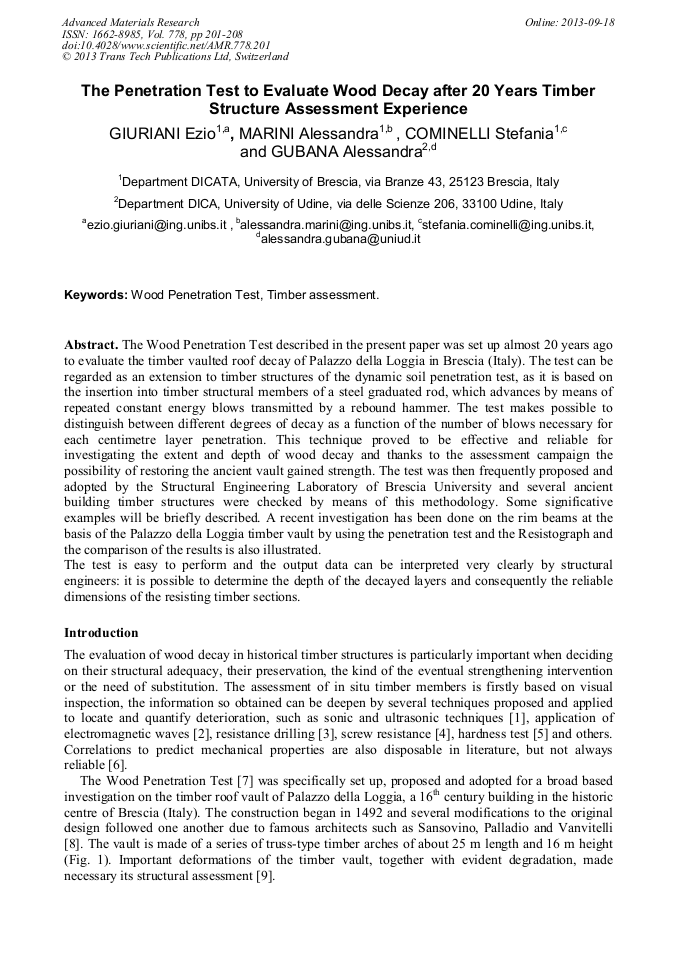

Abstract:

The Wood Penetration Test described in the present paper was set up almost 20 years ago to evaluate the timber vaulted roof decay of Palazzo della Loggia in Brescia (Italy). The test can be regarded as an extension to timber structures of the dynamic soil penetration test, as it is based on the insertion into timber structural members of a steel graduated rod, which advances by means of repeated constant energy blows transmitted by a rebound hammer. The test makes possible to distinguish between different degrees of decay as a function of the number of blows necessary for each centimetre layer penetration. This technique proved to be effective and reliable for investigating the extent and depth of wood decay and thanks to the assessment campaign the possibility of restoring the ancient vault gained strength. The test was then frequently proposed and adopted by the Structural Engineering Laboratory of Brescia University and several ancient building timber structures were checked by means of this methodology. Some significative examples will be briefly described. A recent investigation has been done on the rim beams at the basis of the Palazzo della Loggia timber vault by using the penetration test and the Resistograph and the comparison of the results is also illustrated. The test is easy to perform and the output data can be interpreted very clearly by structural engineers: it is possible to determine the depth of the decayed layers and consequently the reliable dimensions of the resisting timber sections.

• Periodical: Advanced Materials Research (Volume 778)
• Pages: 201-208
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.778.201
• Online since: September 2013
• Authors: Ezio Giuriani, Alessandra Marini, Stefania Cominelli, Alessandra Gubana
• Keywords: Timber Assessment, Wood Penetration Test

References

[1] R.J. Ross, R.F. Pellerin, Nondestructive testing for assessing wood members in structures: a review. Gen. Tech. Rep. FPL-GTR-70, US Department of Agriculture, Madison, WI, Forest Product Laboratory, (1991).

[2] M. Lualdi, L. Zanzi, and L. Binda, Acquisition and processing requirements for high quality 3D reconstruction from GPR investigations, Proceedings NDT-CE International Conference, (2003).

[3] F. Rinn, Resistographic inspection of building timber, Proceedings Pacific Timber Engineering Conference, Gold Coast, Australia, (1994).

[4] Z. Cai, M.O. Hunt, R.J. Ross, L.A. Soltis, Screw withdrawal – A means to evaluate densities of in-situ wood members, International Symposium on NDT of Wood, Richmond, USA, (2002), pp.277-281.

[5] J.G. Sunley, A comparison of the Janka and Monnin methods of testing the hardness of timber and wood products, J. Inst. Wood Science, 14 (1965), pp.40-46.

[6] B. Kasal, T. Tannert, In Situ Assessment of Structural Timber, State of the Art Report of the RILEM Technical Committee 215-AST, (2010).

DOI: 10.1007/978-94-007-0560-9

[7] E. Giuriani, A. Gubana, A penetration test to evaluate wood decay and its application to the Loggia Monument, RILEM Materials and Structures, 26 (1993), pp.8-14.

DOI: 10.1007/bf02472232

[8] A. Franchi, E. Giuriani, A. Gubana, G. Lupo, G. Mezzanotte, P. Ronca, V. Volta, Per la conservazione del Palazzo della Loggia di Brescia – Pareri sulla stabilità strutturale, Grafo edizioni, Brescia, (1993).

[9] Il Palazzo della Loggia di Brescia, Indagini e progetti per la conservazione, Proceedings of the Conference Storia e problemi statici del Palazzo della Loggia di Brescia, Brescia, (2007).

DOI: 10.3280/sil2020-002008

[10] M. Chudnoff, W.E. Eslyn, D.B. McKeever, Decay in mine timbers, Part III, Species-indipendent stress grading, Forest Prod. Jour. 34(3), (1984), pp.43-50.

[11] M. Kloiber, J. Tippner, V. Hermacova, J. Stainbruch, Comparison of results of measuring by current NDT methods with results obtained through a new device for wood mechanical resistance measuring, WCTE 2012 Structural Analysis of Historical Constructions, (2012).

[12] A. Gubana, Como, Palazzo Natta: la copertura. L'efficienza statica degli elementi, TeMa, n. 3, (1998).

[13] P. Ronca, A. Gubana, Mechanical Characterisation of Wooden Structures by means of an in situ penetration Test, Construction and Building Materials 12 (1998), pp.233-243.

DOI: 10.1016/s0950-0618(97)00080-9
