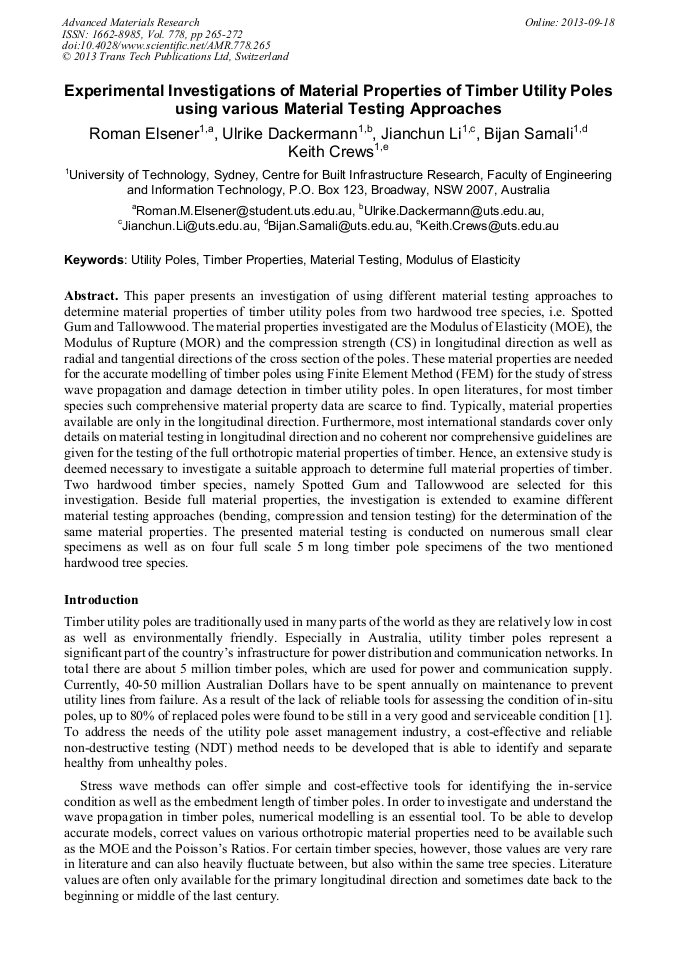

Experimental Investigations of Material Properties of Timber Utility Poles Using Various Material Testing Approaches

Abstract:

This paper presents an investigation of using different material testing approaches to determine material properties of timber utility poles from two hardwood tree species, i.e. Spotted Gum and Tallowwood. The material properties investigated are the Modulus of Electricity (MOE), the Modulus of Rupture (MOR) and the compression strength (CS) in longitudinal direction as well as radial and tangential directions of the cross section of the poles. These material properties are needed for the accurate modelling of timber poles using Finite Element Method (FEM) for the study of stress wave propagation and damage detection in timber utility poles. In open literatures, for most timber species such comprehensive material property data are scarce to find. Typically, material properties available are only in the longitudinal direction. Furthermore, most international standards cover only details on material testing in longitudinal direction and no coherent nor comprehensive guidelines are given for the testing of the full orthotropic material properties of timber. Hence, an extensive study is deemed necessary to investigate a suitable approach to determine full material properties of timber. Two hardwood timber species, namely Spotted Gum and Tallowwood are selected for this investigation. Beside full material properties, the investigation is extended to examine different material testing approaches (bending, compression and tension testing) for the determination of the same material properties. The presented material testing is conducted on numerous small clear specimens as well as on four full scale 5 m long timber pole specimens of the two mentioned hardwood tree species.

• Periodical: Advanced Materials Research (Volume 778)
• Pages: 265-272
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.778.265
• Online since: September 2013
• Authors: Roman Elsener, Ulrike Dackermann, Jian Chun Li, Bijan Samali, Keith Crews
• Keywords: Material Testing, Modulus of Elasticity, Timber Properties, Utility Poles

References

[1] M. Nguyen, G. Foliente, and X. Wang, State of the practice & challenges in Non-destructive evaluation of utility poles in service, Key Engineering Materials, vol. 270–273, (2004).

DOI: 10.4028/www.scientific.net/kem.270-273.1521

[2] M. H. Schneider, J. G. Phillips, D. A. Tingley, and K. I. Brebner, Mechanical properties of polymer impregnated sugar maple, Forest Products Journal, vol. 40, no. 1, p.37–41, (1990).

[3] F. Wangaard, The Mechanical Properties of Wood. New York: John Wiley & Sons, Inc., (1950).

[4] Deutsche Norm, DIN 52186 - Biegeversuch., (1978).

[5] Deutsche Norm, DIN 52188 - Bestimmung der Zugfestigkeit parallel zur Faser. pdf., (1979).

DOI: 10.31030/1260199

[6] Deutsche Norm, DIN 52185 - Bestimmung der Druckfestigkeit parallel zur Faser., (1976).

DOI: 10.31030/1260162

[7] Deutsche Norm, DIN 54192 - Druckversuch quer zur Faserrichtung., (1979).

DOI: 10.31030/1260224

[8] ASTM International, ASTM D143 – 09 - Standard Test Methods for Small Clear Specimens of Timber., p.1–31, (2009).

[9] Australian/NewZealand Standard, 4063. 1 - Characterization of structural timber, Part 1 : Test methods., (2010).

[10] Australian/NewZealand Standard, 1080. 3 - Timber-Methods of test, Method 3 : Density., (2000).

[11] Australian/NewZealand Standard, 1080. 1 - Timber — Methods of Test, Method 1 : Moisture content., (1997).

[12] K. J. Niklas, Mechanical Properties of Black Locust (Robinia pseudoacacia L . ) Wood . Size- and Age-dependent Variations in Sap- and Heartwood, Annals of Botany, vol. 79, p.265–272, (1997).

DOI: 10.1006/anbo.1996.0340

[13] Deutsche Norm, DIN 52180 - Prüfung von Holz, Probenahme., Berlin, (1977).

[14] K. R. Bootle, Wood in Australia; Types, Properties and Uses, 2nd ed. McGraw-Hill Australia, (2005).

[15] E. Bolza and N. H. Kloot, The Mechanical Properies of 174 Australian Timbers., Melbourne, (1963).
