Study on Mechanical Property of Polylactic Acid Toughened by Polyacrylate Microsphere

Xiao Li Song; Ying Chen; Yu Zhi Xu; Chun Peng Wang

doi:10.4028/www.scientific.net/AMR.781-784.390

Paper Titles

Electrochemical Behaviour of Zink Electrode in an Neutral Environment at Polarization with Industrial Alternating Current
p.367

Research on Direct Effects of High-Voltage Electrostatic Field on Lactoperoxidase's Activity
p.372

An Activity Coefficient Model Based on the Hydration for Electrolyte Solutions
p.379

The Effect of Specific Surface Area on the Solid Grafting Reaction of Maleic Anhydride-Grafted Polypropylene
p.385

Study on Mechanical Property of Polylactic Acid Toughened by Polyacrylate Microsphere
p.390

Research on the Tensile Properties of Microcellular PS with Supercritical CO₂
p.395

Chiral Liquid Crystalline Polymers Containing Isosorbide Groups
p.403

Electrochemical Polymerization of Variamine Blue Film at Glassy Carbon Electrode and its Electrochemical Behavior
p.407

Cyclic Aryl Ketone Oligomers Containing the Iso-Phthaloyl Moiety: Synthesis and Ring-Opening Polymerization
p.411

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 781-784Study on Mechanical Property of Polylactic Acid...

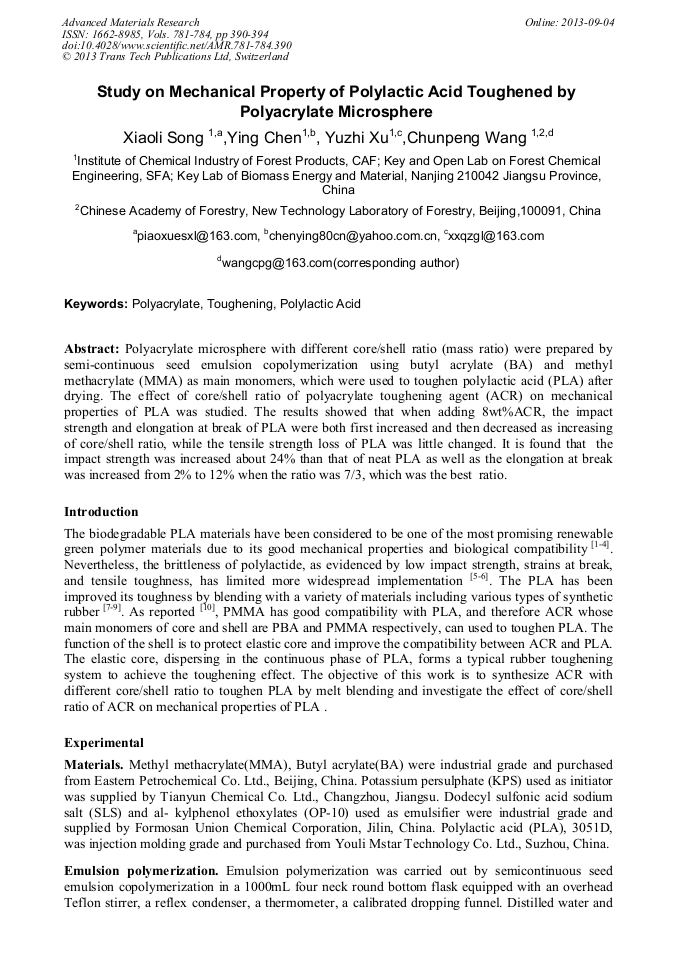

Study on Mechanical Property of Polylactic Acid Toughened by Polyacrylate Microsphere

Abstract:

Polyacrylate microsphere with different core/shell ratio (mass ratio) were prepared by semi-continuous seed emulsion copolymerization using butyl acrylate (BA) and methyl methacrylate (MMA) as main monomers，which were used to toughen polylactic acid (PLA) after drying. The effect of core/shell ratio of polyacrylate toughening agent (ACR) on mechanical properties of PLA was studied. The results showed that when adding 8wt%ACR, the impact strength and elongation at break of PLA were both first increased and then decreased as increasing of core/shell ratio, while the tensile strength loss of PLA was little changed. It is found that the impact strength was increased about 24% than that of neat PLA as well as the elongation at break was increased from 2% to 12% when the ratio was 7/3, which was the best ratio.
