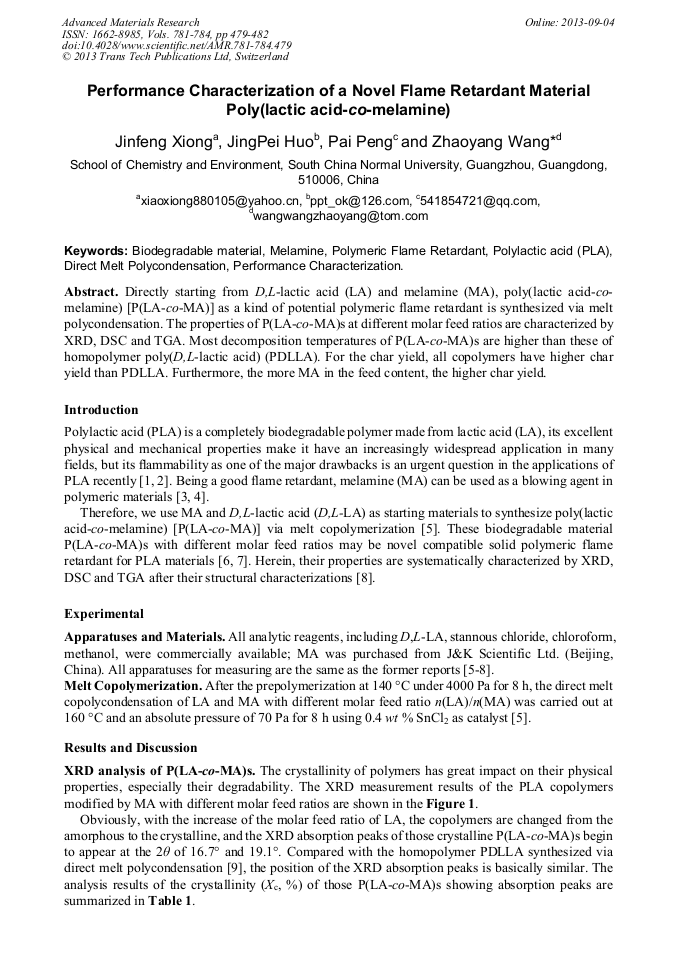

Performance Characterization of a Novel Flame Retardant Material Poly(lactic acid-co-melamine)

Abstract:

Directly starting from D,L-lactic acid (LA) and melamine (MA), poly (lactic acid-co- melamine) [P(LA-co-MA)] as a kind of potential polymeric flame retardant is synthesized via melt polycondensation. The properties of P(LA-co-MA) s at different molar feed ratios are characterized by XRD, DSC and TGA. Most decomposition temperatures of P(LA-co-MA) s are higher than these of homopolymer poly (D,L-lactic acid) (PDLLA). For the char yield, all copolymers have higher char yield than PDLLA. Furthermore, the more MA in the feed content, the higher char yield.

• Periodical: Advanced Materials Research (Volumes 781-784)
• Pages: 479-482
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.781-784.479
• Online since: September 2013
• Authors: Jin Feng Xiong, Jing Pei Huo, Pai Peng, Zhao Yang Wang
• Keywords: Biodegradable Material, Direct Melt Polycondensation (DMP), Melamine, Performance Characterization, Poly(lactic acid) (PLA), Polymeric Flame Retardant

References

[1] S. Bourbigot and G. Fontaine: Polym. Chem. Vol. 1 (2010), p.1413.

[2] X. Wang, Y. Hu, L. Song, S.Y. Xuan, W.Y. Xing, Z.M. Bai and H.D. Lu: Ind. Eng. Chem. Res. Vol. 50 (2011), p.713.

[3] J.W. Gu, G.C. Zhang, S.L. Dong, Q.Y. Zhang and J. Kong: Surf. Coat. Technol. Vol. 201 (2007), p.7835.

[4] J.X. Feng, S.P. Su and J. Zhu: Polym. Adv. Technol. Vol. 22 (2011), p.1115.

[5] M.H. Feng, J.F. Xiong, Q.F. Wang and Z.Y. Wang: submitted to this meeting (2013).

[6] Z.Y. Wang and J.F. Xiong, Chinese Patent CN 102746497A. (2012).

[7] J.F. Xiong, S.H. Luo, Q.F. Wang, Z.Y. Wang and J. Qi: Des. Monomers Polym. Vol. 16 (2013), p.389.

[8] G.Z. Mo, J.F. Xiong, P. Peng and Z.Y. Wang: submitted to this meeting (2013).

[9] Z.Y. Wang, Y.M. Zhao, F. Wang and J. Wang: J. Appl. Polym. Sci. Vol. 99 (2006), p.244.

[10] Q.F. Wang, J.F. Xiong, M.L. Zhong and Z.Y. Wang: submitted to this meeting (2013).

[11] E.S. Kim, B.C. Kim and S.H. Kim: J. Polym. Sci., Part B: Polym. Phys. Vol. 42 (2004), p.939.

[12] C.X. Mao, S.H. Luo, Q.F. Wang, J.F. Xiong and Z.Y. Wang: J. Appl. Polym. Sci. Vol. 125 (2012), p. E339.

[13] D. Apreutesei, G. Lisa, N. Hurduc and D. Scutaru: J. Therm. Anal. Cal. Vol. 83 (2006), p.335.

DOI: 10.1007/s10973-005-6522-1

[14] X.Y. Yuan, D.Y. Wang, L. Chen, X.L. Wang and Y.Z. Wang: Polym. Degrad. Stab. Vol. 96 (2011), p.1669.

[15] KK. Yang, XL. Wang, YZ. Wang, B. Wu, Y.D. Jin and B. Yang: Eur. Polym. J. Vol. 39 (2003), p.1567.

[16] J.B. Zeng, Y.D. Li, S.L. Li, Y.Z. Wang and K.K. Yang: J. Macromol. Sci. Part B: Phys. Vol. 48 (2009), p.635.
