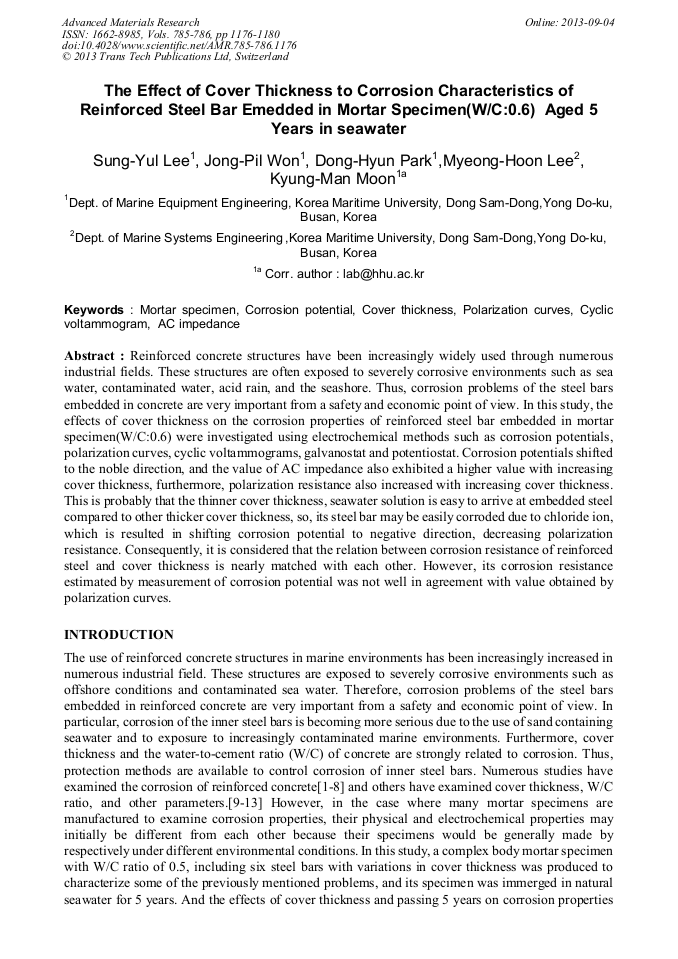

The Effect of Cover Thickness to Corrosion Characteristics of Reinforced Steel Bar Emedded in Mortar Specimen (W/C:0.6) Aged 5 Years in Seawater

Abstract:

Reinforced concrete structures have been increasingly widely used through numerous industrial fields. These structures are often exposed to severely corrosive environments such as sea water, contaminated water, acid rain, and the seashore. Thus, corrosion problems of the steel bars embedded in concrete are very important from a safety and economic point of view. In this study, the effects of cover thickness on the corrosion properties of reinforced steel bar embedded in mortar specimen (W/C:0.6) were investigated using electrochemical methods such as corrosion potentials, polarization curves, cyclic voltammograms, galvanostat and potentiostat. Corrosion potentials shifted to the noble direction, and the value of AC impedance also exhibited a higher value with increasing cover thickness, furthermore, polarization resistance also increased with increasing cover thickness. This is probably that the thinner cover thickness, seawater solution is easy to arrive at embedded steel compared to other thicker cover thickness, so, its steel bar may be easily corroded due to chloride ion, which is resulted in shifting corrosion potential to negative direction, decreasing polarization resistance. Consequently, it is considered that the relation between corrosion resistance of reinforced steel and cover thickness is nearly matched with each other. However, its corrosion resistance estimated by measurement of corrosion potential was not well in agreement with value obtained by polarization curves.

• Periodical: Advanced Materials Research (Volumes 785-786)
• Pages: 1176-1180
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.785-786.1176
• Online since: September 2013
• Authors: Sung Yul Lee, Jong Pil Won, Dong Hyun Park, Myeong Hoon Lee, Kyung Man Moon*
• Keywords: AC Impedance, Corrosion Potential, Cover Thickness, Cyclic Voltammogram, Mortar Specimen, Polarization Curve

References

[1] R. N. Sway, S. Koyama, T. Arai, N. Kikami: Durability of steel rlin forcement in marine environment, ACI. SP 109-7, (1982), 147-1614.

[2] S. Ozaki, N. Sugata: sixty-year-old concrete in marine environment, ACI. SP 109-26, (1983), 587-597.

[3] A. A. Sagues: Corrosion measurement of reinforcing steel in concrete exposed to various aquous environments, Proceedings of the corrosion/87 Symposium on corrosion of metals in concrete, (1987), 13-24.

DOI: 10.14359/3731

[4] H. G. Wheat: An investigation of the effect of the cathode area /anode area in the corrosion of steel in concrete, Proceeding of the corrosion/87 symposium on corrosion of metals in concrete, (1987), 25-41.

[5] C. E. Lockl, O. Rincon: A study of Corrosion Electrochemistry of steel in chloride contaminated concrete using a rapid scan polarization Technique, Proceeding of the corrosion/87 Technique symposium on corrosion at metals in concrete, (1987).

[6] P. Garces, L. G. Hndion : Corrosion of steel reinforcement in structural concrete with carbon material addition, Corros. Sci. 49, (2007), 2557.

[7] S. H. Lee, and J. S. Han: A study on the measurement of steel corrosion in Morton by TEM method, j. Ocean engineer. and Tec. 20, (2006), 59.

[8] J. H. Kwon: A study on the hydration heat of anti washout underwater concrete using Fly Ash, Vol. 14, No. 4, J. Ocean engineer. and Tec. 14, (2000), 30.

[9] D. H. Jeon, K. M. Moon, T. S. Baek, and J. H. Kim: A anti-corrosion study at steel of reiuforced concrete with sand with contansi nated sea water in sea water solution, Corros. Sci. and Tec. 21, (1992), 11.

[10] K. G. Kim, B. H. Ryou, S. J. Kim, K. J. Kim, and K. M. Moon: An electrochemical study on the effect at chloride ion to corrosion behavior of inner steel bar embedded in concrete in natural sea water, J. Ocean engineer. and Tec. 14, (2000), 23.

[11] N. G. Thampson, K. H. Lawson, and J. A. Beavers, Proceeding of the corrosion/87 Technique" symposium on corrosion at metals in concrete, (1987), 182-199.

[12] J. A. Apostoles, D. Park, R. A. Carello, Proceeding of the corrosion/87 Technique" symposium on corrosion at metals in concrete, (1987), 168-181.

[13] Y. R. Yoo, H.H. Cho, S. Take, J. G. Kim, and Y. S. Kim, Met. Mater. Int. 12, (2006), 255.
