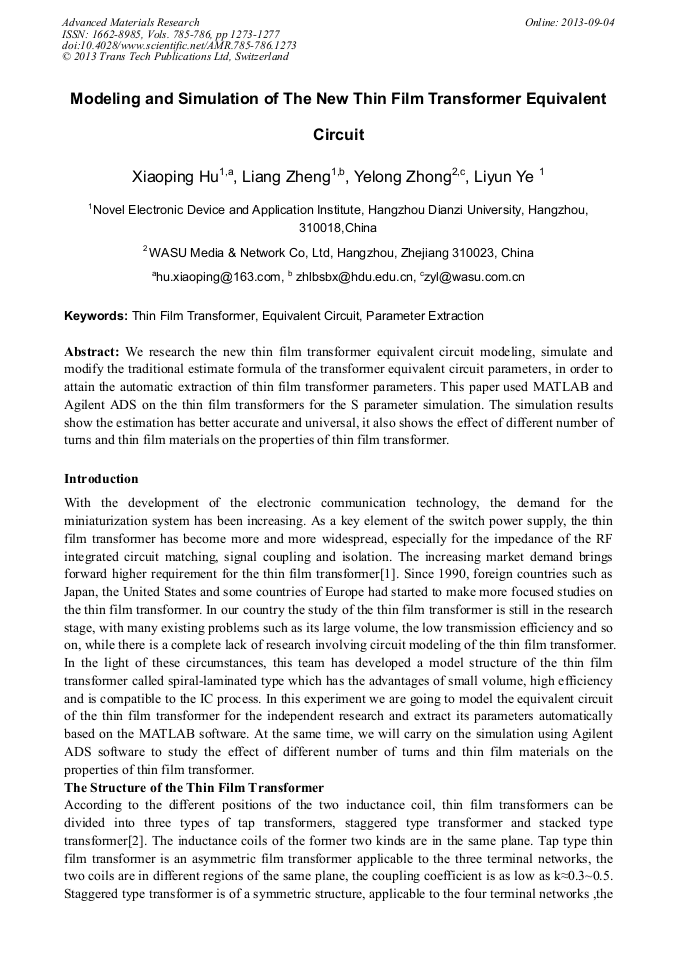

Modeling and Simulation of the New Thin Film Transformer Equivalent Circuit

Abstract:

We research the new thin film transformer equivalent circuit modeling, simulate and modify the traditional estimate formula of the transformer equivalent circuit parameters, in order to attain the automatic extraction of thin film transformer parameters. This paper used MATLAB and Agilent ADS on the thin film transformers for the S parameter simulation. The simulation results show the estimation has better accurate and universal, it also shows the effect of different number of turns and thin film materials on the properties of thin film transformer.

• Periodical: Advanced Materials Research (Volumes 785-786)
• Pages: 1273-1277
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.785-786.1273
• Online since: September 2013
• Authors: Xiao Ping Hu, Liang Zheng, Ye Long Zhong, Li Yun Ye
• Keywords: Equivalent Circuit, Parameter Extraction, Thin Film Transformer

References

[1] Hayano S, Midorikawa Y, Saito Y.: IEEE Transactions on Magnetics. 1994, 30(6): 4758-4760.

DOI: 10.1109/20.334213

[2] Yang, Y.; Wang, Z. -J.; Cai, X. etc.: Electric Power Applications, IET. 2011 , 5 (6), pp: 479 – 485.

[3] Yamaguchi K, Sugawara E, etc.: IEEE Transactions on Magnetics. 1993, 29(6): 3207-3209.

[4] S. Mohan, Mar Hershenson, etc.: IEEE Solid-state Circuits. 1999, 34(10): 1419-1424.

DOI: 10.1109/4.792620

[5] Liang Zheng, Huibin Qin: Research in Microelectronics and Electronics, Ph.D. 2009: 256 – 259.
