Simulation of the Elastic Modulus of Mo Alloys at Both Room and High Temperatures

Hui Chao Cheng; Jinglian Fan; Min Song

doi:10.4028/www.scientific.net/AMR.785-786.81

Paper Titles

Effects of P Addition on the Oxidation and Corrosion Behavior of Sn-9Zn-1Bi Solder Alloy
p.63

Effects of Grain Refiner and Cooling Rate on Solidification Structure of H62 Brass
p.67

Low Cycle Fatigue Study of 63Sn-37Pb Solder under Torsional Cyclic Loading
p.72

Effects of Trace ZrC on the Microstructure and Properties of Molybdenum Alloy
p.76

Simulation of the Elastic Modulus of Mo Alloys at Both Room and High Temperatures
p.81

Microstructure and Mechanical Properties of Ti-Al-Mo-V-Ta Alloys
p.86

Influence of Additives on Preparation of Aluminum Foam
p.91

Corrosion Characteristics of Friction Stir Welded AZ31 Magnesium Alloy
p.97

Interaction between Sodium Molybdate and FSWed Weld of 5083 Effected by Temperature
p.101

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 785-786Simulation of the Elastic Modulus of Mo Alloys at...

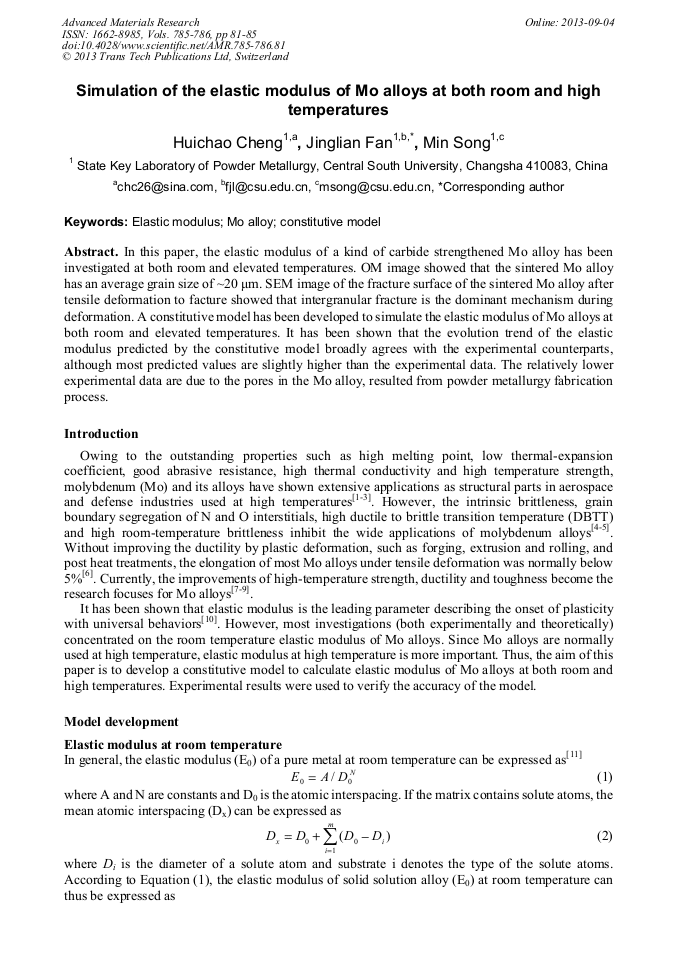

Simulation of the Elastic Modulus of Mo Alloys at Both Room and High Temperatures

Abstract:

In this paper, the elastic modulus of a kind of carbide strengthened Mo alloy has been investigated at both room and elevated temperatures. OM image showed that the sintered Mo alloy has an average grain size of ~20 μm. SEM image of the fracture surface of the sintered Mo alloy after tensile deformation to facture showed that intergranular fracture is the dominant mechanism during deformation. A constitutive model has been developed to simulate the elastic modulus of Mo alloys at both room and elevated temperatures. It has been shown that the evolution trend of the elastic modulus predicted by the constitutive model broadly agrees with the experimental counterparts, although most predicted values are slightly higher than the experimental data. The relatively lower experimental data are due to the pores in the Mo alloy, resulted from powder metallurgy fabrication process.

You might also be interested in these eBooks

Current Trends in the Development of Industry

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 785-786)

Pages:

81-85

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.785-786.81

Citation:

Cite this paper

Online since:

September 2013

Authors:

Hui Chao Cheng, Jinglian Fan, Min Song

Keywords:

Constitutive Model, Elastic Modulus, Mo Alloy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] B.V. Cockeram: Mater. Sci. Eng. A Vol. 418 (2006), p.120.

Google Scholar

[2] T. Xiang: Molybdenum metallurgy (Central South University Press, Changsha 2002).

Google Scholar

[3] J.H. Schneibel, E.J. Felderman, and E.K. Ohriner: Scr. Mater. 59 (2008) 131.

Google Scholar

[4] Y. Hiraoka, T. Noda, and M. Okada: J. Less Common Metals 91 (1983) 167.

Google Scholar

[5] Y. Hiraoka, and S. Yoshimura: Inter. J. Refra. Metal. Hard Mater. 12 (1994) 211.

Google Scholar

[6] Z. Cai, J. Jin, and H. Chen: J. Shanghai Iron and Steel Research 3 (1993) 56.

Google Scholar

[7] S. Yoshimura, and Y. Hiraoka: Inter. J. Refra. Metal. Hard Mater. 14 (1996) 325.

Google Scholar

[8] J. Fan, H. Cheng, M. Liu, B. Huang, and J. Tian: Rare Metal Mater. Eng. 37 (2008) 1471.

Google Scholar

[9] T. Inoue, Y. Hiraoka, E. Sukedai, M. Nagae, and J. Takada: Inter. J. Refra. Metal. Hard Mater. 25 (2007) 138.

Google Scholar

[10] W.L. Johnson, and K. Samwer: Phys. Rev. Lett. 95 (2005) 195501.

Google Scholar

[11] M. Sun: Mechanical properties of Metals (Harbin Institute of Technology Press, Harbin 2005).

Google Scholar

[12] S. Tian, X. Li, B. Li: Physical properties of metals (National Defense Industry Press, Beijing 985).

Google Scholar

[13] H. Cheng, J. Fang, M. Liu, P. Li, and J. Tian: The Chinese J. Nonfer. Metals 22 (2012) 112.

Google Scholar
