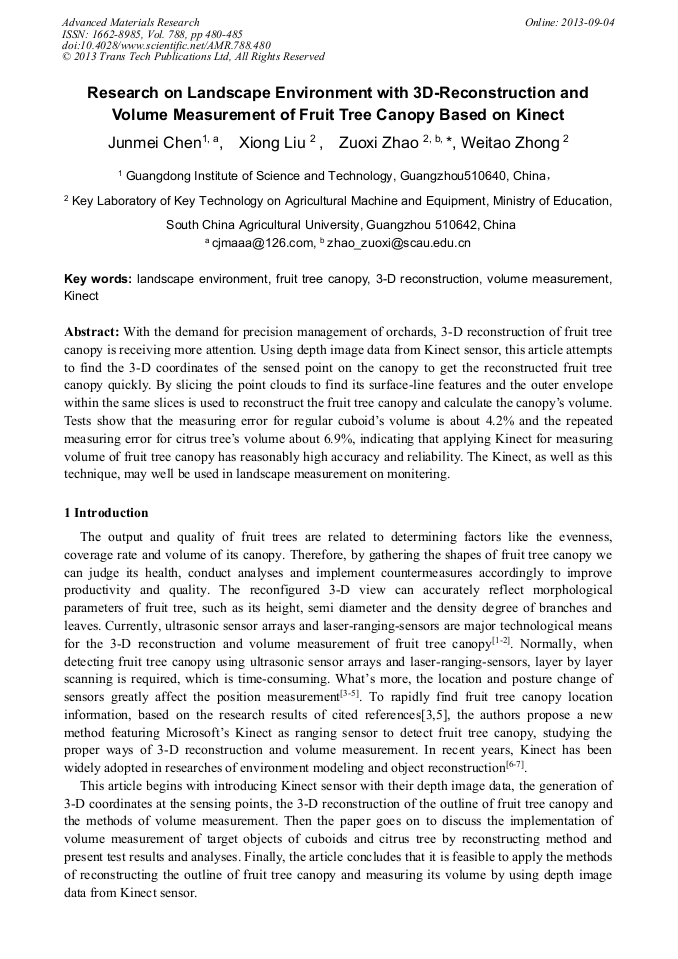

Research on Landscape Environment with 3D-Reconstruction and Volume Measurement of Fruit Tree Canopy Based on Kinect

Abstract:

With the demand for precision management of orchards, 3-D reconstruction of fruit tree canopy is receiving more attention. Using depth image data from Kinect sensor, this article attempts to find the 3-D coordinates of the sensed point on the canopy to get the reconstructed fruit tree canopy quickly. By slicing the point clouds to find its surface-line features and the outer envelope within the same slices is used to reconstruct the fruit tree canopy and calculate the canopy’s volume. Tests show that the measuring error for regular cuboid’s volume is about 4.2% and the repeated measuring error for citrus tree’s volume about 6.9%, indicating that applying Kinect for measuring volume of fruit tree canopy has reasonably high accuracy and reliability. The Kinect, as well as this technique, may well be used in landscape measurement on monitering.

• Periodical: Advanced Materials Research (Volume 788)
• Pages: 480-485
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.788.480
• Online since: September 2013
• Authors: Jun Mei Chen, Xiong Liu, Zuo Xi Zhao, Wei Tao Zhong
• Keywords: 3-D Reconstruction, Fruit Tree Canopy, KINECT, Landscape Environment, Volume Measurement

References

[1] Lee Kyeong-Hwan, Ehsani Reza. A Laser-Scanning System for Quantification of Tree-Geometric Characteristics. 2008 ASABE Annual International Meeting, Paper Number: 083980.

DOI: 10.13031/2013.25003

[2] Joan R Rosell, Jordi Llorens, Ricardo Sanz. Obtaining the three-dimensional structure of tree orchards from remote 2D terrestrial LIDAR scanning. Agricultural and Forest Meteorology, 2009, 149: 1505-1515.

DOI: 10.1016/j.agrformet.2009.04.008

[3] Yu Long, Hong Tiansheng, Zhao Zuoxi, et al. 3D-reconstruction and volume measurement of fruit tree canopy based on ultrasonic sensors[J]. Transactions of the CSAE, 2010, 26(11): 204-208.

[4] J. Wei, M. Salyani , et al．Development of a laser scanner for measuring tree canopy characteristics [J], American Society of Agricultural Engineers, 2004, 48(6)：1595－1601.

DOI: 10.13031/2013.19174

[5] Pallejaa T, Tresancheza M, Teixidoa M, Sanzb R, Rosell J. R, Palacina J. Sensitivity of tree volume measurement to trajectory errors from a terrestrial LIDAR scanner. Agricultural and Forest Meteorology, 2010, 150: 1420–1427.

DOI: 10.1016/j.agrformet.2010.07.005

[6] Song Shi-chao，Yu Su-ping，Xu Wu-jun. Study on 3D body scanning，reconstruction and measurement techniques based on Kinect. Journal of Tianjin Polytechnic University, 2012，31(5)：34-37.

[7] Yang Dongfang, Wang Shicheng，Liu Huaping，Liu Zhiguo，Sun Fuchun. Scene Modeling and Autonomous Navigation for Robots Based on Kinect System. ROBOT. 2012, 34(5): 581-589.

DOI: 10.3724/sp.j.1218.2012.00581

[8] Jarrett Webb，James Ashley. Beginning Kinect Programming with the Microsoft Kinect SDK [M]，America：Apress，2012，1-7.

DOI: 10.1007/978-1-4302-4105-8

[9] http: /www. ros. org/wiki/kinect_calibration/technical.

[10] http: /msdn. microsoft. com/en-us/library/hh973078. aspx.

[11] Jay A, Farrell. Aided Navigation: GPS with High Rate Sensors[M]. New York: McGraw-Hill Companies, 2008: 35－50.

[12] Sun Yongwe, Sun Dianzhu, Zhu Changzh, I, Zong wei. An acquisition and optimization algorithm for slicing data of scattered points. Journal of Harbin Engineering University. 2010, 31(11): 1514-1518.
