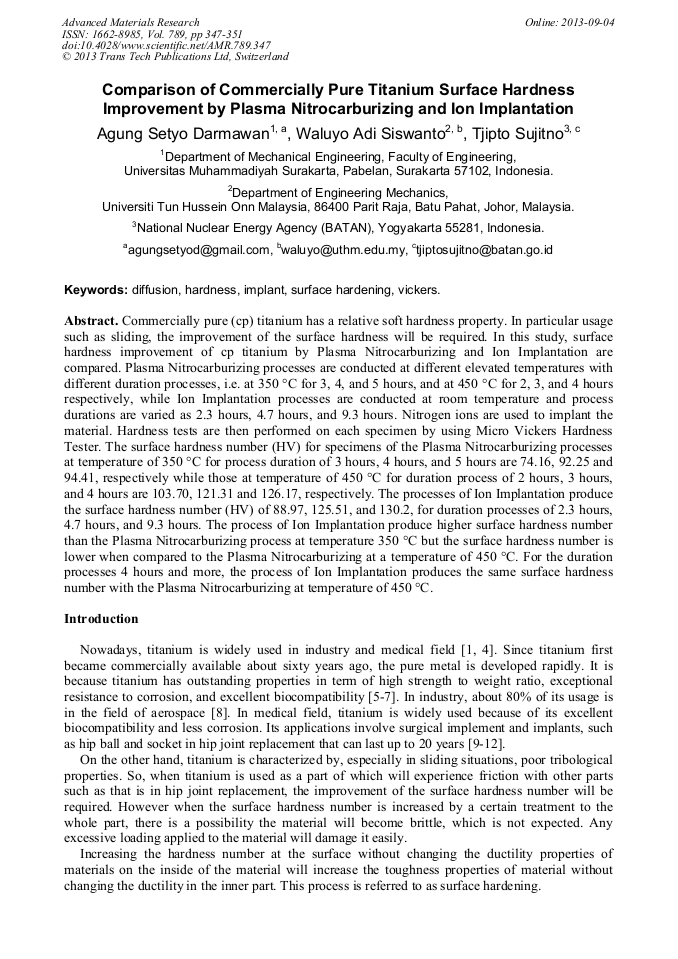

Comparison of Commercially Pure Titanium Surface Hardness Improvement by Plasma Nitrocarburizing and Ion Implantation

Abstract:

Commercially pure (cp) titanium has a relative soft hardness property. In particular usage such as sliding, the improvement of the surface hardness will be required. In this study, surface hardness improvement of cp titanium by Plasma Nitrocarburizing and Ion Implantation are compared. Plasma Nitrocarburizing processes are conducted at different elevated temperatures with different duration processes, i.e. at 350 °C for 3, 4, and 5 hours, and at 450 °C for 2, 3, and 4 hours respectively, while Ion Implantation processes are conducted at room temperature and process durations are varied as 2.3 hours, 4.7 hours, and 9.3 hours. Nitrogen ions are used to implant the material. Hardness tests are then performed on each specimen by using Micro Vickers Hardness Tester. The surface hardness number (HV) for specimens of the Plasma Nitrocarburizing processes at temperature of 350 °C for process duration of 3 hours, 4 hours, and 5 hours are 74.16, 92.25 and 94.41, respectively while those at temperature of 450 °C for duration process of 2 hours, 3 hours, and 4 hours are 103.70, 121.31 and 126.17, respectively. The processes of Ion Implantation produce the surface hardness number (HV) of 88.97, 125.51, and 130.2, for duration processes of 2.3 hours, 4.7 hours, and 9.3 hours. The process of Ion Implantation produce higher surface hardness number than the Plasma Nitrocarburizing process at temperature 350 °C but the surface hardness number is lower when compared to the Plasma Nitrocarburizing at a temperature of 450 °C. For the duration processes 4 hours and more, the process of Ion Implantation produces the same surface hardness number with the Plasma Nitrocarburizing at temperature of 450 °C.

• Periodical: Advanced Materials Research (Volume 789)
• Pages: 347-351
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.789.347
• Online since: September 2013
• Authors: Agung Setyo Darmawan, Waluyo Adi Siswanto, Tjipto Sujitno
• Keywords: Diffusion, Hardness, Implant, Surface Hardening, Vickers

References

[1] Y. Fu, A.W. Batchelor, Laser nitriding of pure titanium with Ni, Cr for improved wear performance, Wear, 214 (1998) 83-90.

DOI: 10.1016/s0043-1648(97)00204-4

[2] K. Hamada, M. Kon, T. Hanawa, K. Yokoyama, Y. Miyamoto, K. Asaoka, Hydrothermal modification of titanium surface in calcium solutions, Biomaterials, 23 (2002) 2265–2272.

DOI: 10.1016/s0142-9612(01)00361-1

[3] Y. Luo, G. Ge, Fretting wear behavior of nitrogen ion implanted titanium alloys in bovine serum lubrication, Tribology International, 42 (2009) 1373–1379.

DOI: 10.1016/j.triboint.2009.04.009

[4] M. Trtica, B. Gakovic, D. Batani, T. Desai, P. Panjan, B. Radak, Surface modifications of a titanium implant by a picosecond Nd: YAG laser operating at 1064 and 532 nm, Applied Surface Science, 253 (2006) 2551–2556.

DOI: 10.1016/j.apsusc.2006.05.024

[5] H. Dong, T. Bell, Enhanced wear resistance of titanium surfaces by a new thermal oxidation treatment, Wear, 238 (2000) 131–137.

DOI: 10.1016/s0043-1648(99)00359-2

[6] M.J. Tan, X.J. Zhu, Microstructure evolution of CP titanium during high temperature deformation, Archives of Materials Science and Engineering, 28 (2007) 5-11.

[7] H.Y. Yu, Z. B. Cai, Z. R. Zhou, M. H. Zhu, Fretting behavior of cortical bone against titanium and its alloy, Wear, 259 (2005) 910–918.

DOI: 10.1016/j.wear.2005.01.037

[8] A. Bloyce, P. H. Morton, T. Bell, Surface Engineering of Titanium and Titanium Alloys, ASM Handbook, 5 (1994) 2232-2233.

[9] Information on http: /www. supraalloys. com/medical-titanium. php.

[10] X. Liu, P.K. Chu, C. Ding, Surface modification of titanium, titanium alloys, and related materials for biomedical applications, Materials Science and Engineering, R47 (2004) 49–121.

DOI: 10.1016/j.mser.2004.11.001

[11] X. Liu, R.W.Y. Poon, S.C.H. Kwok, P.K. Chu, C. Ding, Plasma surface modification of titanium for hard tissue replacements, Surface & Coatings Technology, 186 (2004) 227–233.

DOI: 10.1016/j.surfcoat.2004.02.045

[12] Y.S. Tian, C.Z. Chen, S.T. Li, Q.H. Huo, Research progress on laser surface modification of titanium alloys, Applied Surface Science, 242 (2005) 177–184.

DOI: 10.1016/j.apsusc.2004.08.011

[13] T. Bell, Y. Sun, A. Suhadi, Environmental and Technical Aspects of Plasma Nitrocarburizing. Vacuum, 59 (2000) 14–23.

DOI: 10.1016/s0042-207x(00)00250-5

[14] N. Krishnaraj, P.B. Srinivasan, K.J.L. Iyer, S. Sundaresan, Optimization of compound layer thickness for wear resistance of Nitrocarburized H11 steel, Wear, 215 (1998) 123-130.

DOI: 10.1016/s0043-1648(97)00276-7

[15] M. Karakan, A. Alsaran, A. Celik, Effect of process time on structural and tribological properties of ferritic plasma nitrocarburized AISI 4140 steel, Materials and Design, 25 (2004) 349–353.

DOI: 10.1016/j.matdes.2003.10.017

[16] A. S. Darmawan, W. A. Siswanto, T. Sujitno, The Influence of Plasma Nitrocarburizing Process Temperature to Commercially Pure Titanium Surface Hardness, Applied Mechanics and Materials, 315 (2013) 700-704.

DOI: 10.4028/www.scientific.net/amm.315.700

[17] A. S. Darmawan, W. A. Siswanto, T. Sujitno, Surface Modification of Commercially Pure Titanium by Plasma Nitrocarburizing at Different Temperatures and Duration Process, Research Journal of Applied Sciences, Engineering and Technology, 5(4) (2013).

DOI: 10.19026/rjaset.5.4872

[18] J. K. Hirvonen, B. D. Sartwell, Ion Implantation, ASM Handbook, 5 (1994) 1680-1690.

[19] W.D. Callister, Materials Science and Engineering: An Introduction 7ed, John Wiley and Son, New York, (2007).
