Corrosion Failure Analysis of an SA210 Steel Used in High Pressure Evaporator Tube of the Gas Heat Recovery Boiler

Ling Shan Cen; Zhi Wu Wang; Liang Li; Yuan Mei Fei; Qian Qian Liu

doi:10.4028/www.scientific.net/AMR.791-793.493

Paper Titles

The Structural-Acoustic Optimization Analysis Based on Material Selection Optimization Approach
p.474

Analysis of Mechanical Properties and Exploration of Failure Mechanism for Nonwoven Reinforced Composites
p.480

Development of Pb-Free Austenitic Stainless Steels
p.486

Detection and Control of Building Materials Quality
p.490

Corrosion Failure Analysis of an SA210 Steel Used in High Pressure Evaporator Tube of the Gas Heat Recovery Boiler
p.493

Preparation and Tensile Properties of Carbon Fiber Reinforced Polyethylene Resin Composite
p.498

Analysis of Influence Factors in Step Heating Thermography to Composite Materials
p.502

Effect of Air Oxidation Treated Carbon Fiber on Mechanical Properties of Carbon Fiber Reinforced Polyethylene Resin Composite
p.506

A Study of the Earthquake-Resistance Performance of Frame Structures with Different Types of Stairs
p.510

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 791-793Corrosion Failure Analysis of an SA210 Steel Used...

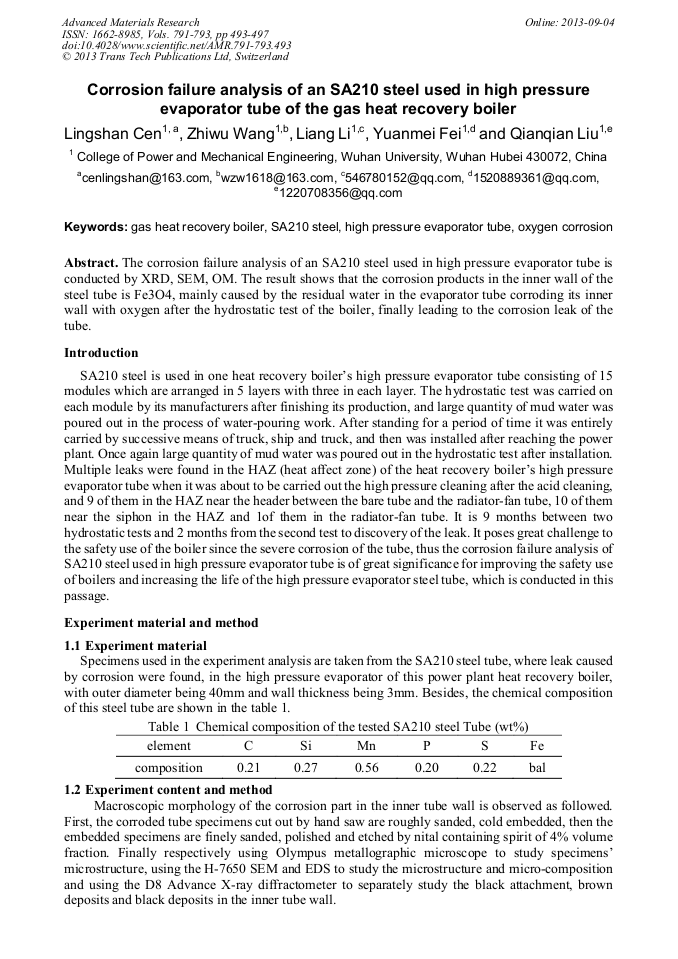

Corrosion Failure Analysis of an SA210 Steel Used in High Pressure Evaporator Tube of the Gas Heat Recovery Boiler

Abstract:

The corrosion failure analysis of an SA210 steel used in high pressure evaporator tube is conducted by XRD, SEM, OM. The result shows that the corrosion products in the inner wall of the steel tube is Fe3O4, mainly caused by the residual water in the evaporator tube corroding its inner wall with oxygen after the hydrostatic test of the boiler, finally leading to the corrosion leak of the tube.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 791-793)

Pages:

493-497

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.791-793.493

Citation:

Cite this paper

Online since:

September 2013

Authors:

Ling Shan Cen, Zhi Wu Wang, Liang Li, Yuan Mei Fei, Qian Qian Liu

Keywords:

Gas Heat Recovery Boiler, High Pressure Evaporator Tube, Oxygen Corrosion, SA210 Steel

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Xiangmin Ji. Research on the supervision and inspection of power plant boiler and security technology [D]. Shandong University, (2007).

Google Scholar

[2] Shaolin Chen. SA-210C development of high pressure Boiler Tube [J]. Hunan metallurgy, 2005, 06: 37-42.

Google Scholar

[3] Wenliang Tao, Wangzhou Wu, Shuhe Dai. Study on the heating furnace tube of high-temperature oxidation mechanism [J]. Journal of Guizhou University of Technology, 1999, 03: 37-41.

Google Scholar

[4] Bo Liu, Xiaotao Hu, Zhengchun Gong. Leakage reason analysis of steel pipe about SA-210C [J]. Boiler Manufacturing, 2007, 01: 37-39.

Google Scholar

[5] Likun He. Discussion on steel corrosion in high temperature oxidation [J]. Chemistry Teaching, 1994, 06: 42.

Google Scholar

[6] Xunjie Gong, Cangzhu Yang. Running mechanism and prevention method of oxygen corrosion of the boiler [J]. Changsha hydropower Normal University Journal of Natural Science, 1989, 02: 37-44.

Google Scholar

[7] Chunan Cao. The basic principles of metals electro-chemical corrosion [J]. Metallurgical Construction, 1981, 05: 50-53.

Google Scholar

[8] Baojun Liu. Corrosion and control of the material. Beijing: Beijing University of Aeronautics and Astronautics press, (1989).

Google Scholar
