Experimental Research on Sealing Structure Leak-Rate of Pressurized Tube

Abstract:

In aerospace engineering, seal is an important component of manned spacecraft life-support system. The pressurized tube sealing equipment is designed, and the experimental system of principle leak-rate of pressurized tube is built, and the experimental theory of the principle leak-rate of pressurized tube is carried out. The experimental results show that leak-rate of pressurized tube is related with the internal pressure of pressurized tube, and sealing ability can be adjusted by controlling the pressure in tube. And leak-rate of pressurized tube is involved with sealed pressure differential, and the bigger pressure differential is, the larger leak-rate becomes. And pressurized tube can fit for big structure transfiguration, which provides condition for lessening structural weight. And the pressurized tube can meet the demands of sealing of space station.

You might also be interested in these eBooks

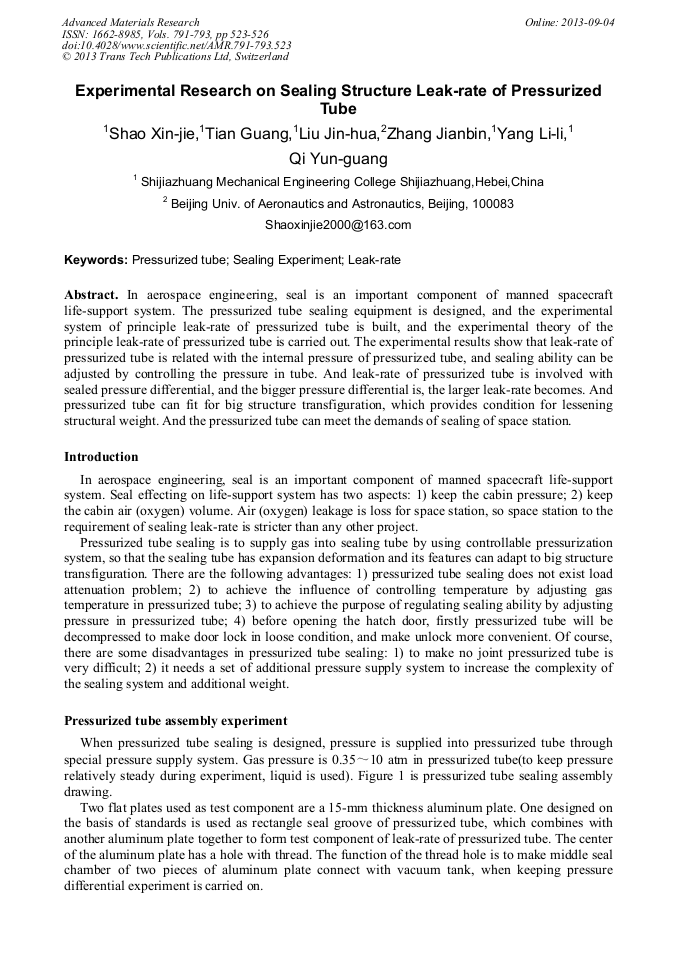

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 791-793)

Pages:

523-526

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.791-793.523

Citation:

Cite this paper

Online since:

September 2013

Authors:

Xin Jie Shao, Guang Tian, Jin Hua Liu, Jian Bin Zhang, Li Li Yang, Yun Guang Qi

Keywords:

Leak-Rate, Pressurized Tube, Sealing Experiment

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Rodriguez P L, Markovitch R. Space station freedom seal leakage rate analysis and testing summary: Air leaks in ambient versus vacuum exit condition. NASA TM-103604, (1992).

Google Scholar

[2] Wilcock D F, Bjerkile J and Cheng H S. Design of floated shoe close clearance seals for supersonic jet engine compressors. Transactions of the ASME, Journal of Lubrication Technology, 1968, 90: 500～509.

DOI: 10.1115/1.3601586

Google Scholar

[3] Weddendorf B. Development of a new seal for large openings of pressurized Spacecraft. NASA TM-108444.

Google Scholar

[4] Weddendorf B. Double Face Sealing Device. U.S. patent: 5052152, (1991).

Google Scholar

[5] Xinjie Shao, Jianbin Zhang. Experimental research on sealing structure of space station hatch door[J]. Lubrication Engineering, 2002(5)：19-21.

Google Scholar

[6] Weddendorf B. Development of a new seal for large openings of pressurized Spacecraft. NASA TM-108444.

Google Scholar

[7] Lach C L. Effect of temperature and O-ring gland finish on sealing ability of Viton V747-75. NASA TP-3391, (1993).

Google Scholar
