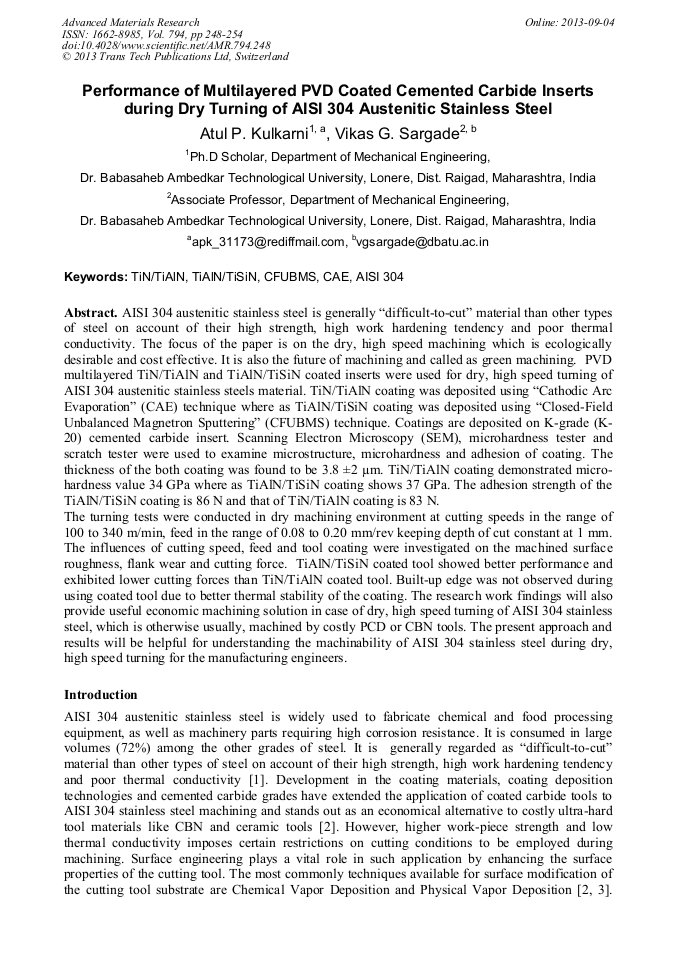

Performance of Multilayered PVD Coated Cemented Carbide Inserts during Dry Turning of AISI 304 Austenitic Stainless Steel

Abstract:

AISI 304 austenitic stainless steel is generally “difficult-to-cut” material than other types of steel on account of their high strength, high work hardening tendency and poor thermal conductivity. The focus of the paper is on the dry, high speed machining which is ecologically desirable and cost effective. It is also the future of machining and called as green machining. PVD multilayered TiN/TiAlN and TiAlN/TiSiN coated inserts were used for dry, high speed turning of AISI 304 austenitic stainless steels material. TiN/TiAlN coating was deposited using “Cathodic Arc Evaporation” (CAE) technique where as TiAlN/TiSiN coating was deposited using “Closed-Field Unbalanced Magnetron Sputtering” (CFUBMS) technique. Coatings are deposited on K-grade (K-20) cemented carbide insert. Scanning Electron Microscopy (SEM), microhardness tester and scratch tester were used to examine microstructure, microhardness and adhesion of coating. The thickness of the both coating was found to be 3.8 ±2 µm. TiN/TiAlN coating demonstrated micro-hardness value 34 GPa where as TiAlN/TiSiN coating shows 37 GPa. The adhesion strength of the TiAlN/TiSiN coating is 86 N and that of TiN/TiAlN coating is 83 N.The turning tests were conducted in dry machining environment at cutting speeds in the range of 100 to 340 m/min, feed in the range of 0.08 to 0.20 mm/rev keeping depth of cut constant at 1 mm. The influences of cutting speed, feed and tool coating were investigated on the machined surface roughness, flank wear and cutting force. TiAlN/TiSiN coated tool showed better performance and exhibited lower cutting forces than TiN/TiAlN coated tool. Built-up edge was not observed during using coated tool due to better thermal stability of the coating. The research work findings will also provide useful economic machining solution in case of dry, high speed turning of AISI 304 stainless steel, which is otherwise usually, machined by costly PCD or CBN tools. The present approach and results will be helpful for understanding the machinability of AISI 304 stainless steel during dry, high speed turning for the manufacturing engineers.

• Periodical: Advanced Materials Research (Volume 794)
• Pages: 248-254
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.794.248
• Online since: September 2013
• Authors: Atul P. Kulkarni, Vikas G. Sargade
• Keywords: AISI 304, CFUBMS, Computer Aided Engineering (CAE), TiAlN/TiSiN, TiN/TiAlN

References

[1] I. Minoru, K. Norihide, O. Naoya, F. Yoshio, S. Akira, M. Hiroyuki, O. Susumu, M. Kouta, Development of coated insert grades Acecoat AC610M/AC630M for stainless steel turning, SEI Technical Review. 61 (2006) 83-87.

[2] R.F. Bunshah, Handbook of hard coatings, Noyes Publications, New Jersey, (2001).

[3] V.G. Sargade, S. Gangopadhyay, S. Paul, A.K. Chattopadhyay, Effect of coating thickness and dry performance of tin film deposited on cemented carbide inserts using CFUBMS, Mater. Manuf. Processes. 26 (2011) 1-6.

DOI: 10.1080/10426914.2010.526978

[4] R.D. Arnell, P.J. Kelly, J.W. Bradley, Recent developments in pulsed magnetron sputtering, Surf. Coat. Technol. 188–189 (2004) 158–163.

DOI: 10.1016/j.surfcoat.2004.08.010

[5] R. Wuhrer, W.Y. Yeung, Grain refinement with increasing magnetron discharge power in sputter deposition of nanostructured titanium aluminium nitride coatings, Scripta Materialia 50 (2004) 813–818.

DOI: 10.1016/j.scriptamat.2003.12.022

[6] Wei Yong-qiang, Li Chun-wei, Gong Chun-zhi, Tian Xiu-bo, Yang Shi-qin, Microstructure and mechanical properties of TiN/TiAlN multilayer coatings deposited by arc ion plating with separate targets, Tran. Nonferrous Met. Soc. Chin. 21 (2011).

DOI: 10.1016/s1003-6326(11)60823-6

[7] Soo Hyun Kima, Jong Kuk Kimb, Kwang Ho Kim, Influence of deposition conditions on the microstructure and mechanical properties of Ti–Si–N films by DC reactive magnetron sputtering, Thin Solid Films. 420 –421 (2002) 360–365.

DOI: 10.1016/s0040-6090(02)00833-7

[8] Chi-Lung Chang, Wei-Chih Chen, Pi-Chuen Tsai, Wei-Yu Ho, Da-Yung Wang, Characteristics and performance of TiSiN/TiAlN multilayers coating synthesized by cathodic arc plasma evaporation, Surf. Coat. Technol. 202 (4-7) (2007) 987-992.

DOI: 10.1016/j.surfcoat.2007.06.024

[9] L.Y. Zheng, L.X. Zhao, H.W. Xiong, Tribological properties of TiAlN-coated cermets Rare Metals. 1 (2009) 57−62.

DOI: 10.1007/s12598-009-0011-9

[10] Chen L, Du Y, Yin F, Li J., Mechanical properties of (Ti, Al)N monolayer and TiN/(Ti, Al)N multilayer coatings. Int. J. Refract. Met. H, 25(1) (2007) 72−76.

DOI: 10.1016/j.ijrmhm.2006.01.005

[11] M. Braic, M. Balaceanu, V. Braic, A. Vladescu, G. Pavelescu, M. Albulescu, Synthesis and characterization of TiN, TiAIN and TiN/TiAIN biocompatible coatings. Surf. Coat. Technol, 200(1−4) (2005) 1014−1017.

DOI: 10.1016/j.surfcoat.2005.02.140

[12] I. Korkut, M. Kasap, Determination of optimum cutting parameters during machining of AISI 304 austenitic stainless steel. Mater. Des. 25 (2004) 303-305.

DOI: 10.1016/j.matdes.2003.10.011

[13] I. Ciftci, Machining of austenitic stainless steels using CVD multi-layer coated cemented carbide tools. Tribol. Int. 39 (2006) 565-569.

DOI: 10.1016/j.triboint.2005.05.005

[14] L. Chen, Y. Du, Mechanical properties of (Ti, Al)N monolayer and TiN/(Ti, Al)N multilayer coatings. Int. J. Refract. Met. Hard Mater. 25 (2007) 72-76.

DOI: 10.1016/j.ijrmhm.2006.01.005

[15] L. Chen, Y. Du, S.Q. Wang, Mechanical properties and microstructural evolution of TiN coatings alloyed with Al and Si. Mater. Sci. Eng., A, (2008) 1-5.

[16] Noordin, M.Y., Venkatesh, V.C., Sharif. S., 2007. Dry turning of tempered martensitic stainless tool steel using coated cermet and coated carbide tools. J. Mater. Process. Technol. 185, 83–90.

DOI: 10.1016/j.jmatprotec.2006.03.137

[17] A.I. Fernández-Abia, J. Barreiro, L.N. López de Lacalle, S. Martínez , Effect of very high cutting speeds on shearing, cutting forces and roughness in dry turning of austenitic stainless steels. Int. J. Adv. Manuf. Technol. 57 (2011) 61–71.

DOI: 10.1007/s00170-011-3267-9
