Anodic Polarization Behavior of Cold Worked Austenitic Stainless Steel

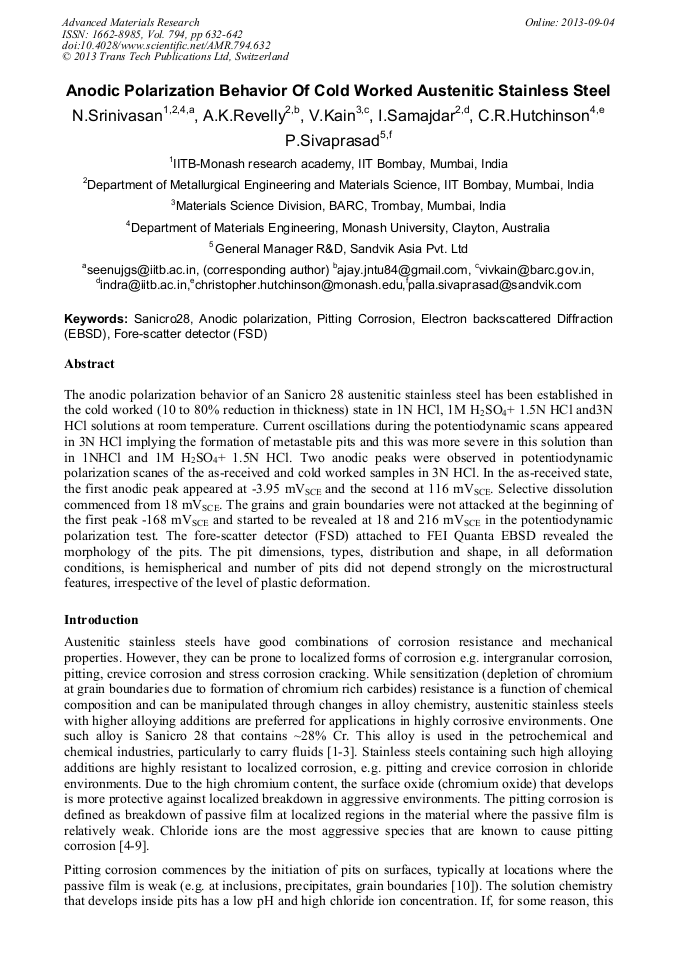

Abstract:

The anodic polarization behavior of Sanicro 28 austenitic stainless steels has been established in the cold worked (10 to 80% reduction in thickness) samples in 1N HCl, 1M H₂SO₄+ 1.5N HCl and 3N HCl solutions at room temperature. The current oscillations during the potentiodynamic scans appeared in 3N HCl implying formation of meta stable pits and this solution more severe than 1N HCl and 1M H₂SO₄+ 1.5N HCl. Two anodic peaks were observed in as-received and the cold worked samples in 3N HCl. In as-received state, the first anodic peak appeared at-3.95 mV_SCE and the second anodic peak appeared at 116 mV_SCE. It was established that selective dissolution started from 18mV_SCE. The grains and grain boundaries were not attacked at the beginning of the first peak-168 mV_SCE and started revealing at 18 and 216 mV_SCE in the potentiodynamic polarization test. The fore-scatter detector (FSD) attached to FEI Quanta EBSD revealed the pitting morphology of the specimens. It is shown that pit dimensions, types, distribution, the shape of pits in all deformation conditions is hemispherical and number of pits did not depend on the microstructural features, irrespective of the plastic deformation and it may not be related to severity of plastic deformation.

• Periodical: Advanced Materials Research (Volume 794)
• Pages: 632-642
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.794.632
• Online since: September 2013
• Authors: Narayanan Srinivasan, Ajay Kumar Revelly, Vivekanand Kain, Indradev Samajdar, Christopher R. Hutchinson, Palla Sivaprasad
• Keywords: Anodic Polarization, Electron Backscattered Diffraction (EBSD), Fore-Scatter Detector (FSD), Pitting Corrosion, Sanicro28

References

[1] S. Bernhardsson, P. Norberg, H. Eriksson, O. Forssell, Selection of stainless steels for refineries and the petrochemical industry, Anti-Corrosion Methods and Materials, 33 (1986) 14-17.

DOI: 10.1108/eb020412

[2] B. Larsson, U. Lundell, S. Bukovinsky, Special stainless steels for the process industry, Materials & Design, 6 (1985) 306-312.

DOI: 10.1016/0261-3069(85)90013-5

[3] T. Bellezze, G. Roventi, R. Fratesi, Electrochemical characterization of three corrosion-resistantalloys after processing for heating-element sheathing, Electrochimica Acta, 44 (2004) 3005-3014.

DOI: 10.1016/j.electacta.2004.01.060

[4] J. Keir, Experiments and observation the dissoultions of metals in acids, and their precipitation; with an account of new compound acid menstrum useful in some mechanical operations of parting metals, Philosophical Transcation of the Royal Society of London, (1790) 359-384.

DOI: 10.1098/rstl.1790.0024

[5] N. Sato, Anodic Breakdown of Passive Films on Metals, Journal of The Electrochemical Society, 129 (1982) 255-260.

DOI: 10.1149/1.2123808

[6] N. Sato, The Stability of Pitting Dissolution of Metals in Aqueous Solution, Journal of The Electrochemical Society, 129 (1982) 260-264.

DOI: 10.1149/1.2123809

[7] N. Sato, An overview on the passivity of metals, Corrosion Science, 31 (1990) 1-19.

[8] M.G. Alvarez, J.R. Galvele, Pitting Corrosion, in: Tony, J. A. Richardson (Eds. ), Shreir's Corrosion, Elsevier, oxford, 2010, pp.772-800.

DOI: 10.1016/b978-044452787-5.00030-5

[9] ASM Handbook, Volume 13A-Corrosion: Fundamentals, Testing, and Protection, nineth edit., ASM International, (2003).

[10] E. McCafferty, Passivity, Introduction to Corrosion Science, Springer, New York: 2010, pp.209-262.

[11] G.C. Palit, V. Kain, H.S. Gadiyar, Electrochemical Investigations of Pitting Corrosion in Nitrogen-Bearing Type 316LN Stainless Steel. Corrosion, 49 (1993) 977-991.

DOI: 10.5006/1.3316025

[12] Y.F. Cheng, J.L. Luo, Metastable Pitting of Carbon Steel under Potentiostatic Control, Journal of the Electrochemical Society 146 (1999) 970-976.

DOI: 10.1149/1.1391707

[13] Philippe Marcus, Corrosion Mechanisms in Theory and Practice, third ed., Springer, 2010. pp.209-262.

[14] M.A. Amin, Metastable and stable pitting events on Al induced by chlorate and perchlorateanions Polarization, XPS and SEM studies, Electrochimica Acta, 54 (2009) 1857-1863.

DOI: 10.1016/j.electacta.2008.10.009

[15] P.C. Pistorius, G.T. Burstein, Aspects of the effects of electrolyte composition on the occurrence of metastable pitting on stainless steel, Corrosion Science, 36 (1994) 525-538.

DOI: 10.1016/0010-938x(94)90041-8

[16] P.C. Pistorius, G.T. Burstein, Metastable Pitting Corrosion of Stainless Steel and the Transition to Stability, Philosophical Transactions Physical Sciences and Engineering, 341 (1992) 531-559.

DOI: 10.1098/rsta.1992.0114

[17] Y.M. Tang, Y. Zuo, X.H. Zhao, The metastable pitting behaviors of mild steel in bicarbonate and nitrite solutions containing Cl-, Corrosion Science, 50 (2008) 989-994.

DOI: 10.1016/j.corsci.2007.12.003

[18] L. Peguet, B. Malki, B. Baroux, Influence of cold working on the pitting corrosion resistance of stainless steels, Corrosion Science, 49 (2007) 1933-(1948).

DOI: 10.1016/j.corsci.2006.08.021

[19] L. Peguet, B. Malki, B. Baroux, Effect of austenite stability on the pitting corrosion resistance of cold worked stainless steels, Corrosion Science, 51 (2009) 493-498.

DOI: 10.1016/j.corsci.2008.12.026

[20] U. Kamachi Mudali, P. Shankar, S. Ningshen, R.K. Dayal, H.S. Khatak, B. Raj, On the Pitting corrosion resistance of nitrogen alloyed cold worked austenitic stainless steels, CorrosionScience, 44 (2002) 2183-2198.

DOI: 10.1016/s0010-938x(02)00035-5

[21] R.F.A. Jargelius-Pettersson, Electrochemical investigation of the influence of nitrogen alloying on pitting corrosion of austenitic stainless steels. Corrosion Science, 41 (1999) 1639-1664.

DOI: 10.1016/s0010-938x(99)00013-x

[22] J. Shu, H. Bi, X. Li, Z. Xu, The effect of copper and molybdenum on pitting corrosion and stress corrosion cracking behavior of ultra-pure ferritic stainless steels, Corrosion Science, 57 (2012)89-98.

DOI: 10.1016/j.corsci.2011.12.030

[23] K. Sugimoto, Y. Sawada, The role of molybdenum additions to austenitic stainless steels in theinhibition of pitting in acid chloride solutions, Corrosion Science, 17 (1977) 425-445.

DOI: 10.1016/0010-938x(77)90032-4

[24] R.C. Newman, T. Shahrabi, The effect of alloyed nitrogen or dissolved nitrate ions on the anodic behaviour of austenitic stainless steel in hydrochloric acid, Corrosion Science, 27 (1987) 827-838.

DOI: 10.1016/0010-938x(87)90040-0

[25] Y.X. Qiao, Y.G. Zheng, W. Ke, P.C. Okafor, Electrochemical behaviour of high nitrogen stainless steel in acidic solutions, Corrosion Science, 51 (2009) 979-986.

DOI: 10.1016/j.corsci.2009.02.026

[26] G.O. Ilevbare, G.T. Burstein, The role of alloyed molybdenum in the inhibition of pitting corrosion in stainless steels, Corrosion Science, 43 (2001) 485-513.

DOI: 10.1016/s0010-938x(00)00086-x

[27] R. Qvarfort, Some observations regarding the influence of molybdenum on the pitting corrosion resistance of stainless steels, Corrosion Science, 40 (1998) 215-223.

DOI: 10.1016/s0010-938x(97)00118-2

[28] T. Sourisseau, E. Chauveau, B. Baroux, Mechanism of copper action on pitting phenomena observed on stainless steels in chloride media. Corrosion Science, 47 (2005) 1097-1117.

DOI: 10.1016/j.corsci.2004.05.024

[29] A.S. Hamdy, E. El-Shenawy, T. El. Bitar, Electrochemical Impedance Spectroscopy Study of the Corrosion Behavior of Some Niobium Bearing Stainless Steels in 3. 5% NaCl, International Journal of Electrochemical Science, 1 (2006) 171-180.

DOI: 10.1016/j.matlet.2006.10.043

[30] J.H. Potgieter, Corrosion of Passive Alloys: The effect of nobel additions in : Tony, J. A. Richardson (Eds), Shreir's Corrosion Elsevier, Oxford, 2010, pp.2224-2249.

DOI: 10.1016/b978-044452787-5.00188-8

[31] T. Hong, M. Nagumo, Effect of surface roughness on early stages of pitting corrosion of Type 301 stainless steel, Corrosion Science, 39 (1997) 1665-1672.

DOI: 10.1016/s0010-938x(97)00072-3

[32] K. Sasaki, G.T. Burstein, The generation of surface roughness during slurry erosion- corrosion and its effect on the pitting potential, Corrosion Science, 38 (1996) 2111-2120.

DOI: 10.1016/s0010-938x(96)00066-2

[33] G.T. Burstein, P.C. Pistorius, Surface Roughness and the Metastable Pitting of Stainless Steel in Chloride solutions, Corrosion, 51 (1995) 380-385.

DOI: 10.5006/1.3293603

[34] R. Stefec, F. Franz, A study of the pitting corrosion of cold-worked stainless steel, CorrosionScience, 18 (1978) 161-168.

DOI: 10.1016/s0010-938x(78)80086-9

[35] F. Ruel, P. Volovitch, L. Peguet, A. Gaugain, K. Ogle: submitted to Corrosion (2013).

[36] L. Felloni, S. Sostero Traverso, G.L. Zucchini, G.P. Cammarota, Investigation on the second anodic current maximum on the polarization curves of commercial stainless steels in sulphuric acid, Corrosion Science, 13 (1973) 773-789.

DOI: 10.1016/s0010-938x(73)80015-0

[37] M.B. Rockel, Interpretation of the Second Anodic Current Maximum on Polarization Curves of Sensitized Chromium Steels in 1N H2 SO4, Corrosion, 27 (1971) 95-103.

DOI: 10.5006/0010-9312-27.3.95

[38] A.A. Hermas, M.S. Morad, K. Ogura, A correlation between phosphorous impurity in stainless steel and a second anodic current maximum in H2SO4, Corrosion Science, 41 (1999) 2251-2266.

DOI: 10.1016/s0010-938x(99)00046-3

[39] V. Randle, The coincidence site lattice and the sigma enigma, Materials Characterization, 47(2001) 411-416.

DOI: 10.1016/s1044-5803(02)00193-6

[40] V. Randle, Sigma-Boundary Statistics by Length and Number, Interface Science, 10 (2002) 271-277.

[41] V. Randle, The influence of annealing twinning on microstructure evolution, Journal of Materials Science, 40 (2005) 853-859.

DOI: 10.1007/s10853-005-6501-8

[42] V. Randle, Twinning-related grain boundary engineering, Acta Materialia, 52 (2004) 4067-4081.

DOI: 10.1016/j.actamat.2004.05.031
