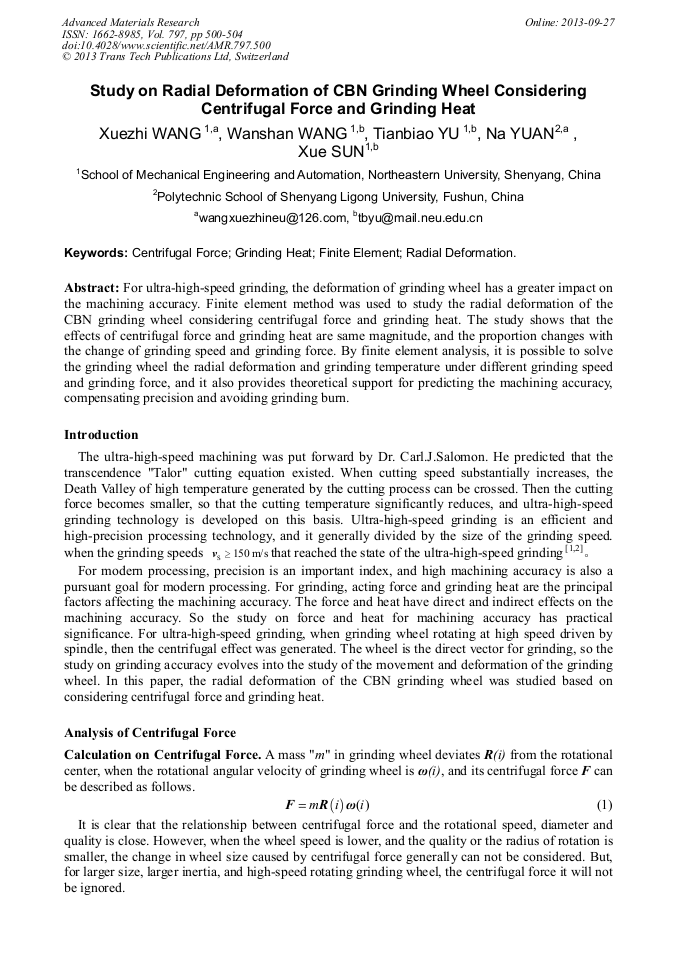

Study on Radial Deformation of CBN Grinding Wheel Considering Centrifugal Force and Grinding Heat

Abstract:

For ultra-high-speed grinding, the deformation of grinding wheel has a greater impact on the machining accuracy. Finite element method was used to study the radial deformation of the CBN grinding wheel considering centrifugal force and grinding heat. The study shows that the effects of centrifugal force and grinding heat are same magnitude, and the proportion changes with the change of grinding speed and grinding force. By finite element analysis, it is possible to solve the grinding wheel the radial deformation and grinding temperature under different grinding speed and grinding force, and it also provides theoretical support for predicting the machining accuracy, compensating precision and avoiding grinding burn.

• Periodical: Advanced Materials Research (Volume 797)
• Pages: 500-504
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.797.500
• Online since: September 2013
• Authors: Xue Zhi Wang, Wan Shan Wang, Tian Biao Yu, Na Yuan, Xue Sun
• Keywords: Centrifugal Force, Finite Element, Grinding Heat, Radial Deformation

References

[1] H.H. Zhao, B.F. Feng, G.B. Gao and G.Q. Cai: Journal of Northeastern University, Vol. 24(2003), pp.564-568.

[2] M.J. Jackson, C.J. Davis, M.P. Hitchiner and B. mills: Materials Processing Technology, 2011, pp.78-88.

[3] T.B. Yu, X.Z. Wang, P. Guan, W.S. Wang: Journal of Mechanical Engineering, Vol. 48(2012), pp.183-188.

[4] J. T, G.Q. Cai: Journal of Manufacturing Science and Engineering, Vol. 123(2001), pp.185-190.

[5] S. Ramanath, M.C. Shaw: ASME Journal of Engineering for Industry, Vol. 110(1988), pp.15-18.

[6] Y. Yan: Hunan University, (2009).

[7] S.Q. Gao: Northeastern University, (2009).
