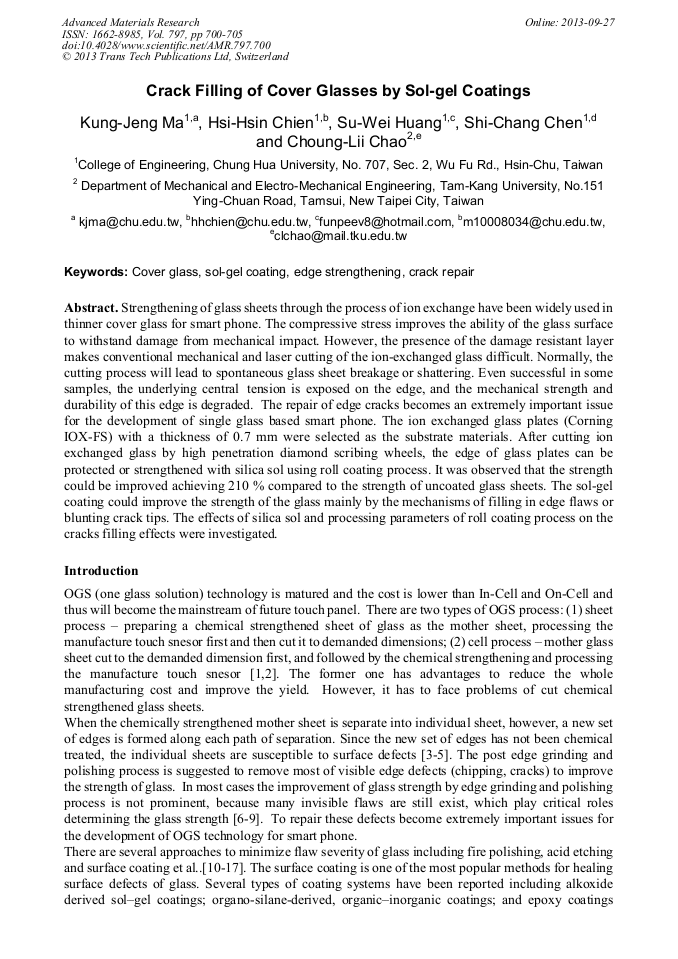

Crack Filling of Cover Glasses by Sol-Gel Coatings

Abstract:

Strengthening of glass sheets through the process of ion exchange have been widely used in thinner cover glass for smart phone. The compressive stress improves the ability of the glass surface to withstand damage from mechanical impact. However, the presence of the damage resistant layer makes conventional mechanical and laser cutting of the ion-exchanged glass difficult. Normally, the cutting process will lead to spontaneous glass sheet breakage or shattering. Even successful in some samples, the underlying central tension is exposed on the edge, and the mechanical strength and durability of this edge is degraded. The repair of edge cracks becomes an extremely important issue for the development of single glass based smart phone. The ion exchanged glass plates (Corning IOX-FS) with a thickness of 0.7 mm were selected as the substrate materials. After cutting ion exchanged glass by high penetration diamond scribing wheels, the edge of glass plates can be protected or strengthened with silica sol using roll coating process. It was observed that the strength could be improved achieving 210 % compared to the strength of uncoated glass sheets. The sol-gel coating could improve the strength of the glass mainly by the mechanisms of filling in edge flaws or blunting crack tips. The effects of silica sol and processing parameters of roll coating process on the cracks filling effects were investigated.

• Periodical: Advanced Materials Research (Volume 797)
• Pages: 700-705
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.797.700
• Online since: September 2013
• Authors: Kung Jeng Ma, Hsi Hsin Chien, Su Wei Huang, Shi Chang Chen, Choung Lii Chao
• Keywords: Cover Glass, Crack Repair, Edge Strengthening, Sol-Gel Coating

References

[1] G. L. Barrett, R. Omote, Projected Capacitive Touch Screens, Published in the Information Display Magazine, (2008).

[2] Wintek Capacitive Touch Panel, Wintk Internal Report, http: /www. wintek. com. tw.

[3] R. Gy, Ion Exchange for Glass Strengthening, Materials Science and Engineering：B, Vols. 149, pp.159-165, (2008).

[4] http: /www. corning. com/displaytechnologies/en/index. aspx.

[5] Mitsuboshi Diamond Industrial Co., Ltd., http: /www. mitsuboshidiamond. com.

[6] D. B. Marshall , B. R. Lawn, Surface flaw in glass, in Strength of Inorganic Glass, Plenum Press, pp.171-184, (1985).

[7] J. R. Varner, The Practical Strength of Glass, in Strength of Inorganic Glass, Plenum Press, p.389–406, (1985).

[8] Brian Lawn, Fracture of Brittle Materials, Cambridge University Press, (1993).

[9] Jaroslav Menčík, Strength and Fracture of Glass and Ceramics, Elsevier, (1992).

[10] B. Proctor, The Effects of Hydrofluoric Acid Etching on the Strength of Glasses, Physics and Chemistry of Glasses, Vols. 3, pp.7-27, (1962).

[11] E. K. Pavelchek, R. H. Doremus, Fracture Strength of Soda-Lime Glass After Etching, Journal of Materials Science, Vols. 9, pp.1803-1808, (1974).

DOI: 10.1007/bf00541749

[12] P. Zuccelli, Oxy Combustion for Glass Conditioning and Fire Polishing, International Glass Journal, No. 133, p.26–31, (2004).

[13] J. E. Ritter, M. R. Lin, Effect of Polymer Coatings on the Strength and Fatigue Behaviour of Indented Soda-Lime Glass, Glass Technology, Vols. 32, pp.51-54, (1991).

[14] B. R. Whittle, Water-Based Epoxy Resin Coatings for the Strengthening of Flat Glass Edges, PhD Thesis, University of Sheffield, (2002).

[15] R. J. Hand, B. Ellis, B. R. Whittle, F. H. Wang, Epoxy Based Coatings on Glass: Strengthening Mechanisms, Journal of Non-Crystalline Solids, Vols. 315, pp.276-287, (2003).

DOI: 10.1016/s0022-3093(02)01611-3

[16] M. Wen, J. M. Chabagno, G. Silverman, M. Bourrel, Edge-Strengthening of Flat Glass with Acrylate Coatings, Journal of Non-Crystalline Solids, Vols. 351, p.323–330, (2005).

DOI: 10.1016/j.jnoncrysol.2008.08.004

[17] S. Pellice, U. Gilabert, C. Solier, Y. Castro, A. Dura´n, Mechanical behavior of glass reinforced with SiO2 hybrid sol–gel coatings, Journal of Non-Crystalline Solids, Vols. 348, p.172–179, (2004).

DOI: 10.1016/j.jnoncrysol.2004.08.142

[18] C. David Cranmer, W. Stephen Freiman, S. Grady White, and S. Alan Raynes, Moisture— and Water—Induced Crack Growth in Optical Materials, SPIE, Vols. l, pp.152-153, (1990).

[19] M. Grzelczak, J. Vermant, M. E. Furst, and M. L. Liz-Marzan, Directed self-assembly of nanoparticles, ACS Nano, Vols. 4, p.3591–3605, (2010).

DOI: 10.1021/nn100869j

[20] Joanna R. Groza, Nanosintering, NanoStructured Materials, Vols. 12, pp.987-992, (1999).

DOI: 10.1016/s0965-9773(99)00284-6
