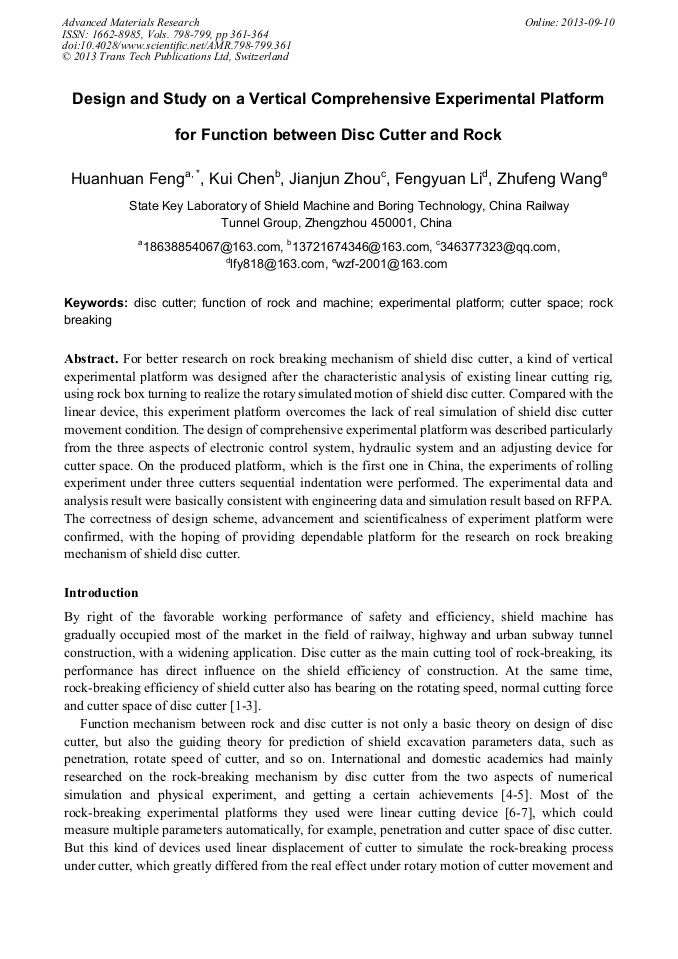

Design and Study on a Vertical Comprehensive Experimental Platform for Function between Disc Cutter and Rock

Abstract:

For better research on rock breaking mechanism of shield disc cutter, a kind of vertical experimental platform was designed after the characteristic analysis of existing linear cutting rig, using rock box turning to realize the rotary simulated motion of shield disc cutter. Compared with the linear device, this experiment platform overcomes the lack of real simulation of shield disc cutter movement condition. The design of comprehensive experimental platform was described particularly from the three aspects of electronic control system, hydraulic system and an adjusting device for cutter space. On the produced platform, which is the first one in China, the experiments of rolling experiment under three cutters sequential indentation were performed. The experimental data and analysis result were basically consistent with engineering data and simulation result based on RFPA. The correctness of design scheme, advancement and scientificalness of experiment platform were confirmed, with the hoping of providing dependable platform for the research on rock breaking mechanism of shield disc cutter.

• Periodical: Advanced Materials Research (Volumes 798-799)
• Pages: 361-364
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.798-799.361
• Online since: September 2013
• Authors: Huan Huan Feng, Kui Chen, Jian Jun Zhou, Feng Yuan Li, Zhu Feng Wang
• Keywords: Cutter Space, Disc Cutter, Experimental Platform, Function of Rock, Machine, Rock breaking

References

[1] Y. Xia: Journal of Basic Science and Engineering, Vol. 20 2012 No. 3: pp.500-506.

[2] H. Li, S. Wang, J. Wang: Modern Tunneling Technology, Vol. 49 2012 No. 3: pp.193-196.

[3] C. Ji, Z. Zhang, D. Ye: Journal of Basic Science and Engineering, Vol. 16 2008 No. 2: pp.255-263.

[4] K. Song: Chinese Journal of Rock Mechanics and Engineering, Vol. 27 2008 No. S2: pp.3875-3881.

[5] J. Yang: The Force Analysis and Numerical Simulation Study on Disk Cutter Cutting Rock (Ph.D., North China Electric Power University, China 2007).

[6] Q. Wu. Mechanical Analysis of Rock Breaking by Disc Cutter During Shield Tunneling in Mixed Face Ground Conditions (Ph.D., Jinan University, China 2011).

[7] K. Zhang. Study on the Broken Characteristics of Rock under Shield Disc Cutter and Vibration Performance of It (Ph.D., Central South University, China 2010).

[8] L. Ozdemir, R. Miller: Earth Mechanics Institute Colorado School of Mines, Vol. 12 1986 No. 23: pp.105-132.
