The Design and Analysis on 200 Liters Large Material Barrels with Double L-Rings

De Qiang Zhang; Yu Li; Jin Hua Li

doi:10.4028/www.scientific.net/AMR.805-806.1712

Paper Titles

Research on Driving Factors of Green Innovation in China’s Auto Parts Manufacturing Enterprises
p.1685

State of Charge Estimation of Power Lithium-Ion Battery Based on Sliding Mode Observer
p.1692

Study on Cutting Tooth Strength of Spiral Drilling Shearer Based on LS-DYNA
p.1703

Research on Cavitation and Runaway Tests of Mixed-Flow Pump with Different Blade Angles
p.1708

The Design and Analysis on 200 Liters Large Material Barrels with Double L-Rings
p.1712

Effect on Position of Electromagnetic Stirring on Inclusion Behaviors in Billet
p.1716

Units Commitment Optimization of Pumping Station Based on Velocity Uniformity Analysis
p.1720

The Research on the Reliability Distribution Model of Wire Cut Electrical Discharge Machining
p.1724

Air Flow Simulation in High-Pressure Fan with Splitter Blade
p.1730

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 805-806The Design and Analysis on 200 Liters Large...

The Design and Analysis on 200 Liters Large Material Barrels with Double L-Rings

Abstract:

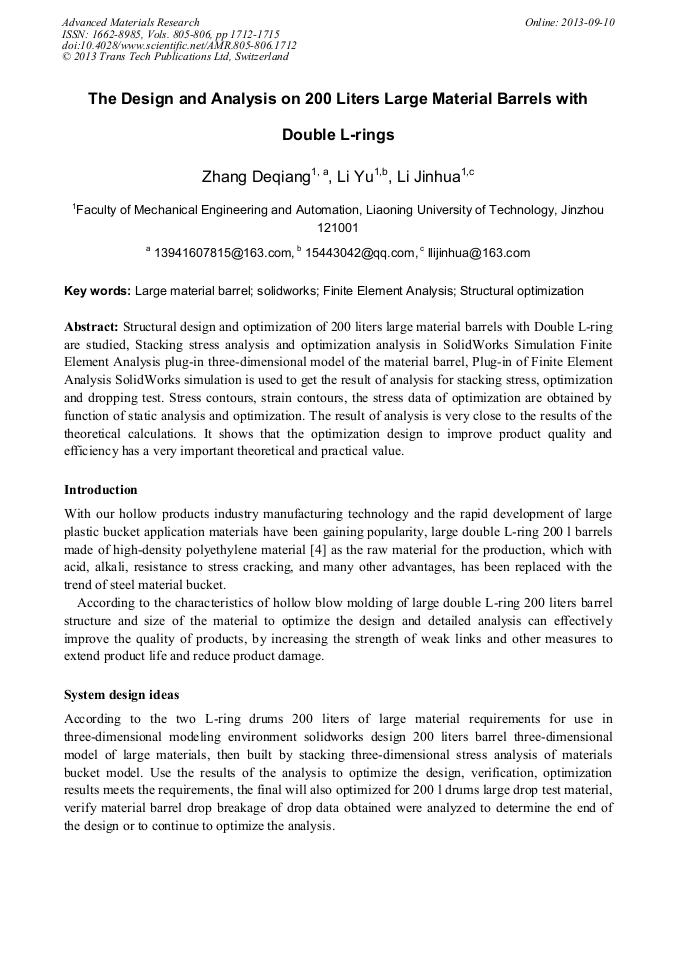

Structural design and optimization of 200 liters large material barrels with Double L-ring are studied, Stacking stress analysis and optimization analysis in SolidWorks Simulation Finite Element Analysis plug-in three-dimensional model of the material barrel, Plug-in of Finite Element Analysis SolidWorks simulation is used to get the result of analysis for stacking stress, optimization and dropping test. Stress contours, strain contours, the stress data of optimization are obtained by function of static analysis and optimization. The result of analysis is very close to the results of the theoretical calculations. It shows that the optimization design to improve product quality and efficiency has a very important theoretical and practical value.
