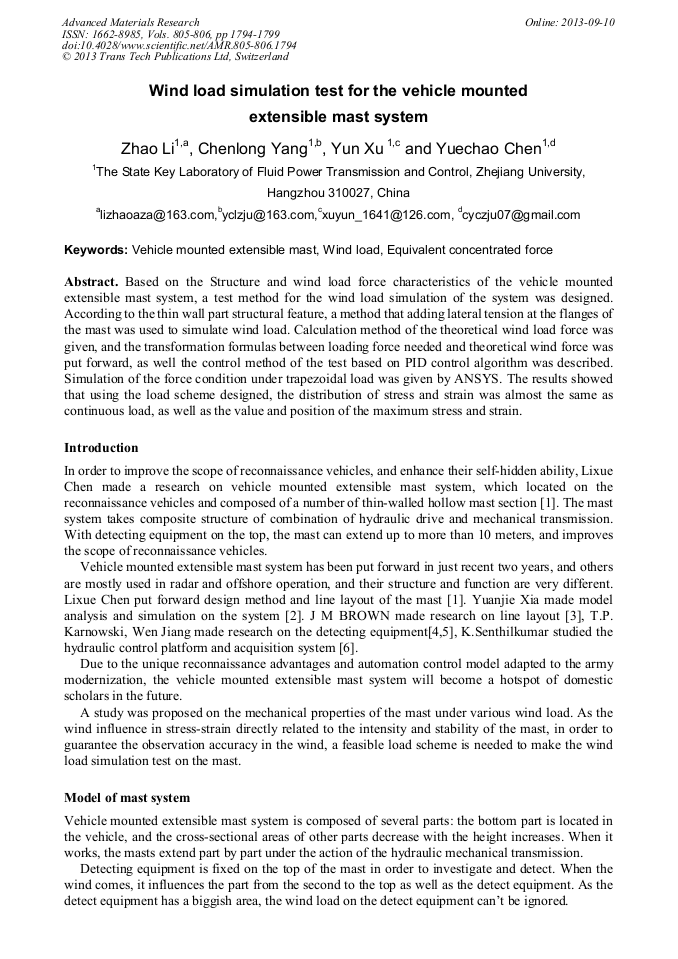

Wind Load Simulation Test for the Vehicle Mounted Extensible Mast System

Abstract:

Based on the Structure and wind load force characteristics of the vehicle mounted extensible mast system, a test method for the wind load simulation of the system was designed. According to the thin wall part structural feature, a method that adding lateral tension at the flanges of the mast was used to simulate wind load. Calculation method of the theoretical wind load force was given, and the transformation formulas between loading force needed and theoretical wind force was put forward, as well the control method of the test based on PID control algorithm was described. Simulation of the force condition under trapezoidal load was given by ANSYS. The results showed that using the load scheme designed, the distribution of stress and strain was almost the same as continuous load, as well as the value and position of the maximum stress and strain.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 1794-1799
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.1794
• Online since: September 2013
• Authors: Zhao Li*, Chen Long Yang, Yun Xu, Yue Chao Chen
• Keywords: Equivalent Concentrated Force, Vehicle Mounted Extensible Mast, Wind Load

References

[1] Lixue Chen, Yu Liu, Li Rui-feng: Journal Of Applied Optics. Vol. 30 (2009), p.187 (In Chinese).

[2] Yuanjie Xia, Hongjian Duan, etc: Machinery & Electronics. Vol. 10(2010), p.73 (In Chinese).

[3] J.M. BROWN, U.S. Patent 6, 158, 555. (2000).

[4] T.P. Karnowski et al, in: Proceedings of SPIE , Vol. 7665, (2010).

[5] Wen Jiang, Anthony J. Kirkup, David Grundy: J Physiol Vol. 15 (2011), p.3867.

[6] K. Senthilkumar, M. Chidanand, et al: Defence Science Journal, Vol. 60 (2010), p.169.

[7] Jianzhong Lin, Xiaodong Ruan, Bangguo Chen, et al, in: Fluid Mechanics, edited by Tsinghua University Press, Beijing(2005), p.120.

[8] Xiaoguang Yao, Xiaosong Guo, et al: Acta Armamentarii, Vol. 29 (2008), p.718 (In Chinese).
