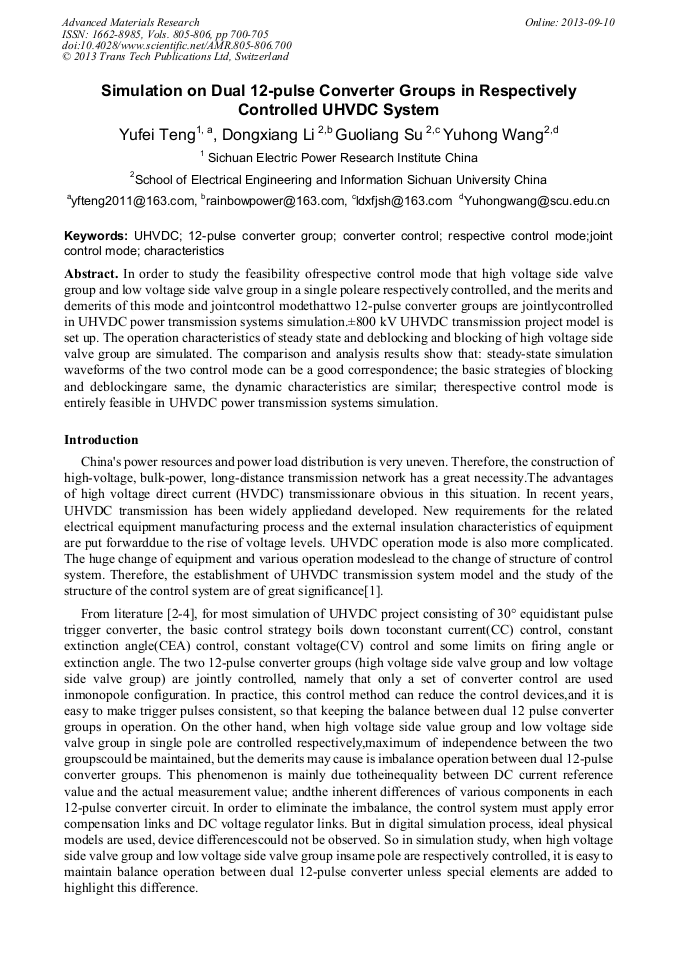

Simulation on Dual 12-Pulse Converter Groups in Respectively Controlled UHVDC System

Abstract:

In order to study the feasibility ofrespective control mode that high voltage side valve group and low voltage side valve group in a single poleare respectively controlled, and the merits and demerits of this mode and jointcontrol modethattwo 12-pulse converter groups are jointlycontrolled in UHVDC power transmission systems simulation.±800 kV UHVDC transmission project model is set up. The operation characteristics of steady state and deblocking and blocking of high voltage side valve group are simulated. The comparison and analysis results show that: steady-state simulation waveforms of the two control mode can be a good correspondence; the basic strategies of blocking and deblockingare same, the dynamic characteristics are similar; therespective control mode is entirely feasible in UHVDC power transmission systems simulation.

• Periodical: Advanced Materials Research (Volumes 805-806)
• Pages: 700-705
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.805-806.700
• Online since: September 2013
• Authors: Yu Fei Teng, Dong Xiang Li, Guo Liang Su, Yu Hong Wang
• Keywords: 12-Pulse Converter Group, Characteristic, Converter Control, Joint Control Mode, Respective Control Mode, UHVDC

References

[1] Astrom U, Westman B, Lescale V, et al. Power transmission with HVDC at voltages above 600 kV[J]. IEEE Power Engineering Society Inaugural 2005 Conference and Exposition in Africa, 2005: 44-50.

DOI: 10.1109/pesafr.2005.1611783

[2] Huang M, Wang G, Li Y. Study on balanced control strategy of dual 12-pulse valve groups in UHVDC: Asia-Pacific Power and Energy Engineering Conference, APPEEC 2010, March 28, 2010 - March 31, 2010, Chengdu, China, 2010[C]. IEEE Computer Society.

DOI: 10.1109/appeec.2010.5449238

[3] SHI Yan, HAN Wei, ZHANG Min, et al. A Preliminary Scheme for Control and Protection System of UHVDC Project[J], Power System Technology, 2007, 31(2): 11-15.

[4] Astrom U, Lescale V F, Menzies D, et al. The Xiangjiaba-Shanghai 800 kV UHVDC project, status and special aspects: 2010 International Conference on Power System Technology: Technological Innovations Making Power Grid Smarter, POWERCON2010, October 24, 2010 - October 28, 2010, Hangzhou, China, 2010[C]. IEEE Computer Society.

DOI: 10.1109/powercon.2010.5666671

[5] TAO Yu, MA Wei-min, MA Yu-long, et al. Control Characteristics of UHVDC Power Transmission System[J]. Power System Technology, 2006, 30(22): 1-4.

[6] Huang H, Ramaswami V. Design of UHVDC converter station: 2005 IEEE/PES Transmission and Distribution Conference and Exhibition: Asia and Pacific, August 15, 2005 - August 18, 2005, Dalian, China, 2005[C]. Institute of Electrical and Electronics Engineers Computer Society.

DOI: 10.1109/tdc.2005.1547214

[7] HU Ming, TIAN Jie, CAO Dong-ming, et al. Analysis of structure and configuration for UHVDC transmission control system[J]. Automation of Electric Power Systems, 2008, 32(24): 88-92.

[8] ZHANG Yao, FANG Xuan-He, HU Lie-Liang, et al. Blocking and deblocking strategies of valve group for UHVDC power transmission[J]. High Voltage Engineering, 2010, 36(8): 1858-1864.

[9] LI Shao-hua, LIU Tao, SU Yun, et al. Research on de-blocking/blocking operation in ±800 kV UHVDC system[J]. Power System Protection and Control, 2010, 38(6): 84-87.
