The Rubber Elasticity of Poly(N-isopropylacrylamide) Hydrogel Networks

Abstract:

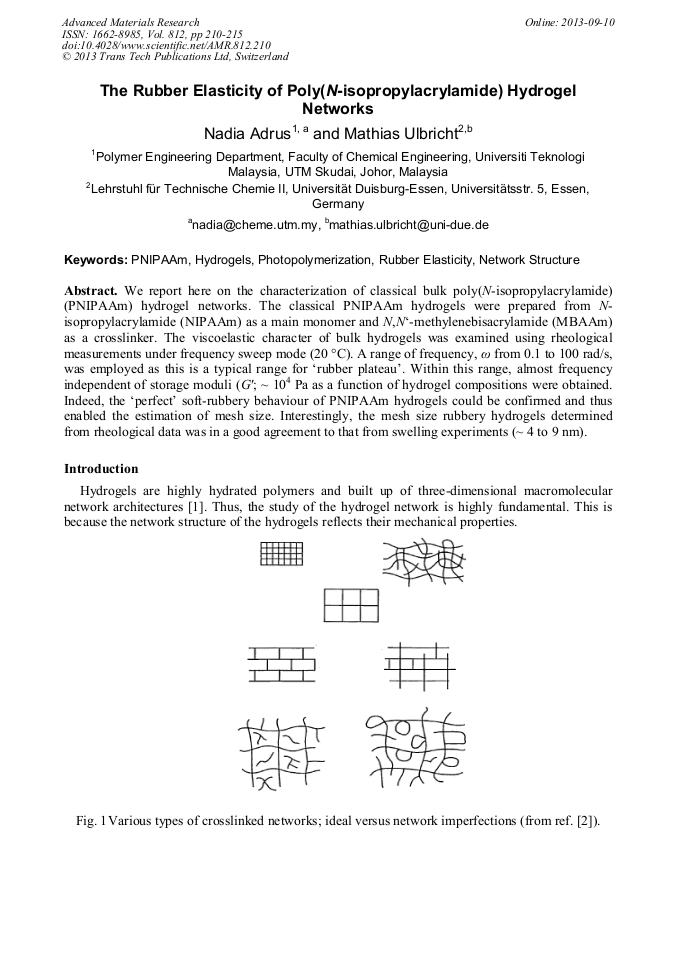

We report here on the characterization of classical bulk poly (N-isopropylacrylamide) (PNIPAAm) hydrogel networks. The classical PNIPAAm hydrogels were prepared from N-isopropylacrylamide (NIPAAm) as a main monomer and N,N-methylenebisacrylamide (MBAAm) as a crosslinker. The viscoelastic character of bulk hydrogels was examined using rheological measurements under frequency sweep mode (20 °C). A range of frequency, ω from 0.1 to 100 rad/s, was employed as this is a typical range for rubber plateau. Within this range, almost frequency independent of storage moduli (G'; ~ 10⁴ Pa as a function of hydrogel compositions were obtained. Indeed, the perfect soft-rubbery behaviour of PNIPAAm hydrogels could be confirmed and thus enabled the estimation of mesh size. Interestingly, the mesh size rubbery hydrogels determined from rheological data was in a good agreement to that from swelling experiments (~ 4 to 9 nm).

• Periodical: Advanced Materials Research (Volume 812)
• Pages: 210-215
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.812.210
• Online since: September 2013
• Authors: Nadia Adrus, Mathias Ulbricht
• Keywords: Hydrogel, Network Structure, Photopolymerization, PNIPAAm, Rubber Elasticity

References

[1] Q. Yang, N. Adrus, F. Tomicki, M. Ulbricht, Composites of functional polymeric hydrogels and porous membranes, J. Mater. Chem., 21 (2011) 2783-2811.

DOI: 10.1039/c0jm02234a

[2] L.E. Nielsen, Cross-Linking–Effect on Physical Properties of Polymers, J. Macromol. Sci. C, 3 (1969) 69-103.

[3] N.A. Peppas. Hydrogels in Medicine and Pharmacy. Vol. I-III. 1987, Boca Raton, Florida: CRC-Press.

[4] T. Canal, N.A. Peppas, Correlation between mesh size and equilibrium degree of swelling of polymeric networks, J. Biomed. Mater. Res., 23 (1989) 1183-1193.

DOI: 10.1002/jbm.820231007

[5] J. Wang, V.M. Ugaz, Using in situ rheology to characterize the microstructure in photopolymerized polyacrylamide gels for DNA electrophoresis, Electrophoresis, 27 (2006) 3349-3358.

DOI: 10.1002/elps.200500910

[6] R.H. Colby, L.J. Fetters, W.W. Graessley, Melt Viscosity-Molecular Weight Relationship for Linear Polymer, Macromolecules, 20 (1987) 2226-2237.

DOI: 10.1021/ma00175a030

[7] C. Fänger, H. Wack, M. Ulbricht, Macroporous Poly(N-isopropylacrylamide) Hydrogels with Adjustable Size "Cut-off" for the Efficient and Reversible Immobilization of Biomacromolecules, Macromol. Biosci., 6 (2006) 393-402.

DOI: 10.1002/mabi.200600027

[8] J.D. Ferry, Viscoelastic Properties of Polymers. 1980, Canada: John Wiley and Sons.

[9] D. Calvet, J.Y. Wong, S. Giasson, Rheological Monitoring of Polyacrylamide Gelation:  Importance of Cross-Link Density and Temperature, Macromolecules, (2004) 7762-7771.

DOI: 10.1021/ma049072r

[10] N. Adrus, M. Ulbricht, Novel hydrogel pore-filled composite membranes with tunable and temperature-responsive size-selectivity, J. Mater. Chem., 22 (2012) 3088-3098.

DOI: 10.1039/c2jm15022k
