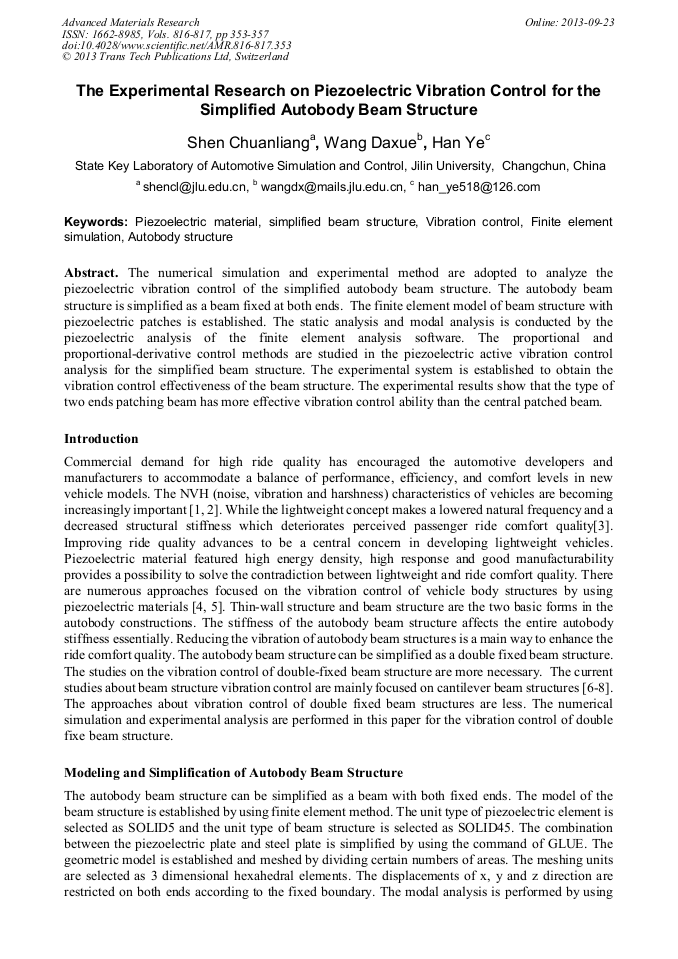

The Experimental Research on Piezoelectric Vibration Control for the Simplified Autobody Beam Structure

Abstract:

The numerical simulation and experimental method are adopted to analyze the piezoelectric vibration control of the simplified autobody beam structure. The autobody beam structure is simplified as a beam fixed at both ends. The finite element model of beam structure with piezoelectric patches is established. The static analysis and modal analysis is conducted by the piezoelectric analysis of the finite element analysis software. The proportional and proportional-derivative control methods are studied in the piezoelectric active vibration control analysis for the simplified beam structure. The experimental system is established to obtain the vibration control effectiveness of the beam structure. The experimental results show that the type of two ends patching beam has more effective vibration control ability than the central patched beam.

• Periodical: Advanced Materials Research (Volumes 816-817)
• Pages: 353-357
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.816-817.353
• Online since: September 2013
• Authors: Chuan Liang Shen, Da Xue Wang, Ye Han
• Keywords: Autobody Structure, Finite Element (FE) Simulation, Piezoelectric Material, Simplified Beam Structure, Vibration Control

References

[1] Aziz, A., Akmar, S., Mohd Sohaimi, R., Pu'ad, M. H., Yaman, M., & Abdullah, M. (2012). Noise, Vibration and Harshness (NVH) Study on Malaysian Armed Forces (MAF) Tactical Vehicle. Applied Mechanics and Materials, 165, 165-169.

DOI: 10.4028/www.scientific.net/amm.165.165

[2] Qatu, M. S. (2012). Recent research on vehicle noise and vibration. International Journal of Vehicle Noise and Vibration, 8(4), 289-301.

DOI: 10.1504/ijvnv.2012.051536

[3] Cui, X., Zhang, H., Wang, S., Zhang, L., & Ko, J. (2011).

[4] Takigami, T., Tomioka, T. (2008).

[5] Seeger, F., Gabbert, U., Koeppe, H., & Fuchs, K. (2002, July). Analysis and design of thin-walled smart structures in industrial applications. In SPIE's 9th Annual International Symposium on Smart Structures and Materials (pp.342-350.

DOI: 10.1117/12.475081

[6] Spier, C., Bruch, J. C., Sloss, J. M., Sadek, I. S., & Adali, S. (2011). Effect of vibration control on the frequencies of a cantilever beam with non-collocated piezo sensor and actuator. IET control theory & applications, 5(15), 1740-1747.

DOI: 10.1049/iet-cta.2010.0674

[7] Wang, K., Xiong, S., & Zhang, J. (2011). Active vibration control of a flexible cantilever beam using piezoelectric actuators. Energy Procedia, 13, 4367-4374.

[8] Wereley, N. M., Wang, G., & Chaudhuri, A. (2011). Demonstration of uniform cantilevered beam bending vibration using a pair of piezoelectric actuators. Journal of Intelligent Material Systems and Structures, 22(4), 307-316.

DOI: 10.1177/1045389x10379661
