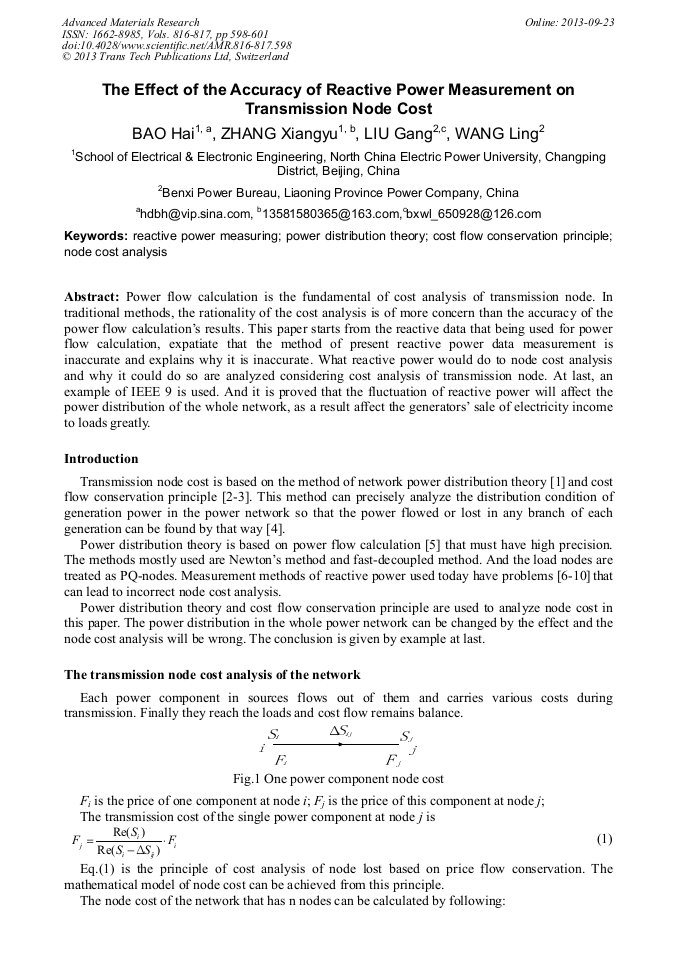

The Effect of the Accuracy of Reactive Power Measurement on Transmission Node Cost

Abstract:

Power flow calculation is the fundamental of cost analysis of transmission node. In traditional methods, the rationality of the cost analysis is of more concern than the accuracy of the power flow calculation’s results. This paper starts from the reactive data that being used for power flow calculation, expatiate that the method of present reactive power data measurement is inaccurate and explains why it is inaccurate. What reactive power would do to node cost analysis and why it could do so are analyzed considering cost analysis of transmission node. At last, an example of IEEE 9 is used. And it is proved that the fluctuation of reactive power will affect the power distribution of the whole network, as a result affect the generators’ sale of electricity income to loads greatly.

• Periodical: Advanced Materials Research (Volumes 816-817)
• Pages: 598-601
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.816-817.598
• Online since: September 2013
• Authors: Hai Bao, Xiang Yu Zhang, Gang Liu, Ling Wang
• Keywords: Cost Flow Conservation Principle, Node Cost Analysis, Power Distribution Theory, Reactive Power Measuring

References

[1] BAO Hai, MA Qian. Physical distribution mechanism of network loss for power systems[J]. Proceedings of the CSEE 2005 25(21): 82-86(in Chinese).

[2] WANG Xiaojun, BAO Hai. Node Network Loss Cost Analysis Method in Transmission System[J]. Proceedings of the CSEE, 2008, 28(13): 120-124. (in Chinese).

[3] MU Gang, WANG Huawei, Hart Xueshan. Determining bus electric cost of transmission system by the cost flow method[J]. Proceedings of the CSEE, 2002, 22(12): 36-40(in Chinese).

[4] WANG Xiaojun, BAO Hai. Cost analysis of electric power purchase node based on power dependency trace [J]. RELAY, 2008, 36(9): 35-38. (in Chinese).

[5] CAI Huiping. Electric power grid characteristics analysis based on power flow distribution. Chinese Society of Electrical Engineering of the Tenth Conference on Youth (in Chinese).

[6] QIU Haifeng, ZHOU Hao. Summary on reactive power measurement in power system[J]. Electrical measurement &instrumentation. 2007, 44(1): 5-9. (in Chinese).

[7] WANG Bolin, LIU Hua. Reactive power measurement with quasi-synchronous Hilbert arithmetic [J]. Electrical measurement &instrumentation, 2003, 40(12): 13-15. (in Chinese).

[8] ZHANG Xujun, ZHANG Chunsheng, XU Fusheng. Discussion of measurement technique for power with non-sinusoidal waveform [J]. Electric power automation equipment, 2002, 22(5), 67-69. (in Chinese).

[9] LIN Guoying. Reactive Power Measurement Based on Quasi-synchrony Algorithm and IIR Hilbert Transformer [J]. Electrical measurement &instrumentation. 2009, 46(2): 32-34, 38. (in Chinese).

[10] Saha, R.; Bera, J.; Sarkar, G., Problems associated with active and reactive power measurement using a state-of-the-art technique and its remedy, Communication and Industrial Application (ICCIA), 2011 International Conference on , vol., no., p.1, 4, 26-28 Dec. (2011).

DOI: 10.1109/iccinda.2011.6146651

[11] LIU Jinhua, LIU Yongqiang. Analysis and Expectation for the Reactive Power Definition in Non-sinusoidal Condition [J]. Electrical measurement &instrumentation. 2006, 43(3): 1-4, 59. (in Chinese).

[12] CHEN Heng. Power Systems Steady-State Analysis (edition 3) [M]. Beijing: China Electric Power Press, 2007: 73. (in Chinese).

[13] Etienne Moulin. Measuring Reactive Power In Energy meters[J]. Metering international, 2002, 1: 51-54.

[14] LIU Qiankun, LI Hongwei, XU Min. A novel method of reactive power measurement based on interpolation FFT algorithm refactoring Hilbert transformation [J]. Power system protection and control, 2009, 37(15): 19-22. (in Chinese).
