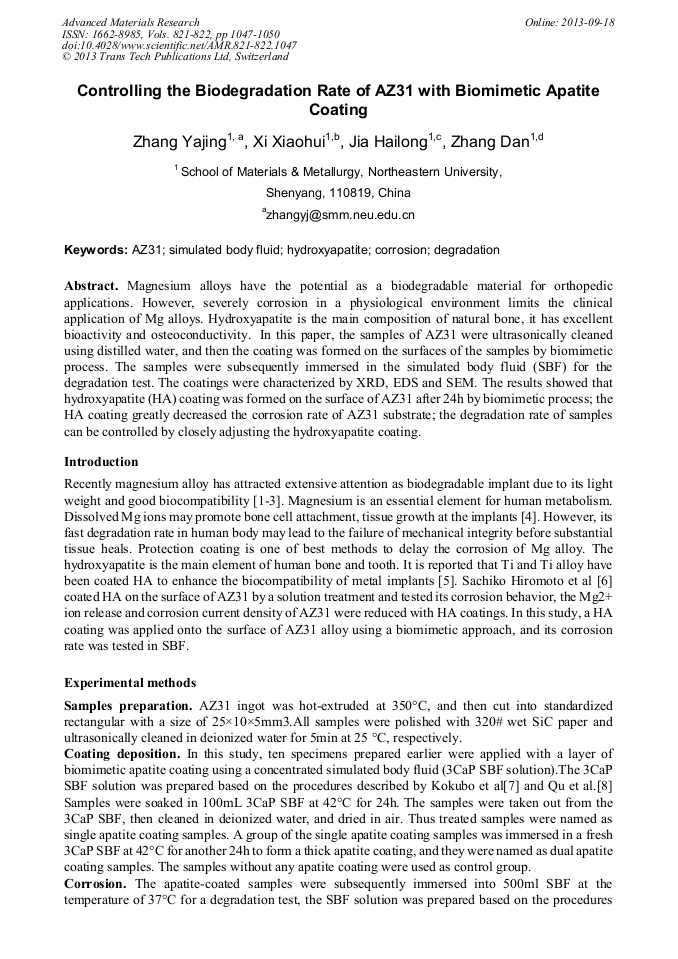

Controlling the Biodegradation Rate of AZ31 with Biomimetic Apatite Coating

Abstract:

Magnesium alloys have the potential as a biodegradable material for orthopedic applications. However, severely corrosion in a physiological environment limits the clinical application of Mg alloys. Hydroxyapatite is the main composition of natural bone, it has excellent bioactivity and osteoconductivity. In this paper, the samples of AZ31 were ultrasonically cleaned using distilled water, and then the coating was formed on the surfaces of the samples by biomimetic process. The samples were subsequently immersed in the simulated body fluid (SBF) for the degradation test. The coatings were characterized by XRD, EDS and SEM. The results showed that hydroxyapatite (HA) coating was formed on the surface of AZ31 after 24h by biomimetic process; the HA coating greatly decreased the corrosion rate of AZ31 substrate; the degradation rate of samples can be controlled by closely adjusting the hydroxyapatite coating.

• Periodical: Advanced Materials Research (Volumes 821-822)
• Pages: 1047-1050
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.821-822.1047
• Online since: September 2013
• Authors: Ya Jing Zhang*, Xiao Hui Xi, Hai Long Jia, Dan Zhang
• Keywords: AZ31, Corrosion, Degradation, Hydroxyapatite, Simulated Body Fluid

References

[1] Wolf-dieter Mueller, M. Lucia Nascimento, Monica Fernandez Lorenzo de Mele. Critical discussion of the results from different corrosion studied of Mg ang Mg alloys for biomaterial application. Acta Biomaterialia 6 (2010)1749-1755.

DOI: 10.1016/j.actbio.2009.12.048

[2] Witte F, Kaese V, Haferkamp H, Switzer E, Meyer-Linden-berg A, Wirth CJ, Windhagen H. In vivo corrosion of four magnesium alloys and the associated bone response. Biomaterials 26 (2005)3557–3563.

DOI: 10.1016/j.biomaterials.2004.09.049

[3] Duygulu O, Kaya RA, Oktay G, Kaya AA. Investigation on the potential of magnesium alloy AZ31 as a bone implant. Materials Science Forum 546-549 (2007)421-424.

DOI: 10.4028/www.scientific.net/msf.546-549.421

[4] Xinyun Chang, Huokai Fu, Tao Hu, Guoyi Tang, Paul K. Chu. Influence of aggressive ions on the degradation behavior of biomedical magnesium alloy in physiological environment. Acta Biomaterialia4(6): (2008)2008-(2015).

DOI: 10.1016/j.actbio.2008.05.014

[5] Habibovic P, Barrere F, Blitterswijk CA, de Groot K, Layrolle P. Biomimetic hydroxyapatite coating on metal implants. Journal of the American Ceramic Society. 85（3）(2002): 517-522.

DOI: 10.1111/j.1151-2916.2002.tb00126.x

[6] Sachiko Hiromoto, Masanari Tomozawa. Surface & Coatings Technology. 205 (2011)4711-4719.

[7] Kokubo T, Takadama H. How useful is SBF in predicting in vivo bone bioactivity. Biomaterials 27 (2006)2907-2915.

DOI: 10.1016/j.biomaterials.2006.01.017

[8] Qu H, Wei M. Improvement of adhesive strength of biomimetically coated titanium implants. Journal Biomedical Materials ResearchResearch Part B: Applied Biomaterials. 84(2) (2008) 436-443.
