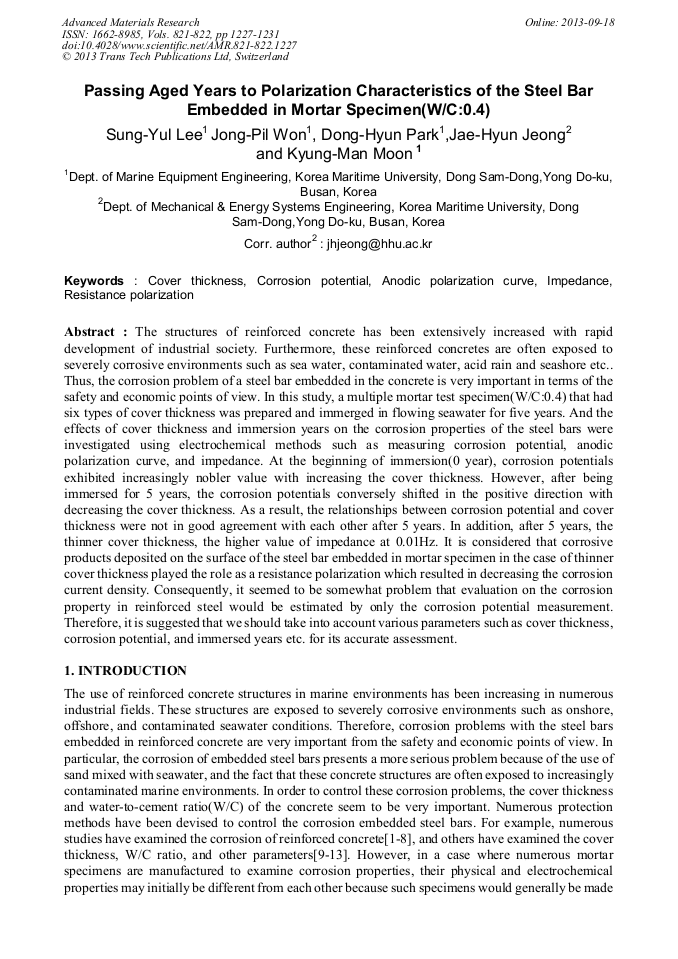

Passing Aged Years to Polarization Characteristics of the Steel Bar Embedded in Mortar Specimen (W/C:0.4)

Abstract:

The structures of reinforced concrete has been extensively increased with rapid development of industrial society. Furthermore, these reinforced concretes are often exposed to severely corrosive environments such as sea water, contaminated water, acid rain and seashore etc.. Thus, the corrosion problem of a steel bar embedded in the concrete is very important in terms of the safety and economic points of view. In this study, a multiple mortar test specimen (W/C:0.4) that had six types of cover thickness was prepared and immerged in flowing seawater for five years. And the effects of cover thickness and immersion years on the corrosion properties of the steel bars were investigated using electrochemical methods such as measuring corrosion potential, anodic polarization curve, and impedance. At the beginning of immersion (0 year), corrosion potentials exhibited increasingly nobler value with increasing the cover thickness. However, after being immersed for 5 years, the corrosion potentials conversely shifted in the positive direction with decreasing the cover thickness. As a result, the relationships between corrosion potential and cover thickness were not in good agreement with each other after 5 years. In addition, after 5 years, the thinner cover thickness, the higher value of impedance at 0.01Hz. It is considered that corrosive products deposited on the surface of the steel bar embedded in mortar specimen in the case of thinner cover thickness played the role as a resistance polarization which resulted in decreasing the corrosion current density. Consequently, it seemed to be somewhat problem that evaluation on the corrosion property in reinforced steel would be estimated by only the corrosion potential measurement. Therefore, it is suggested that we should take into account various parameters such as cover thickness, corrosion potential, and immersed years etc. for its accurate assessment. Keywords : Cover thickness, Corrosion potential, Anodic polarization curve, Impedance, Resistance polarization

• Periodical: Advanced Materials Research (Volumes 821-822)
• Pages: 1227-1231
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.821-822.1227
• Online since: September 2013
• Authors: Sung Yul Lee, Jong Pil Won, Dong Hyun Park, Jae Hyun Jeong, Kyung Man Moon
• Keywords: Anodic Polarization Curve, Corrosion Potential, Cover Thickness, Impedance, Resistance Polarization

References

[1] Sway, R.N. Koyama, S.T. Arai, N. K., Durability of steel reinforcement in marine environment, ACI. SP 109-7 (1982), 147-1614.

[2] Ozaki, S.N., Sixty-year-old concrete in marine environment, ACI. SP 109-26 (1983), 587-597.

[3] Sagues, A.A., Corrosion measurement of reinforcing steel in concrete exposed to various aqueous environments, Proceedings of the corrosion/87 Symposium on corrosion of metals in concrete, (1987), 13-24.

DOI: 10.14359/3731

[4] Wheat, H.G., An investigation of the effect of the cathode area /anode area in the corrosion of steel in concrete, Proceeding of the corrosion/87 symposium on corrosion of metals in concrete (1987), 25-41.

[5] Lockl, C.E. and Rincon, O., A study of Corrosion Electrochemistry of steel in chloride contaminated concrete using a rapid scan polarization Technique, Proceeding of the corrosion/87 Technique symposium on corrosion at metals in concrete (1987).

[6] Garces, P. and Hndion, L.G.,  Corrosion of steel reinforcement in structural concrete with carbon material addition, Corros. Sci. (49) (2007), 2557.

[7] Lee, S.H. and Han, J.S., A study on the measurement of steel corrosion in Morton by TEM method, j. of Ocean engineer. and Tec. (20) (2006), 59.

[8] Kwon, J.H., A study on the hydration heat of anti washout underwater concrete using Fly Ash, J. of Ocean engineer. and Tec., 14 (4) (2000), 30.

[9] Jeon, D.H., Moon, K. M., Baek, T. S and Kim, J.H., An anti-corrosion study at steel of reinforced concrete with sand with contami nated seawater in seawater solution, Corros. Sci. and Tec. 21 (1992), 11.

[10] Kim, K.G., Ryou, B.H., Kim, S.J., Kim, K. J. and Moon, K.M., An electrochemical study on the effect at chloride ion to corrosion behavior of inner steel bar embedded in concrete in natural sea water, J. Ocean engineer. and Tec. 14 (2000), 23.

[11] Thampson, N.G., Lawson, K.H. and Beavers, J.A., Symposium on corrosion at metals in concrete, Proceeding of the corrosion/87 Technique (1987), 182-199.

[12] Apostoles, J.A., Park, D. and Carello, R. A., Symposium on corrosion at metals in concrete, Proceeding of the corrosion/87 Technique (1987), 168-181.

[13] Yoo, Y.R., Cho, H.H., Take, S. Kim, J.G. and Kim Y.S., Influence of Cathodic Protection on the lifetime Extension of Painted Steel Structures, Met. Mater. Int. 12 (3) (2006), 255.

DOI: 10.1007/bf03027540

[14] ASTM C876-80, Half Cell Potentials of Reinforcing Steel in Concrete (1980), 87.
