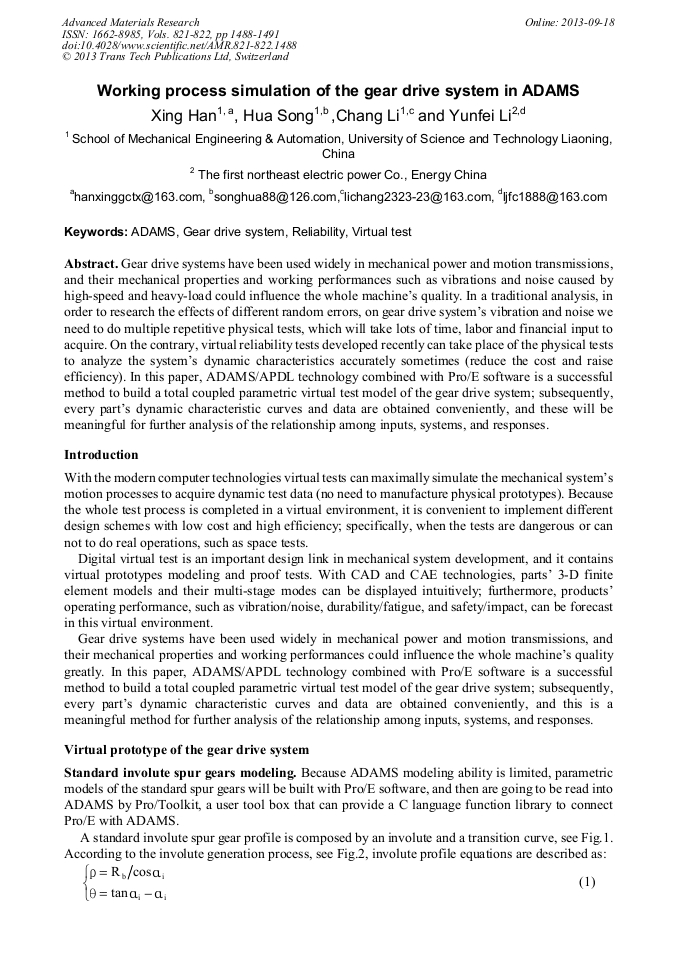

Working Process Simulation of the Gear Drive System in ADAMS

Abstract:

Gear drive systems have been used widely in mechanical power and motion transmissions, and their mechanical properties and working performances such as vibrations and noise caused by high-speed and heavy-load could influence the whole machines quality. In a traditional analysis, in order to research the effects of different random errors, on gear drive systems vibration and noise we need to do multiple repetitive physical tests, which will take lots of time, labor and financial input to acquire. On the contrary, virtual reliability tests developed recently can take place of the physical tests to analyze the systems dynamic characteristics accurately sometimes (reduce the cost and raise efficiency). In this paper, ADAMS/APDL technology combined with Pro/E software is a successful method to build a total coupled parametric virtual test model of the gear drive system; subsequently, every parts dynamic characteristic curves and data are obtained conveniently, and these will be meaningful for further analysis of the relationship among inputs, systems, and responses.

You might also be interested in these eBooks

Advances in Textile Engineering and Materials III

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 821-822)

Pages:

1488-1491

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.821-822.1488

Citation:

Cite this paper

Online since:

September 2013

Authors:

Xing Han*, Hua Song, Chang Li, Yun Fei Li

Keywords:

Adams, Gear Drive System, Reliability, Virtual Test

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Sun Zhili, Chen Liangyu. Practical mechanical reliability theory and method. Beijing Science& Technology Press, 2003: 1-10.

Google Scholar

[2] Chen Weiping, Zhang Yunqing, Ren Weiqun. Mechanism system dynamic analysis and ADAMS application course. Beijing: Publication of Tsinghua University, 2005, pp.29-30.

Google Scholar

[3] An Weiguang, Cai Yinlin. Reliability analysis and optimistic design of the random mechanism system. Harbin: Publication of Harbin engineering university, 2005, pp.4-8.

Google Scholar

[4] Tiejun Wang. Dynamic reliability simulation for series robot in ADAMS. Shenyang, Northeastern University, (2006).

Google Scholar

[5] Y. Wang, W. J. Zhang . Stochastic vibration model of gear transmission systems considering speed-dependent random errors Nonlinear Dynamics. 1998, Vol. 17, Issue 2, pp.187-203.

Google Scholar
