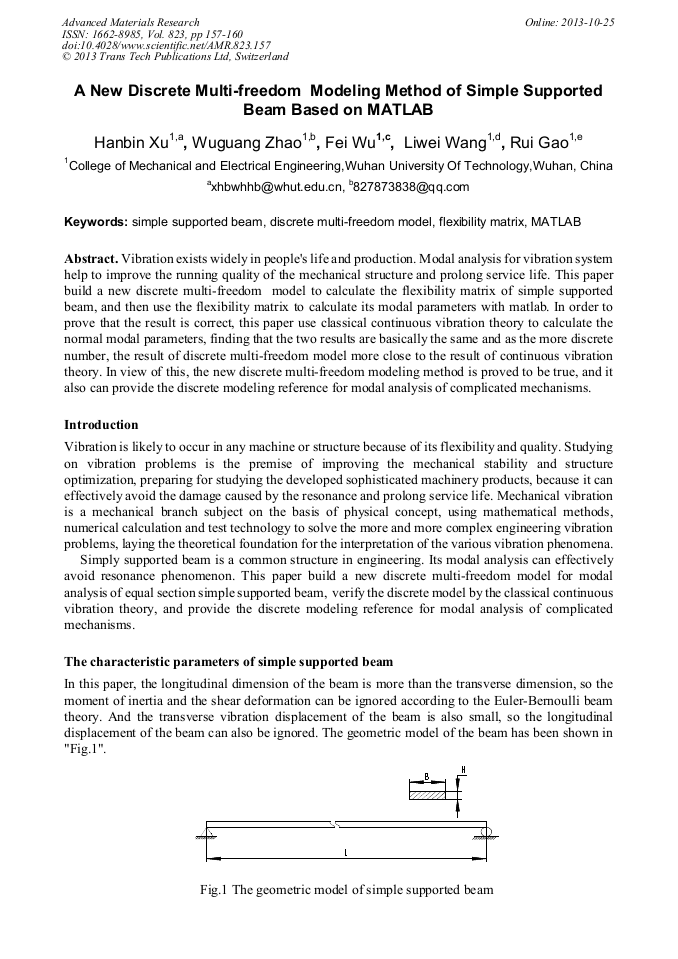

A New Discrete Multi-Freedom Modeling Method of Simple Supported Beam Based on MATLAB

Abstract:

Vibration exists widely in people's life and production. Modal analysis for vibration system help to improve the running quality of the mechanical structure and prolong service life. This paper build a new discrete multi-freedom model to calculate the flexibility matrix of simple supported beam, and then use the flexibility matrix to calculate its modal parameters with matlab. In order to prove that the result is correct, this paper use classical continuous vibration theory to calculate the normal modal parameters, finding that the two results are basically the same and as the more discrete number, the result of discrete multi-freedom model more close to the result of continuous vibration theory. In view of this, the new discrete multi-freedom modeling method is proved to be true, and it also can provide the discrete modeling reference for modal analysis of complicated mechanisms.

• Periodical: Advanced Materials Research (Volume 823)
• Pages: 157-160
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.823.157
• Online since: October 2013
• Authors: Han Bin Xu, Wu Guang Zhao, Fei Wu, Li Wei Wang, Rui Gao
• Keywords: Discrete Multi-Freedom Model, Flexibility Matrix, MATLAB, Simple Supported Beam

References

[1] Jiangen Du, in: Mechanics of Materials, edited by Wuhan University of Technology Publising, Wuhan (2008), in press.

[2] Singiresu S. Rao, in: Mechanical Vibration, Fourth Edition, edited by Tsinghua University Publising, Beijing (2009), in press.

[3] LIU Wei, CHEN Jun-jie, in: An Analysis and Test of Modal Parameter of Free Beam, edited by LI Ya-qing, volume 25 of Journal of Beijing Union University (Natural Science), chapter, 2, Beijing Union University Publishing (2011).

[4] Zhang Anfu, Sheng Meiping, Zhang Yiping, in: Simulation of Effective Mobility for Simple Supported Beam, edited by Nanjing University of Aeronautics and Astronautics Publishing, volume 32 of Journal of Vibration; Measurement & Diagnosis, chapter, 5 (2012).

[5] Muhammad Adnan, SUN Bing, ZHANG Jian-wei, Sarosh Ali, in An iterative approach for modal analysis of solid rocket motor incorporating frequency dependent modulus, edited by Beijing University of Aeronautics Astronautics Publishing, volume 28 of Journal of Aerospace Power, chapter, 2 (2013).
