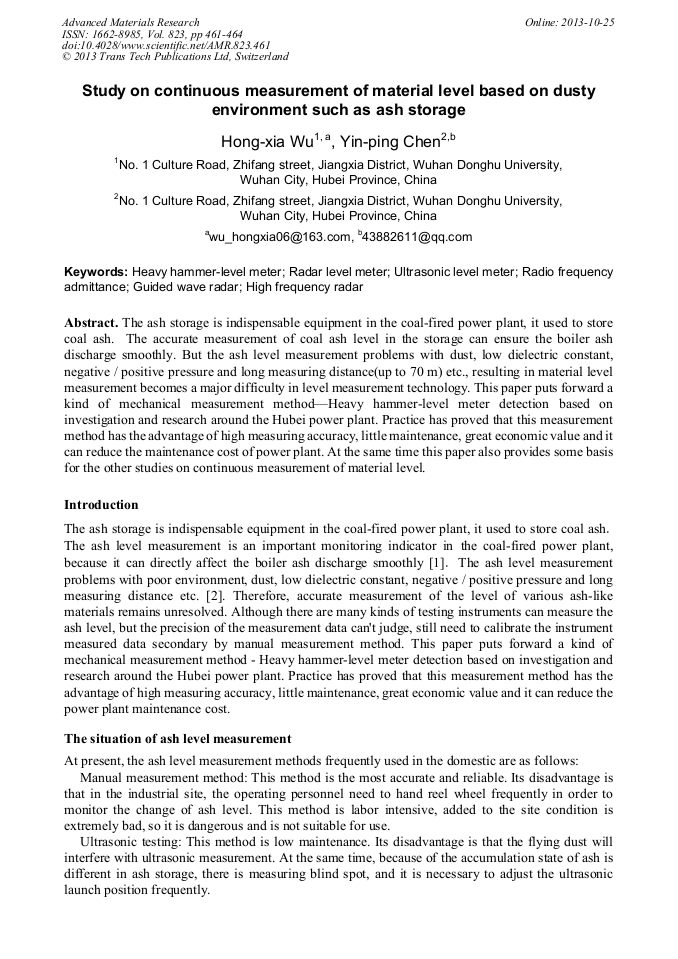

Study on Continuous Measurement of Material Level Based on Dusty Environment such as Ash Storage

Abstract:

The ash storage is indispensable equipment in the coal-fired power plant, it used to store coal ash. The accurate measurement of coal ash level in the storage can ensure the boiler ash discharge smoothly. But the ash level measurement problems with dust, low dielectric constant, negative / positive pressure and long measuring distance (up to 70 m) etc., resulting in material level measurement becomes a major difficulty in level measurement technology. This paper puts forward a kind of mechanical measurement methodHeavy hammer-level meter detection based on investigation and research around the Hubei power plant. Practice has proved that this measurement method has the advantage of high measuring accuracy, little maintenance, great economic value and it can reduce the maintenance cost of power plant. At the same time this paper also provides some basis for the other studies on continuous measurement of material level.

• Periodical: Advanced Materials Research (Volume 823)
• Pages: 461-464
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.823.461
• Online since: October 2013
• Authors: Hong Xia Wu, Yin Ping Chen
• Keywords: Guided Wave Radar, Heavy Hammer-Level Meter, High Frequency Radar, Radar Level Meter, Radio Frequency Admittance, Ultrasonic Level Meter

References

[1] Miaoxuan Chen. The application of measurement technology of solid material level in power plant. Sensing and detection technology Vol. 2 (2009), p.50.

[2] North China Electric Power University, in: Thermal device and system for power plant , edtied by Electric Power Industry Press, Beijing(1982).

[3] Daqian Wang. Application of High Frequency Radar Material Meter in measurement. Cement Technology Vol. 4 (2012), p.108.

[4] Yanbin Cui. Design of level measuring device for pulverized coal hoppers. Coal mine machinery Vol. 6 (2003), p.6.

[5] Yunzhen Yang. Application of a new type of reflection radar material level meter in measurement of pulverized coal. Guangxi Electric Power Vol. 4 (2012), p.39.

[6] Wenjie Gao, Qingsheng Zhang, Zhiguang Xiao, Yunsu Zhang. The Application of Supersonic Bin Level Measurement Meter in Blending Field. China Instrumentation Vol. 11 (2006), p.65.

[7] Yonghai Feng, Zhihai Wang, Juan Zhang, Yun Lei. Practice and application of material level measurement of boiler pulverized coal storeage. HeiLongJiang Science and Technology Information Vol. 31 (2010), p.38.

[8] Yi Ma. Development and application of heavy hammer detection type material level measuring system. Beijing Electronics Vol. 4 (2005), p.40.

[9] Jianjun Jiang, Ju Cao. Design and Application of Measuring System of the Coal Powder Silo with Level Meter. Journal of Nantong University(Natural Science) Vol. 6 (2002), p.62.
