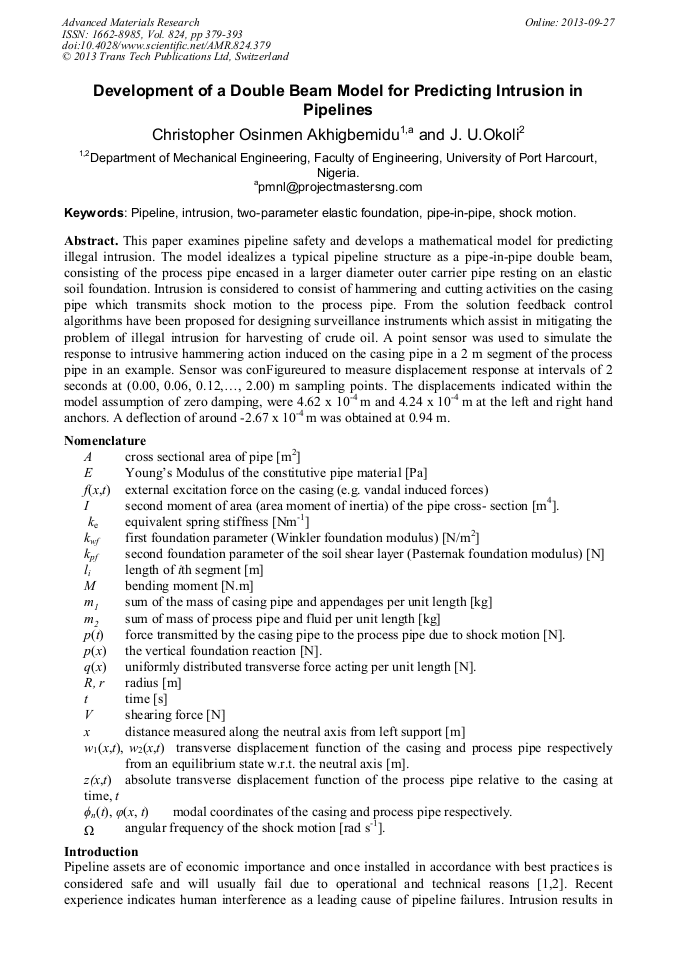

Development of a Double Beam Model for Predicting Intrusion in Pipelines

Abstract:

This paper examines pipeline safety and develops a mathematical model for predicting illegal intrusion. The model idealizes a typical pipeline structure as a pipe-in-pipe double beam, consisting of the process pipe encased in a larger diameter outer carrier pipe resting on an elastic soil foundation. Intrusion is considered to consist of hammering and cutting activities on the casing pipe which transmits shock motion to the process pipe. From the solution feedback control algorithms have been proposed for designing surveillance instruments which assist in mitigating the problem of illegal intrusion for harvesting of crude oil. A point sensor was used to simulate the response to intrusive hammering action induced on the casing pipe in a 2 m segment of the process pipe in an example. Sensor was conFigureured to measure displacement response at intervals of 2 seconds at (0.00, 0.06, 0.12,..., 2.00) m sampling points. The displacements indicated within the model assumption of zero damping, were 4.62 x 10^-4 m and 4.24 x 10^-4 m at the left and right hand anchors. A deflection of around-2.67 x 10^-4 m was obtained at 0.94 m.

• Periodical: Advanced Materials Research (Volume 824)
• Pages: 379-393
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.824.379
• Online since: September 2013
• Authors: Christopher Osinmen Akhigbemidu, John U. Okoli
• Keywords: Intrusion, Pipe-In-Pipe, Pipeline, Shock Motion, Two-Parameter Elastic Foundation

References

[1] J. U. Okoli, C.O. Akhigbemidu, Failure Prevention Strategies in Pipeline Operations in the Niger Delta Area of Nigeria, Nigeria Journal of Industrial and Systems Studies Vol. 2, No. 2 (2003) pp.61-67.

[2] M. Mohitpour, H. Golshan, and A. Murray, Pipeline Design & Construction – A Practical Approach, ASME Press, New York, (2000).

[3] F. C. Onuoha, Oil pipeline sabotage in Nigeria: Dimensions, Actors and Implications for National Security, African Security Review, Institute of Security Studies, 2008. Retrieved from http: /www. iss. co. za/uploads/17_3ONUOHA. PDF, Accessed May, (2010).

DOI: 10.1080/10246029.2008.9627487

[4] L.P.E. Eyo-Essien, Oil Spill Management in Nigeria: Challenges of Pipeline Vandalism in the Niger Delta Region of Nigeria, National Oil Spill Detection & Response Agency (NOSDRA), Nigeria, 2008. Retrieved fromhttp: /ipec. utulsa. edu/Conf2008/Manuscripts %20&%20presentations%20received/Eyo_Essien _2. pdf. Accessed in November, (2009).

DOI: 10.4028/www.scientific.net/amr.62-64.432

[5] Nigerian National Petroleum Corporation, Annual Statistical Bulletins (2002-2008), Corporate Planning and Development Division, NNPC, Abuja, 2002-(2008).

[6] O. S. V. Olunloyo, A. A. Oyediran, A. Adewale, O. A. Adelaja, A. O. Charles, Concerning the Transverse and Longitudinal Vibrations of a fluid Conveying Beam and the Pipe Walking Phenomenon, Final Paper No. OMAE2007–29304, The 26th International Conference on Offshore Mechanics and Arctic Engineering, San Diego, USA (2007).

DOI: 10.1115/omae2007-29304

[7] D. R. Frikken, K. C. Bodenhamer, P. D. Stumpf (Eds. ), ASME B31. 4-2006: Pipeline Transportation Systems for Liquid Hydrocarbons and Other Liquids, ASME Pressure Piping B31 committee, The American Society of Mechanical Engineers, New York, 2006, pp.7-30.

DOI: 10.1115/b31

[8] G. King, Physical Forces on Buried Pipeline Coatings, in: J. R. Ellwood (Ed. ), Proceedings of the International Pipeline Conference 2000, Vol. 2, The American Society of Mechanical Engineers, New York, pp.703-708.

[9] A. I. Williamson, J. R. Hancock, P. Singh, The Resistance of Advanced Pipeline Coatings to Penetration and Abrasion by Hard Rock, in: J. R. Ellwood (Ed. ), Proceedings of the International Pipeline Conference 2000, Vol. 2, The American Society of Mechanical Engineers, New York, pp.709-715.

DOI: 10.1115/ipc2000-183

[10] M. A. De Rosa, Free Vibrations of Timoshenko Beams on Two-Parameter Elastic Foundation, Journal of Computers & Structures, Vol. 57, No. 1, (1995) 151-156.

DOI: 10.1016/0045-7949(94)00594-s

[11] G. A. Razaqpur, K.R. Shah, Exact Analysis of Beams on Two-Parameter Elastic Foundations, International Journal of Solid Structures, Vol. 27, No. 4, 1991, pp.435-454.

DOI: 10.1016/0020-7683(91)90133-z

[12] C. O. Akhigbemidu, J. U. Okoli, Single Beam Model for Predicting Intrusion in Pipelines, Ife Journal of Technology, Vol. 20, No. 2 (2011) 36-45.

[13] W. F. Stokey, Vibration of Systems having Distributed Mass and Elasticity, in: M. C. Harris, Allan G. Piersol (Eds. ), Harris' Shock and Vibration Hand Book, fifth ed., McGraw-Hill, New York, 2002, p.7. 1-7. 50.

[14] W. Weaver Jr., S.P. Timoshenko, D.H. Young, Vibration Problems in Engineering, 5th ed., John Wiley & Sons Inc., New York, (1990).

[15] M. J. Balas, Modal Control of Certain Flexible Dynamic Systems, Society for Industrial and Applied Mathematics Journal of Control & Optimization, Vol. 16, No. 3 (1978) 450 - 462.

DOI: 10.1137/0316030

[16] L. Meirovitch, Dynamics and Control of Structures, John Wiley & Sons, New York, (1990).
