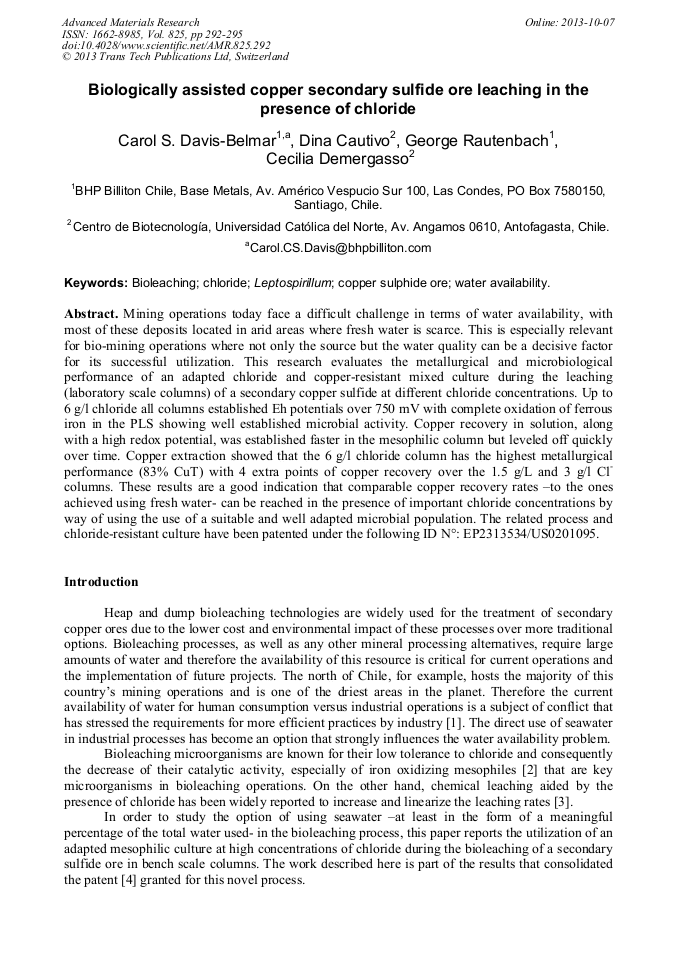

Biologically Assisted Copper Secondary Sulfide Ore Leaching in the Presence of Chloride

Abstract:

Mining operations today face a difficult challenge in terms of water availability, with most of these deposits located in arid areas where fresh water is scarce. This is especially relevant for bio-mining operations where not only the source but the water quality can be a decisive factor for its successful utilization. This research evaluates the metallurgical and microbiological performance of an adapted chloride and copper-resistant mixed culture during the leaching (laboratory scale columns) of a secondary copper sulfide at different chloride concentrations. Up to 6 g/l chloride all columns established Eh potentials over 750 mV with complete oxidation of ferrous iron in the PLS showing well established microbial activity. Copper recovery in solution, along with a high redox potential, was established faster in the mesophilic column but leveled off quickly over time. Copper extraction showed that the 6 g/l chloride column has the highest metallurgical performance (83% CuT) with 4 extra points of copper recovery over the 1.5 g/L and 3 g/l Cl^- columns. These results are a good indication that comparable copper recovery rates –to the ones achieved using fresh water- can be reached in the presence of important chloride concentrations by way of using the use of a suitable and well adapted microbial population. The related process and chloride-resistant culture have been patented under the following ID N°: EP2313534/US0201095.

• Periodical: Advanced Materials Research (Volume 825)
• Pages: 292-295
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.825.292
• Online since: October 2013
• Authors: Carol S. Davis-Belmar, Dina Cautivo, George Rautenbach, Cecilia Demergasso
• Keywords: Bioleaching, Chloride, Copper Sulfide Ore, Leptospirillum, Water Availability

References

[1] R. Brantes, Best practices and efficient use of water in the mining industry, COCHILCO (Chilean Copper Commission), (2008).

[2] D.W. Shiers, K.R. Blight, D.E. Ralph, Sodium sulphate and sodium chloride effect on batch culture iron oxidizing bacteria, Hydrometallurgy. 80 (2005) 75-82.

DOI: 10.1016/j.hydromet.2005.07.001

[3] Z.Y. Lu, M.I. Jeffrey, F. Lawson, The effect of chloride ions on the dissolution of chalcopyrite in acidic solutions, Hydrometallurgy. 56 (2000) 145-155.

DOI: 10.1016/s0304-386x(00)00068-2

[4] G. Rautenbach, C.S. Davis-Belmar and C. Demergasso, U.S. Patent 0201095. (2011).
