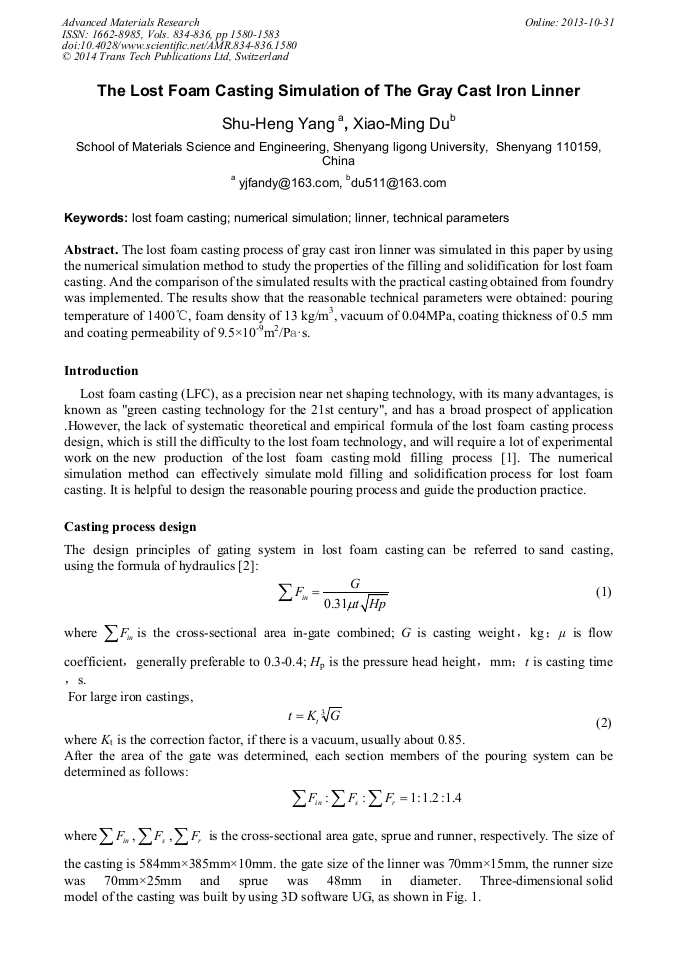

The Lost Foam Casting Simulation of the Gray Cast Iron Linner

Abstract:

The lost foam casting process of gray cast iron linner was simulated in this paper by using the numerical simulation method to study the properties of the filling and solidification for lost foam casting. And the comparison of the simulated results with the practical casting obtained from foundry was implemented. The results show that the reasonable technical parameters were obtained: pouring temperature of 1400°C, foam density of 13 kg/m³, vacuum of 0.04MPa, coating thickness of 0.5 mm and coating permeability of 9.5×10^-9m²/Pa·s.
