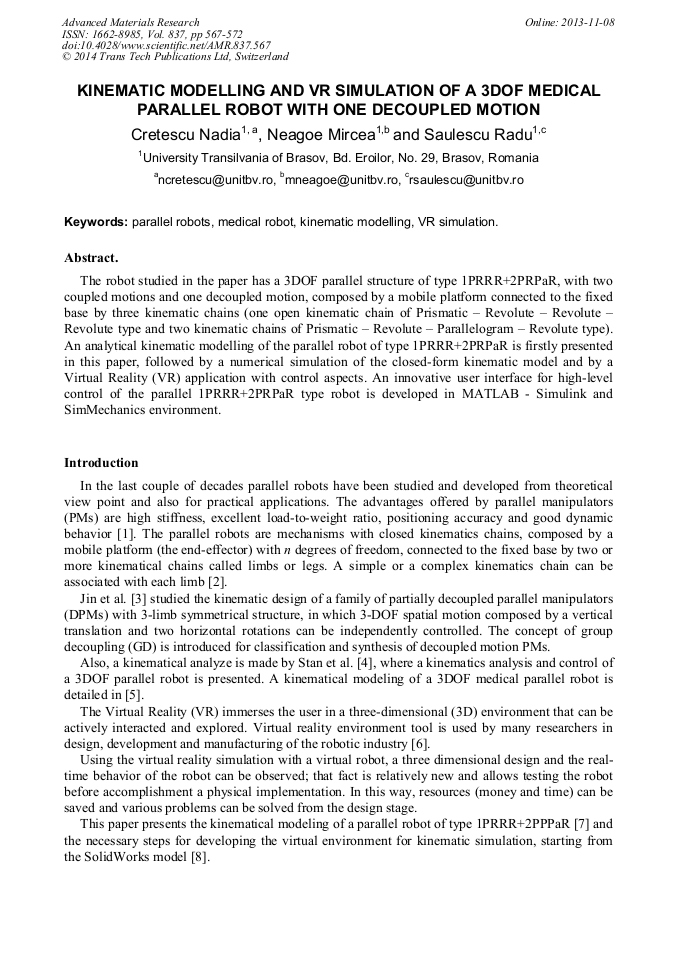

Kinematic Modelling and VR Simulation of a 3DOF Medical Parallel Robot with One Decoupled Motion

Abstract:

The robot studied in the paper has a 3DOF parallel structure of type 1PRRR+2PRPaR, with two coupled motions and one decoupled motion, composed by a mobile platform connected to the fixed base by three kinematic chains (one open kinematic chain of Prismatic Revolute Revolute Revolute type and two kinematic chains of Prismatic Revolute Parallelogram Revolute type). An analytical kinematic modelling of the parallel robot of type 1PRRR+2PRPaR is firstly presented in this paper, followed by a numerical simulation of the closed-form kinematic model and by a Virtual Reality (VR) application with control aspects. An innovative user interface for high-level control of the parallel 1PRRR+2PRPaR type robot is developed in MATLAB - Simulink and SimMechanics environment.

• Periodical: Advanced Materials Research (Volume 837)
• Pages: 567-572
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.837.567
• Online since: November 2013
• Authors: Nadia Cretescu, Mircea Neagoe, Radu G. Saulescu
• Keywords: Kinematic Modelling, Medical Robot, Parallel Robot, VR-Simulation

References

[1] Zhao Y. and Gao F., Dynamic formulation and performance evaluation of the redundant parallel manipulator, Robotics and Computer-Integrated Manufacturing, Vol. 25, (2009), p.770–781.

DOI: 10.1016/j.rcim.2008.10.001

[2] Gogu G., Structural synthesis of parallel robots. Part 1: Methodology, Springer Verlag, (2008), p.282.

[3] Jin, Y., Chen, I-M., and Yang, G., Kinematic design of a family of 6-DOF partially decoupled parallel manipulators. Mechanism and Machine Theory, Vol. 44, (200), p.912–922.

DOI: 10.1016/j.mechmachtheory.2008.06.004

[4] Stan, S. D, Manic, M., Maties and M., Balan, R., Kinematics Analysis, Design, and Control of an Isoglide3 Parallel Robot (IG3PR), IECON08, The 34th Annual Conference of the IEEE Industrial Electronics Society, Nov. 10-13, (2008).

DOI: 10.1109/iecon.2008.4758373

[5] Sergiu-Dan Stan, Vistrian Mătieş, Radu Bălan, Nadia Raţ, Workspace and Kinematics Analysis of a Medical Parallel Robot for Cardiopulmonary Resuscitation, IEEE-ICIT'09, 2009, Melbourne, Australia.

[6] Stan, S. -D, Manic, M., Mătieş, M., Bălan, R., Kinematics Analysis, Design, and Control of an Isoglide3 Parallel Robot (IG3PR), IECON 2008, The 34th Annual Conference of the IEEE Industrial Electronics Society, Orlando, USA, November 10-13, (2008).

DOI: 10.1109/iecon.2008.4758373

[7] Gogu, G., Evolutionary morphology: a structured approach to inventive engineering design, Invited paper, Proceedings of the 5th International Conference on Integrated Design and Manufacturing in mechanical Engineering, Bath, 5-7 April (2004).

DOI: 10.1007/1-4020-3482-2_31

[8] Raţ, N.R., Neagoe, M., Stan, S.D. Comparative Dynamic Analysis of Two Parallel Robots, The 2010 International Conference on Robotics (ROBOTICS'10), Cluj-Napoca, Romania, September 23-25, 2010, In Robotics and Automation Systems, doi: 10. 4028/www. scientific. net/SSP. 166-167, Solid State Phenomena Vols. 166-167 (2010).

DOI: 10.4028/www.scientific.net/ssp.166-167.345
