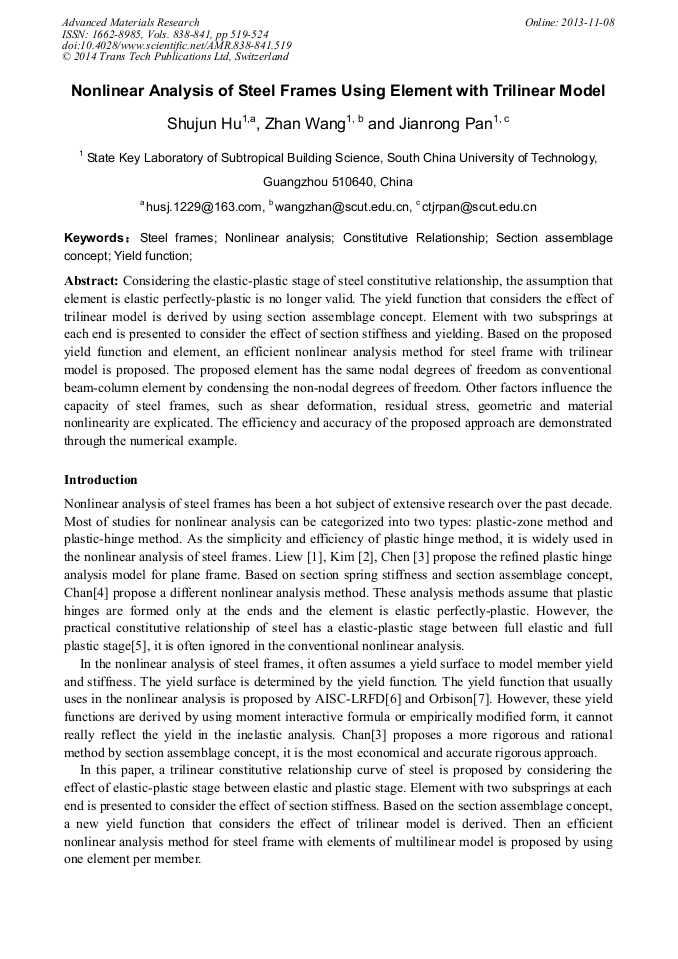

Nonlinear Analysis of Steel Frames Using Element with Trilinear Model

Abstract:

Considering the elastic-plastic stage of steel constitutive relationship, the assumption that element is elastic perfectly-plastic is no longer valid. The yield function that considers the effect of trilinear model is derived by using section assemblage concept. Element with two subsprings at each end is presented to consider the effect of section stiffness and yielding. Based on the proposed yield function and element, an efficient nonlinear analysis method for steel frame with trilinear model is proposed. The proposed element has the same nodal degrees of freedom as conventional beam-column element by condensing the non-nodal degrees of freedom. Other factors influence the capacity of steel frames, such as shear deformation, residual stress, geometric and material nonlinearity are explicated. The efficiency and accuracy of the proposed approach are demonstrated through the numerical example.

• Periodical: Advanced Materials Research (Volumes 838-841)
• Pages: 519-524
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.838-841.519
• Online since: November 2013
• Authors: Shu Jun Hu, Zhan Wang*, Jian Rong Pan
• Keywords: Constitutive Relationship, Non-Linear Analysis, Section Assemblage Concept, Steel Frames, Yield Function

References

[1] J.Y.R. Liew, D.W. White, and W. F. Chen. Second-order Refined Plastic Hinge Analysis of Frame Design, Part 1, Journal of Structural Engineering, ASCE, Vol. 119 (1993), pp.3196-3216.

DOI: 10.1061/(asce)0733-9445(1993)119:11(3196)

[2] S.E. Kim, and W.F. Chen. Practical Advanced Analysis for Braced Steel Frames Design, Journal of Structural Engineering, ASCE, Vol. 122(1996), pp.1266-1274.

DOI: 10.1061/(asce)0733-9445(1996)122:11(1266)

[3] W.F. Chen. Structural Stability: from Theory to Practice, Engineering Structures, Vol. 22(2000), pp.116-122.

[4] S.L. Chan and P.P.T. Chui. A Generalized Design-based Elastoplastic Analysis of Steel Frames by Section Assemblage Concept, Engineering Structures, Vol. 19 (1997), pp.628-636.

DOI: 10.1016/s0141-0296(96)00138-1

[5] S.F. Chen and Q. Gu. Steel Structure, China Architecture & Building Press (2003).

[6] American Institute of Steel Construction (AISC). Load and resistance factor design (LRFD): Specification for structural steel building. Chicago, IL (1986).

[7] J.G. Orbison and W. Mcguire. Abel J F. Yield surface applications in nonlinear steel frame analysis, Computer methods in applied mechanics and engineering, Vol. 33(1982), pp.557-573.

DOI: 10.1016/0045-7825(82)90122-0

[8] W.F. Chen and E.M. Lui. Stability Design of Steel Frames, CRC Press (1992).

[9] S.L. Chan and P.P.T. Chui. Non-linear Static and Cyclic Analysis of Semi-rigid Steel Frames, Elsevier Science (2000).

DOI: 10.1016/b978-008042998-4/50003-x

[10] European Convention for Constructional Steelwork, Ultimate Limit State Calculation of Sway Frames with Rigid Joints, ECCS, Technical Working Group 8. 2, Systems, Publication No. 33(1983).

[11] J.Y.R. Liew. Advanced analysis for frame design, School of Civil Engineering, Purdue University, West Lafayette, IL(1992).
