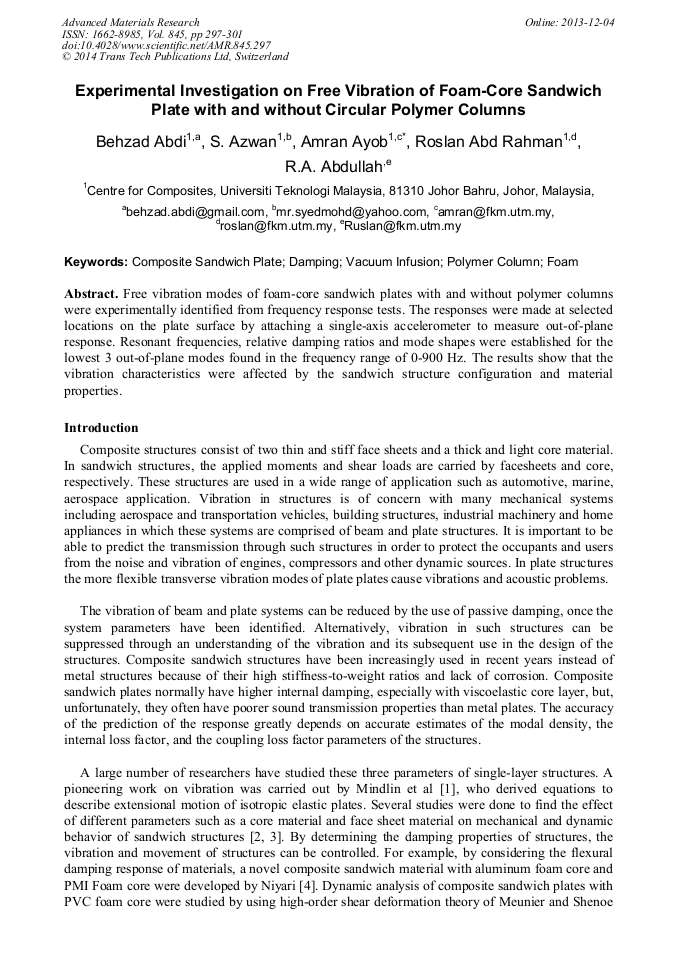

Experimental Investigation on Free Vibration of Foam-Core Sandwich Plate with and without Circular Polymer Columns

Abstract:

Free vibration modes of foam-core sandwich plates with and without polymer columns were experimentally identified from frequency response tests. The responses were made at selected locations on the plate surface by attaching a single-axis accelerometer to measure out-of-plane response. Resonant frequencies, relative damping ratios and mode shapes were established for the lowest 3 out-of-plane modes found in the frequency range of 0-900 Hz. The results show that the vibration characteristics were affected by the sandwich structure configuration and material properties.

• Periodical: Advanced Materials Research (Volume 845)
• Pages: 297-301
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.845.297
• Online since: December 2013
• Authors: Behzad Abdi, Syed Azwan, Ayob Amran*, Roslan Abdul Rahman, R.A. Abdullah
• Keywords: Composite Sandwich Plate, Damping, Foam, Polymer Column, Vacuum Infusion

References

[1] R. D. Mindlin, A. Schacknow and H. Deresiewicz, Flexural vibrations of rectangular plates, Journal of Applied Mechanics 23 (1956) 430-436.

DOI: 10.1115/1.4011349

[2] J. Sargianis, J. Suhr, Core material effect on wave number and vibrational damping characteristics in carbon fibre sandwich composites, Composites Science and Technology 72 (2012) 1493–1499.

DOI: 10.1016/j.compscitech.2012.06.024

[3] Q. Liu, Y. Zhao, Natural frequency analysis of a sandwich panel with soft core based on a refined shear deformation model, Composite Structures 72 (2006) 364–374.

DOI: 10.1016/j.compstruct.2005.01.006

[4] A.H. Niyari, Nonlinear finite element modelling investigation of flexural damping behaviour of triple core composite sandwich panels, Materials and Design 46 (2013) 842–848.

DOI: 10.1016/j.matdes.2012.11.008

[5] M. Meunier, R.A. Shenoe, Dynamic analysis of composite sandwich plates with damping modeled using high order shear deformation theory, Composite Structures 54 (2001) 243-254.

DOI: 10.1016/s0263-8223(01)00094-0

[6] J.M. Berthelot, M. Assarar, Y. Sefrani, A.E. El Mahi, Damping analysis of composite materials and structures, Composite Structures 85 (2008) 189–204.

DOI: 10.1016/j.compstruct.2007.10.024

[7] M. Matter, T. Gmür , J. Cugnoni, A. Schorderet, Identification of the elastic and damping properties in sandwich structures with a low core-to-skin stiffness ratio, Composite Structures 93 (2011) 331–341.

DOI: 10.1016/j.compstruct.2010.09.009
