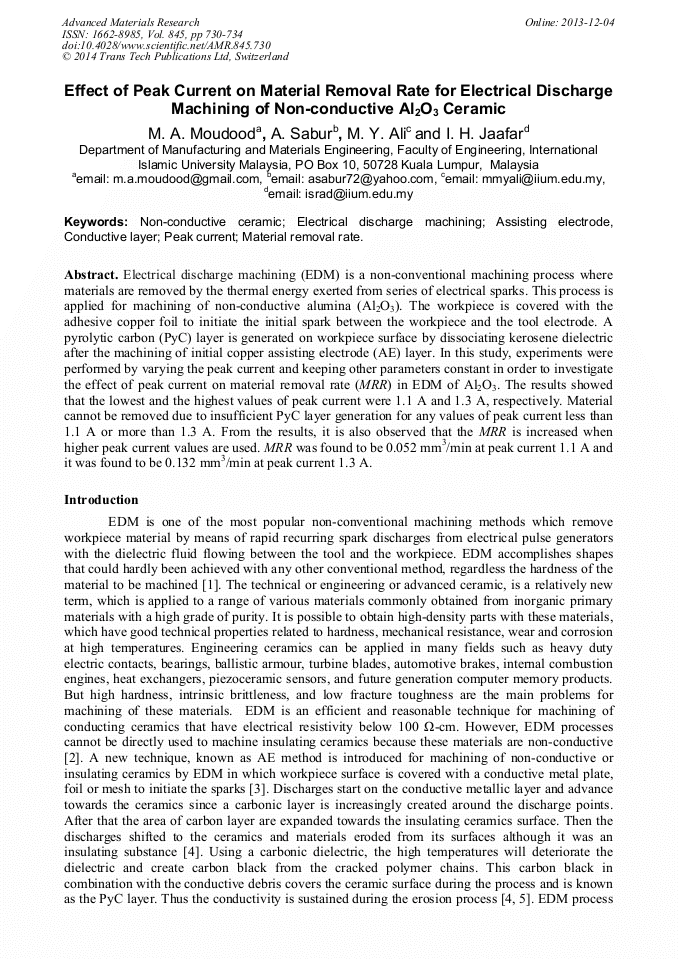

Effect of Peak Current on Material Removal Rate for Electrical Discharge Machining of Non-Conductive Al₂O₃ Ceramic

Abstract:

Electrical discharge machining (EDM) is a non-conventional machining process where materials are removed by the thermal energy exerted from series of electrical sparks. This process is applied for machining of non-conductive alumina (Al₂O₃). The workpiece is covered with the adhesive copper foil to initiate the initial spark between the workpiece and the tool electrode. A pyrolytic carbon (PyC) layer is generated on workpiece surface by dissociating kerosene dielectric after the machining of initial copper assisting electrode (AE) layer. In this study, experiments were performed by varying the peak current and keeping other parameters constant in order to investigate the effect of peak current on material removal rate (MRR) in EDM of Al₂O₃. The results showed that the lowest and the highest values of peak current were 1.1 A and 1.3 A, respectively. Material cannot be removed due to insufficient PyC layer generation for any values of peak current less than 1.1 A or more than 1.3 A. From the results, it is also observed that the MRR is increased when higher peak current values are used. MRR was found to be 0.052 mm³/min at peak current 1.1 A and it was found to be 0.132 mm³/min at peak current 1.3 A.

• Periodical: Advanced Materials Research (Volume 845)
• Pages: 730-734
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.845.730
• Online since: December 2013
• Authors: M.A. Moudood*, A. Sabur, Yeakub Ali Mohammad, I.H. Jaafar
• Keywords: Assisting Electrode, Conductive Layer, Electrical Discharge Machining (EDM), Material Removal Rate (MRR), Non-Conductive Ceramic, Peak Current

References

[1] P. Allen, X. Chen, Process simulation of micro electro-discharge machining on molybdenum, J. of materials processing tech. 186 (2007) 346-355.

DOI: 10.1016/j.jmatprotec.2007.01.009

[2] Y. J. Lin, Y. C. Lin, A. C. Wang, D. A. Wang, H. M. Chow, Machining Characteristics of EDM for Non-Conductive Ceramics Using Adherent Copper Foils, Advanced Materials Research. 154 (2011) 794-805.

DOI: 10.4028/www.scientific.net/amr.154-155.794

[3] Y. H. Liu, R. J. Ji, X. P. Li, L. L. Yu, H. F. Zhang, Electric discharge milling of insulating ceramics. Proceedings of the Institution of Mechanical Engineers, Part B: J. of Engineering Manufacture. 222 (2008), 361-366.

DOI: 10.1243/09544054jem970

[4] N. Mohri, Y. Fukuzawa, T. Tani, T. Sata, Some considerations to machining characteristics of insulating ceramics-towards practical use in industry, CIRP Annals-Manufacturing Technology. 51 (2002), 161-164.

DOI: 10.1016/s0007-8506(07)61490-5

[5] T. Hösel, P. Cvancara, T. Ganz, C. Müller, H. Reinecke, Characterisation of high aspect ratio non-conductive ceramic microstructures made by spark erosion. Microsystem Technologies. 17 (2011), 313-318.

DOI: 10.1007/s00542-011-1284-0

[6] A. Muttamara, Y. Fukuzawa, N. Mohri, T. Tani, Effect of electrode material on electrical discharge machining of alumina. J. of materials processing technology. 209 (2009), 2545-2552.

DOI: 10.1016/j.jmatprotec.2008.06.018

[7] Y. Fukuzawa, N. Mohri, T. Tani, A. Muttamara, Electrical discharge machining properties of noble crystals. J. of materials processing technology. 149 (2004), 393-397.

DOI: 10.1016/j.jmatprotec.2003.12.028

[8] R. Ji, Y. Liu, Y. Zhang, F. Wang, Z. Chen, X. Dong. Study on single-discharge machining characteristics of non-conductive engineering ceramics in emulsion with high open voltage and large capacitor. Proceedings of the Institution of Mechanical Engineers, Part B: J. of Engineering Manufacture. 225 (2011).

DOI: 10.1177/0954405411404630

[9] Y. F. Chen, Y. J. Lin, Y. C. Lin, S. L. Chen, L. R. Hsu, Optimization of electrodischarge machining parameters on ZrO2 ceramic using the Taguchi method. Proceedings of the Institution of Mechanical Engineers, Part B: J. of Engineering Manufacture, 224(2010).

DOI: 10.1243/09544054jem1437
