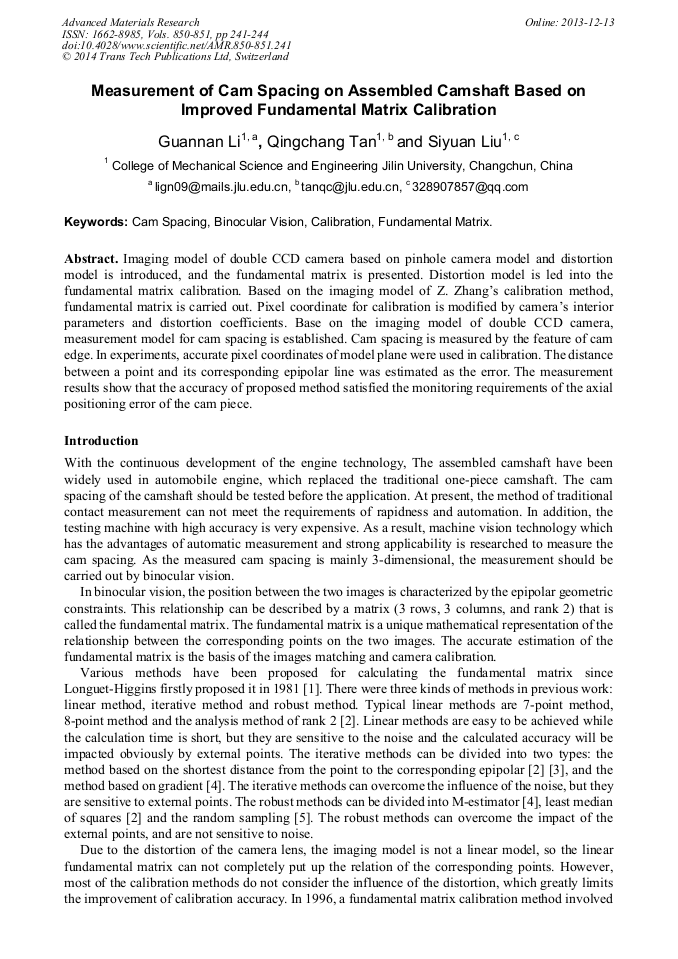

Measurement of Cam Spacing on Assembled Camshaft Based on Improved Fundamental Matrix Calibration

Abstract:

Imaging model of double CCD camera based on pinhole camera model and distortion model is introduced, and the fundamental matrix is presented. Distortion model is led into the fundamental matrix calibration. Based on the imaging model of Z. Zhangs calibration method, fundamental matrix is carried out. Pixel coordinate for calibration is modified by cameras interior parameters and distortion coefficients. Base on the imaging model of double CCD camera, measurement model for cam spacing is established. Cam spacing is measured by the feature of cam edge. In experiments, accurate pixel coordinates of model plane were used in calibration. The distance between a point and its corresponding epipolar line was estimated as the error. The measurement results show that the accuracy of proposed method satisfied the monitoring requirements of the axial positioning error of the cam piece.

• Periodical: Advanced Materials Research (Volumes 850-851)
• Pages: 241-244
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.850-851.241
• Online since: December 2013
• Authors: Guan Nan Li, Qing Chang Tan*, Si Yuan Liu
• Keywords: Binocular Vision, Calibration, Cam Spacing, Fundamental Matrix

References

[1] H.C. Longuet-Higgins: Nature, Vol. 293 (1981), p.133–135.

[2] Z. Zhang: Int. J. Comput. vision, Vol. 27 (2) (1998), p.161–198.

[3] J. Salvi: PhD Thesis. Universitat de Girona, Departament d'Electronica, Informatica i Automatica, (1997).

[4] R. Hartley and A. Zisserman: Multiple View Geometry in Computer Vision. Cambridge University Press, London, (2000).

[5] P.H.S. Torr and D.W. Murray: Int. J. Comput. vision, Vol. 24 (3) (1997), p.271–300.

[6] Z. Zhang: In International Conference on Pattern Recognition, Vol. I, pp.407-411.

[7] Zhang Z Y: IEEE T. Pattern Anal., Vol. 22(11) (2000), p.1330–1334.
