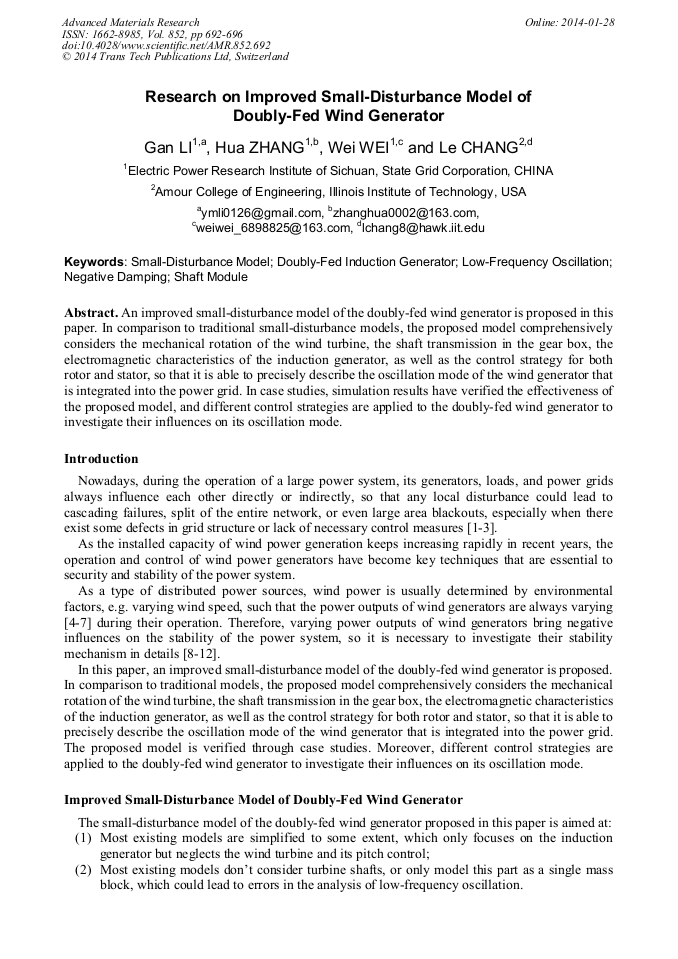

Research on Improved Small-Disturbance Model of Doubly-Fed Wind Generator

Abstract:

An improved small-disturbance model of the doubly-fed wind generator is proposed in this paper. In comparison to traditional small-disturbance models, the proposed model comprehensively considers the mechanical rotation of the wind turbine, the shaft transmission in the gear box, the electromagnetic characteristics of the induction generator, as well as the control strategy for both rotor and stator, so that it is able to precisely describe the oscillation mode of the wind generator that is integrated into the power grid. In case studies, simulation results have verified the effectiveness of the proposed model, and different control strategies are applied to the doubly-fed wind generator to investigate their influences on its oscillation mode.

• Periodical: Advanced Materials Research (Volume 852)
• Pages: 692-696
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.852.692
• Online since: January 2014
• Authors: Gan Li, Hua Zhang, Wei Wei, Le Chang
• Keywords: Double Fed Induction Generation (DFIG), Low Frequency Oscillation (LFO), Negative Damping, Shaft Module, Small-Disturbance Model

References

[1] W. Wei: Study on Mechanism and Suppression of Low Frequency Oscillation due to Large-scale Integration of DFIG Wind Farms in Power System [Dissertation] (Sichuan University, China 2012).

[2] F. Li and K. Xie: Electric Power Vol. 40 (2007), pp.90-95.

[3] Y. Feng: Energy of China Vol. 26 (2004), pp.38-43.

[4] L. Chen: Study on Integration of Distributed Generation into Power System [Dissertation] (Zhejiang University, China 2007).

[5] J. Wang, X. Li and X. Qiu: Auto. of Electr. Power Syst. Vol. 29 (2006), pp.90-95.

[6] X. Guo, S. Ma, H. Shen and J. Ding: Auto. of Electr. Power Syst. Vol. 36 (2012), pp.107-112.

[7] H. Ni, G T. Heydt and L. Mili: IEEE Trans. on Power Syst. Vol. 17 (2002), pp.1123-1131.

[8] B. Chaudhuri and B.C. Pal: IEEE Trans. on Power Syst. Vol. 19 (2004), pp.499-506.

[9] H. Wu, H. Ni and G.T. Heydt: Proc. IEEE Power Eng. Society Winter Meeting Vo1. 2 (2002), pp.1511-1516.

[10] X. Jing, D. Tan and Y. Wang: IEEE Trans. on Power Syst. Vol. 49 (2004), pp.1192-1195.

[11] L. M. Fernandez, C. A. Garcia and F. Jurado: Energy Vol. 33 (2008), pp.1438-1452.

[12] W. Wei, X. Li, Q. Li and W. Gu: Power Syst. Tech. Vol. 33 (2009), pp.124-129.

[13] Q. Ye: Control Technology of Wind Power Generators (China Machine Press, China 1998).

[14] Z. Hao: Transient Characteristics of DFIG and Its Impact on the Power System [Dissertation] (Tianjin University, China 2012).
