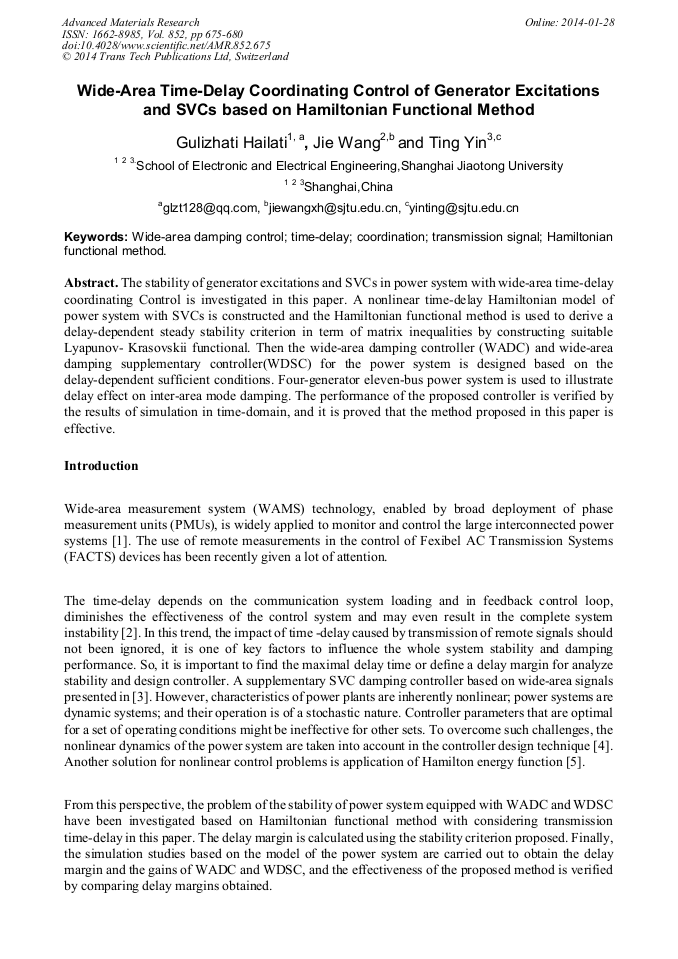

Wide-Area Time-Delay Coordinating Control of Generator Excitations and SVCs Based on Hamiltonian Functional Method

Abstract:

The stability of generator excitations and SVCs in power system with wide-area time-delay coordinating Control is investigated in this paper. A nonlinear time-delay Hamiltonian model of power system with SVCs is constructed and the Hamiltonian functional method is used to derive a delay-dependent steady stability criterion in term of matrix inequalities by constructing suitable Lyapunov-Krasovskii functional. Then the wide-area damping controller (WADC) and wide-area damping supplementary controller (WDSC) for the power system is designed based on the delay-dependent sufficient conditions. Four-generator eleven-bus power system is used to illustrate delay effect on inter-area mode damping. The performance of the proposed controller is verified by the results of simulation in time-domain, and it is proved that the method proposed in this paper is effective.

• Periodical: Advanced Materials Research (Volume 852)
• Pages: 675-680
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.852.675
• Online since: January 2014
• Authors: Gulizhati Hailati, Jie Wang, Ting Yin
• Keywords: Coordination, Hamiltonian Functional Method, Time-Delay, Transmission Signal, Wide-Area Damping Control

References

[1] A. J. F. Hauer, D. J. Trudnowski, and J. G. DeSteese, A perspective on wams analysis tools for tracking of oscillatory dynamics, in Power Engineering Society General Meeting, IEEE, 2007, pp.1-10.

DOI: 10.1109/pes.2007.386186

[2] H. Wu et al., The impact of time delay on robust control design in power systems, in Proc. IEEE PES Winter Meeting, 2002, vol. 2, p.27–31.

[3] Y. Chang, Z. Xu, G. Cheng, and J. Xie, A novel SVC supplementary controller based on wide area signals, Electric Power Systems Research, v 77, n 12, Oct. 2007, pp.1569-1574.

DOI: 10.1016/j.epsr.2006.11.002

[4] T. Zabaiou, L. -A. Dessaint, F. A. Okou, and R. Grondin, Wide-area measurements based coordination of SVCs and synchronous generators, in Power and Energy Society General Meeting - Conversion and Delivery of Electrical Energy in the 21st Century, 2008 IEEE, 2008, pp.1-8.

DOI: 10.1109/pes.2008.4596419

[5] R. Yang, Y. Wang, Stability analysis for a class of nonlinear time-delay systems via Hamiltionian functional method,. Science China: Information Sciences, 2012, vol. 55, no. 5, pp.1218-1228.

DOI: 10.1007/s11432-012-4573-z

[6] P. Kundur, Power System Stability and Control. New York: McGrawHill, (1994).
