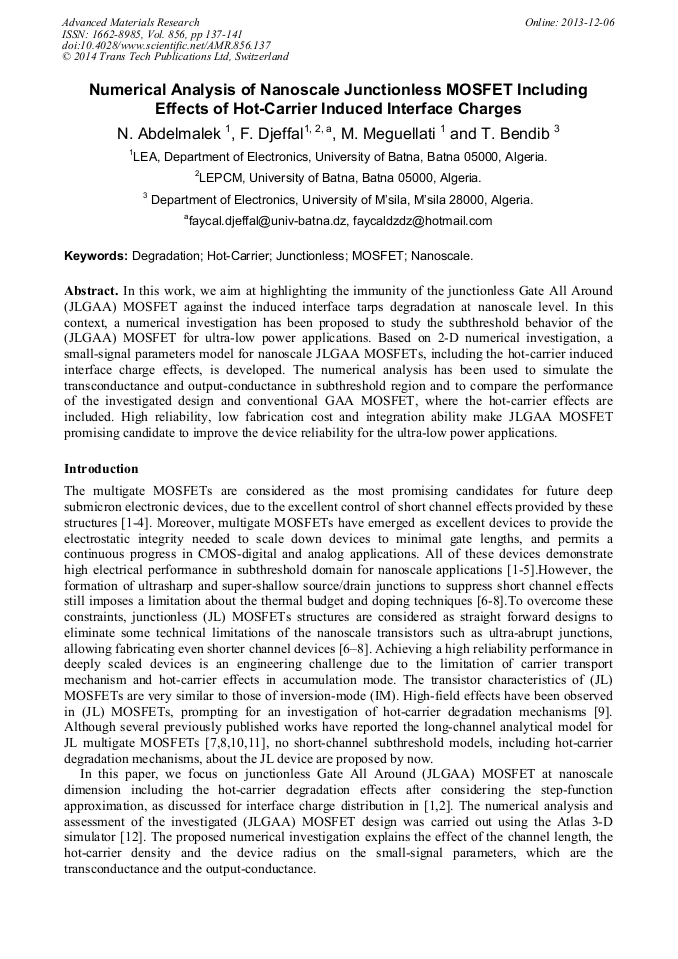

Numerical Analysis of Nanoscale Junctionless MOSFET Including Effects of Hot-Carrier Induced Interface Charges

Abstract:

In this work, we aim at highlighting the immunity of the junctionless Gate All Around (JLGAA) MOSFET against the induced interface tarps degradation at nanoscale level. In this context, a numerical investigation has been proposed to study the subthreshold behavior of the (JLGAA) MOSFET for ultra-low power applications. Based on 2-D numerical investigation, a small-signal parameters model for nanoscale JLGAA MOSFETs, including the hot-carrier induced interface charge effects, is developed. The numerical analysis has been used to simulate the transconductance and output-conductance in subthreshold region and to compare the performance of the investigated design and conventional GAA MOSFET, where the hot-carrier effects are included. High reliability, low fabrication cost and integration ability make JLGAA MOSFET promising candidate to improve the device reliability for the ultra-low power applications.

• Periodical: Advanced Materials Research (Volume 856)
• Pages: 137-141
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.856.137
• Online since: December 2013
• Authors: N. Abdelmalek, F. Djeffal, M. Meguellati, T. Bendib
• Keywords: Degradation, Hot-Carrier, Junctionless, MOSFET, Nanoscale

References

[1] F. Djeffal, T. Bendib: Microelectronics Journal, 42 (2011), 661-666.

[2] F. Djeffal, T. Bentrcia, M.A. Abdi, T. Bendib: Microelectronics Reliability, 51 (2011), 550-555.

DOI: 10.1016/j.microrel.2010.10.002

[3] A. Tsompatzoglou, C.A. Dimitriadis, R. Clerc, Q. Rafhay, G. Pananakakis, G. Ghibaudo: IEEE Trans Electron Devices, 54 (2007), 1943-(1952).

DOI: 10.1109/ted.2007.901075

[4] M. Meguellati, F. Djeffal: Nuclear Instruments and Methods in Physics Research Section A, 683 (2012), 24–28.

[5] T. Bendib, F. Djeffal: IEEE Trans on Electron Devices, 58 (2011), 3743–3750.

[6] T-K Chiang: Trans on Electron Devices, 59 (2012), 3127-3129.

[7] C. -W. Lee, A. Afzalian, N. D. Akhavan, R. Yan, I. Ferain, and J. P. Colinge: Appl. Phys. Lett, 94 (2009), 053511.

DOI: 10.1063/1.3079411

[8] C. W. Lee, A. Borne, I. Ferain, A. Afzalian, R. Yan, N. D. Akhavan, P. Razavi, and J. P. Colinge: IEEE Trans. Electron Devices, 57 (2010), 620–625.

DOI: 10.1109/ted.2009.2039093

[9] Lee CW, Nazarov AN, Ferain I, Dehdashti Akhavan N, Yan R, Razavi P, et al: Appl Phys Lett, 96 (2010), 102–106.

[10] J. P. Duarte, S. J. Choi, D. I. Moon, and Y. K. Choi: IEEE Electron Device Lett, 32 (2011), 704–706.

[11] E. Gnani, A. Gnudi, S. Reggiani, and G. Baccarani: IEEE Trans. Electron Devices, 58 (2011), 2903–2910.

DOI: 10.1109/ted.2011.2159608

[12] Atlas User's Manual: Device Simulation Software, (2008).
